Key Specifications

System

• System Type: Self Powered 18" subwoofer

Performance

• Maximum SPL Output: 134 dB peak
• Frequency Range (-10 dB): 30 Hz - 103 Hz
• Frequency Response (±3 dB): 35 Hz – 87 Hz

Connectivity

• Input Connectors: Two Balanced female XLR/ 1/4” combo connectors
• Input Impedance: 20K Ohms (balanced)

Signal & Control

• Signal: Green LED indicates signal present
• Power: Blue indicates system has power and ready
• Dynamic Control (Input): dbx Type IV™ limiter circuit
• System Low Pass: 80 Hz
• Loop out Crossover Frequency: 80Hz Digital 24db/octave Linkwitz-Riley Filter

Power & Amplifier

• Design: Highly efficient Class-D amplifier
• Power Rating: 1500W
• AC Power Input: 100V - 240V ~ 50/60 Hz

Driver

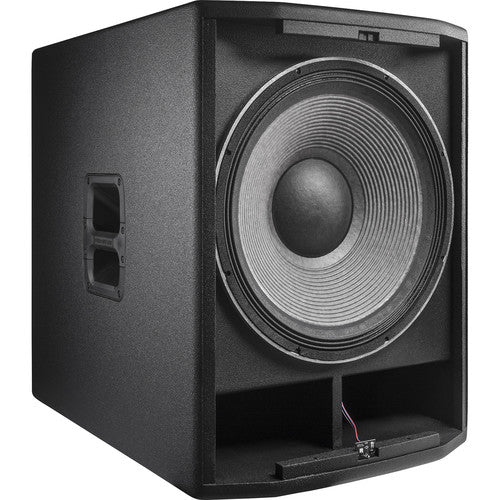

• LF Driver: 1 x JBL 2278G 460 mm (18 in) woofer

Physical

• Enclosure: Rectangular, 18 mm, birch-poplar mix
• Transport: 2 x injection molded handles with backing cup
• Finish: Obsidian DuraFlex™ finish
• Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
• Dimensions (H x W x D): 692 mm x 523 mm x 724 mm (27.26 in x 20.6 in x 28.5 in)
• Net Weight: 36.28 kg (80.0 lb)
• Gross Weight: 45.0 kg (100.0 lb)
