Key Specifications

Family

Contractor Series 240V

Line Voltage

240 Volts

Maximum AC Current Rating

10 Amps, 220–240 VAC @ 50–60 Hz (Thermal Breaker)

AC Cord

1 mm² × 3, 2.5 m Length
IEC-C13 (Female) to CEE-7/7 Schuko Plug

AC Inlet

IEC-C14 (Male) with Metal Wire Retainer Clip

AC Outlets

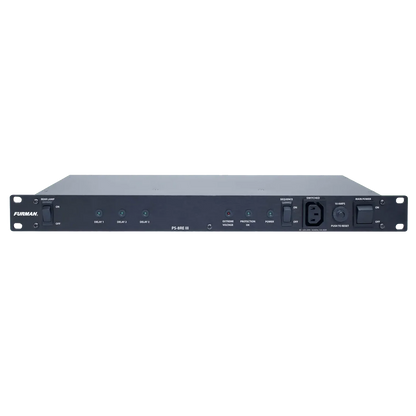

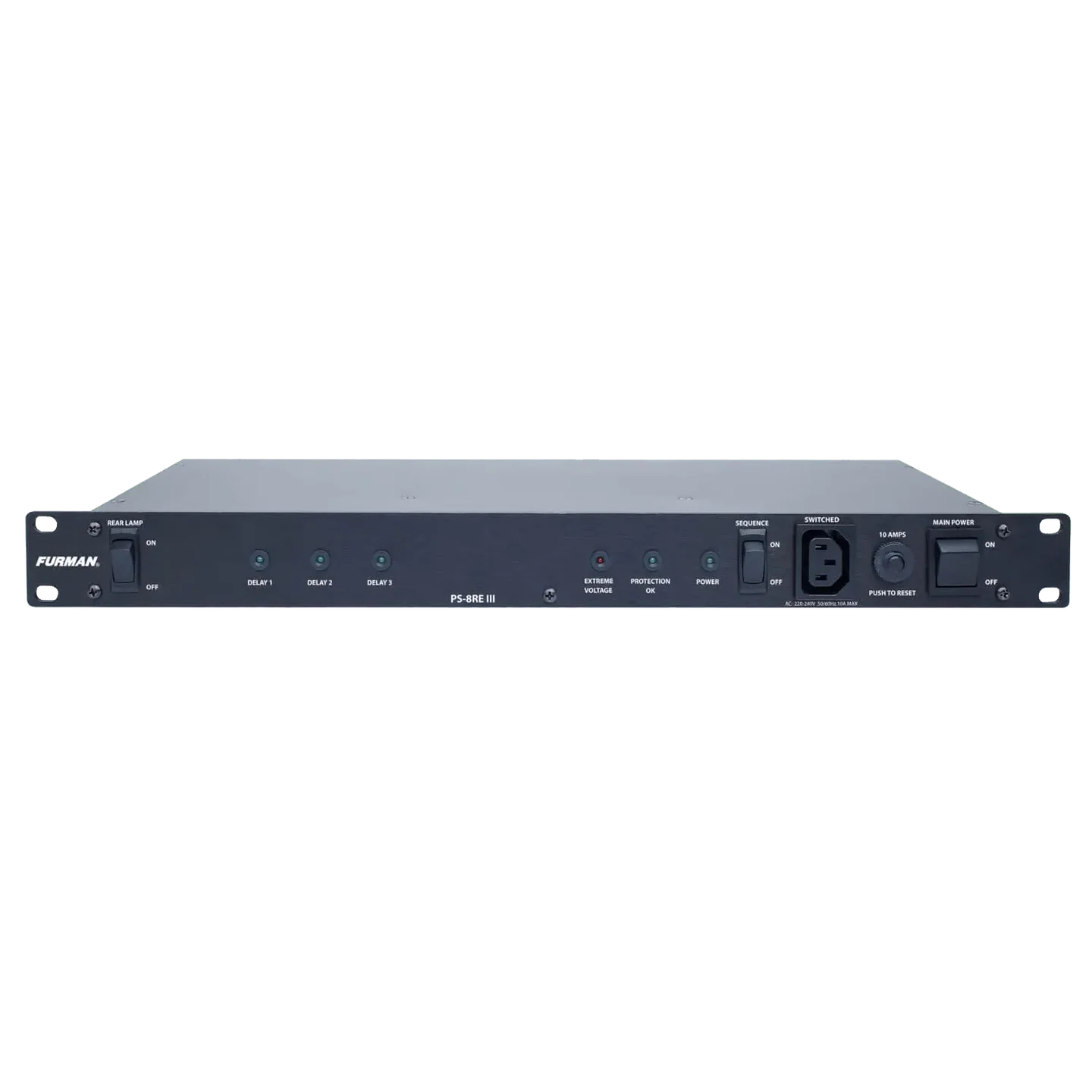

Front Panel: 1 Switched IEC C-13 Convenience Outlet

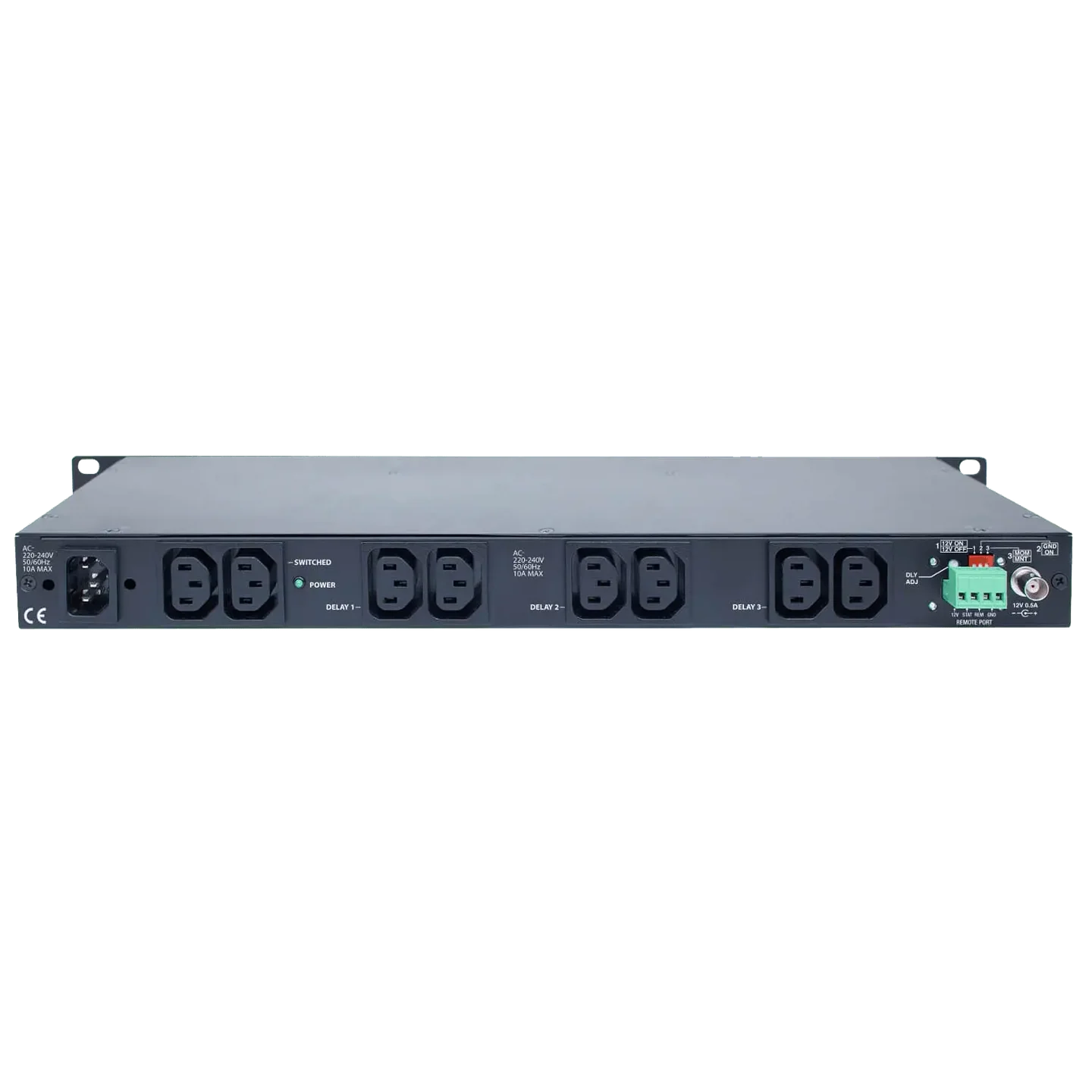

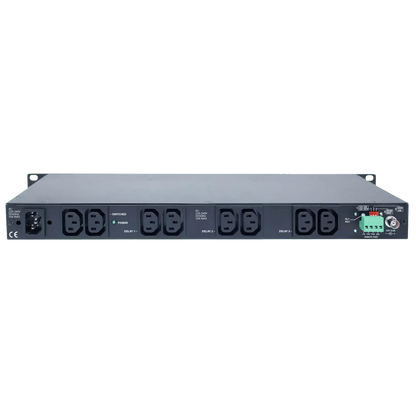

Rear Panel: 2 Switched IEC C-13 (1 Duplex)
6 Sequenced IEC C-13 (3 Duplexes, Each Controlled by Separate Relay)

Spike Protection Mode

Line to Neutral, Zero Ground Leakage

Spike Clamping Voltage

376 VAC Peak @ 6,000 V / 3,000 A

Response Time

1 Nanosecond

Maximum Surge Current

6,500 Amps

AC Over-Voltage Protection

EVS, 275 VAC ± 5 VAC

AC Over-Voltage Reset Mode

Auto

Series Multi-Stage Protection

Yes

AC Filtering

LiFT

Noise Attenuation

10 dB @ 10 kHz
40 dB @ 100 kHz
50 dB @ 500 kHz

Dimensions (L × W × H)

21.9 × 12.2 × 3.5 Inches

Weight

8.25 lbs

UPC

654061041085
