Key Specifications

Product Model

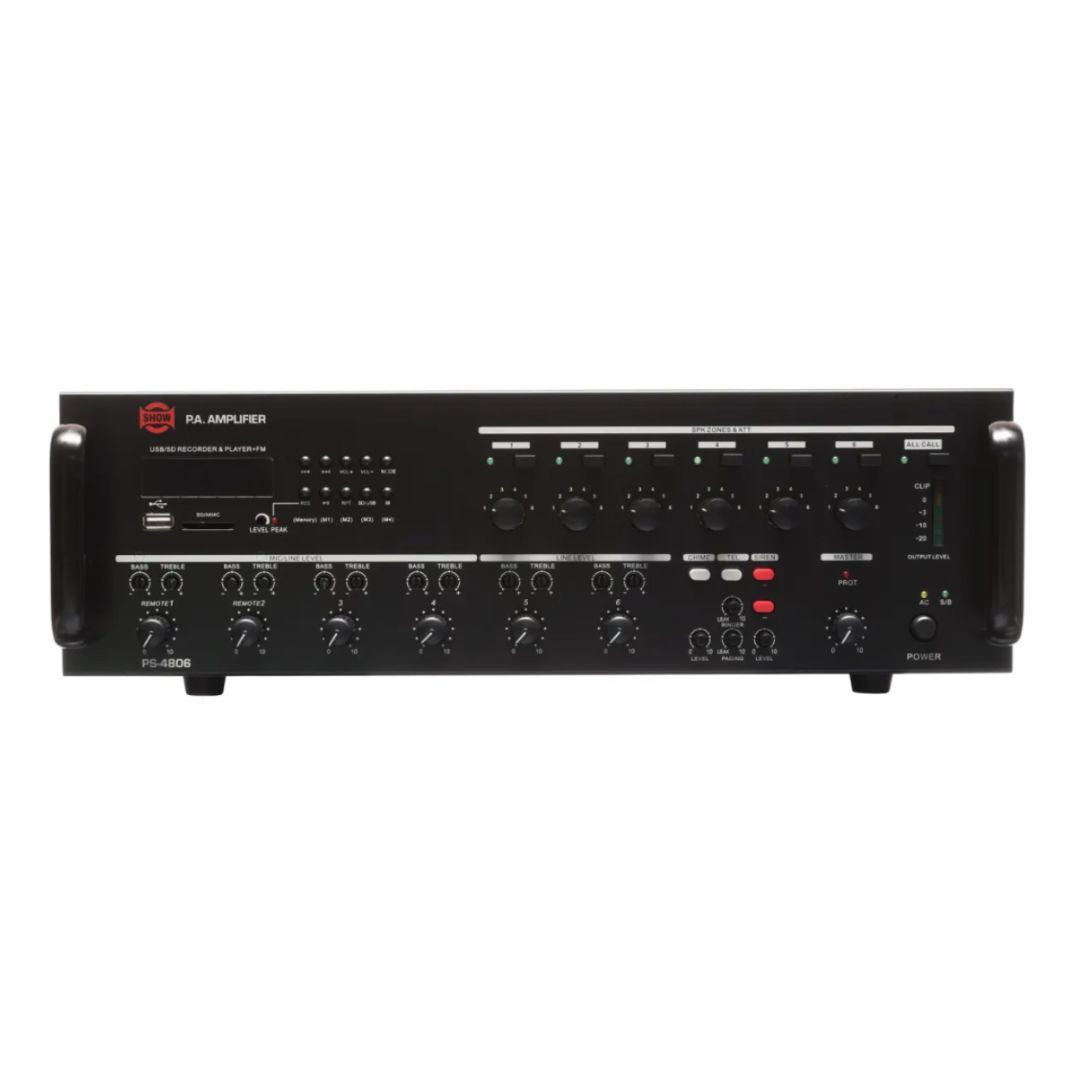

PS-4806

AC Power Input

110-240V ~ 50Hz/60Hz

Power Consumption

680 W

Total Power Output

480 W @ 4 Ω (±0.5%)

Zone Power Output

80 W @ 70V or 100V (6 Zones)

Audio & Performance Specifications

Input Sensitivity

MIC 1-4: -52 dBV
LINE 1-4: -10 dBV
LINE 5-6: -6 dBV
Telephone Emergency: -12 dBV

Signal-to-Noise Ratio (S/N)

MIC: 60 dB | LINE: 70 dB (20 Hz - 20 kHz)

Frequency Response

80 Hz to 16 kHz (-3 dBV)

Total Harmonic Distortion (THD+N)

<1%

Tone Control

Bass: ±10 dB @ 100 Hz | Treble: ±10 dB @ 10 kHz

Phantom Power Supply

24V DC (Balanced MIC Inputs)

Rec / Pre Out / Amp In Level

1V (±0.2 dBV)

Media Player, Encoding & Radio Specifications

MP3 Decoder (USB / SD)

Supports USB Full Speed (12Mbps), SDHC, MMC, Mini-SD, Micro-SD (<32GB recommended)
File Systems: FAT12, FAT16, FAT32
Formats: MP3, WMA, AAC (Priority: SD > USB)

MP3 Encoder (USB / SD Recording)

Format: MP3 (MPEG1 Layer3) | Sample Rate: 48 kHz | Bit Rate: 320 kbps

FM Tuner

Frequency Range: 87.5 - 108.0 MHz (Step: 100 kHz)

Chime & Message Audio

MP3 Format | Sample Rate: 44.1 kHz | Bit Rate: 22 kbps, 16-bit

Controls & Connectivity

Front Panel Controls

4x MIC & 2x Line Input Volume/Treble/Bass Controls, Chime Volume & Switch, Tel. Ringer & Switch, Siren Volume & 2x Selectors, Master Volume, 6x Zone Volume & Selector Switches, All-Zone Switch, MP3+FM Player Controls

Rear Panel Connections

4x MIC Inputs with Gain Controls & Phantom Power Switches, 2x Line Inputs, Rec Out, Pre Out, Amp In, PM-01 Input, PM-06 Input, FM Antenna Terminal, USB Port & Switch, External Control Inputs, 6x Zone Outputs, 4-16 Ω Outputs, Tel. Ringer & Input, 100V Input, 24V DC Output, Power Remote Control, AC Inlet

Dimensions & Physical Specifications

Item Dimensions (W×D×H)

444mm x 367mm x 130mm (17.48" x 14.45" x 5.12")

Net Weight

15.1 kg (33.29 lbs)
