Key Specifications

Image Sensor

1/2.8"-Type CMOS

Effective Sensor Resolution

2.07 Megapixel

Max Optical Zoom

30x

Max Digital Zoom

10x

Max Video Output

via HDMI / SDI (BNC): 1920 × 1080

Max Recording Modes

No

Broadcast Output

NTSC

IP Streaming

ONVIF / RTMP / RTSP / SRT / TCP, 1920 × 1080

Wireless

IR

PoE Support

Yes: PoE 802.3af

Mounting

1 × 1/4"-20 Female for Tripod

Imaging

Image Sensor

1/2.8"-Type CMOS

Effective Sensor Resolution

2.07 Megapixel

Focus Control

Autofocus

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

Flip / Mirror Support

Image Flip

White Balance

Range: 3000 to 7000K; Presets: Auto, Manual, One Push

Lens

Focal Length

4.3 to 129mm

Max Optical Zoom

30x

Max Digital Zoom

10x

Field of View

65.1 to 2.34°

Maximum Aperture

f/1.6 to 4.7

Video Capture

Video Output

via HDMI / SDI (BNC): 1920 × 1080

Internal Recording

No

Broadcast Output

NTSC

IP Streaming

ONVIF / RTMP / RTSP / SRT / TCP, 1920 × 1080

Control

Presets

255

Pan/Tilt

Pan: 340° (-170 to 170°) at 0.1 to 180°/s
Tilt: 120° (-30 to 90°) at 0.1 to 80°/s

Networking

Wireless

IR

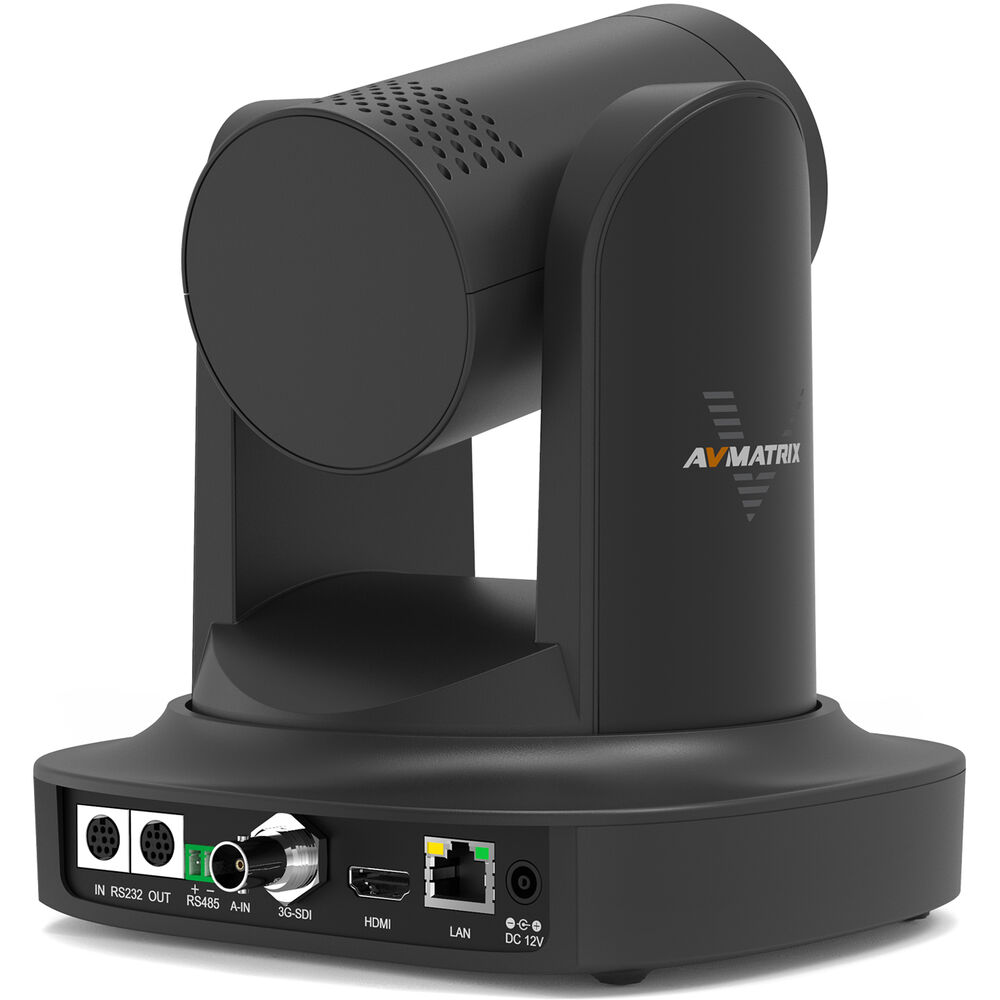

Interface

Video I/O

1 × BNC (3G-SDI) Output, 1 × HDMI Output

Audio I/O

1 × 3.5 mm TRS Stereo Line Input

Other I/O

1 × RJ45 (LAN) Control, 1 × Mini-DIN 8-Pin (RS-232) Control Input, 1 × Mini-DIN 8-Pin (RS-232) Control Output, 1 × Block (RS-485) Control Input

Built-In Microphone

No

Built-In Speaker

No

Power

PoE Support

Yes: PoE 802.3af

Power I/O

1 × Barrel Input

Power Consumption

Device: 12 VDC at 1 A (12 W)

Environmental

Operating Conditions

14 to 122°F / -10 to 50°C at 20 to 80% Humidity

Storage Conditions

14 to 140°F / -10 to 60°C at 20 to 95% Humidity

General

Mounting

1 × 1/4"-20 Female for Tripod

Dimensions (W × H × D)

6.7 × 7.1 × 6.7" / 170 × 180.31 × 170 mm

Weight

2.76 lb / 1.25 kg (Body Only)

Packaging Information

Package Weight

4.885 lb

Box Dimensions (L × W × H)

10.5 × 9.8 × 9.2"
