Key Specifications

Mix Effects

Effect Types

Transition

Processing

Switching Type

Pushbutton, T-Bar, Scroll Wheel

Processing Resolution

1080p

Input

Video Inputs

2 × HDMI, 4 × BNC (3G-SDI)

Input Video Format

HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV): 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps, 720p at 23.98/24/25/29.97/30/50/59.94/60 fps, 576p at 50 fps, 576i / 625 lines at 50 fps

SDI (10-Bit 4:2:2 YUV): 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps, 1080PsF at 23.98/24/25/29.97/30 fps, 720p at 23.98/24/25/29.97/30/50/59.94/60 fps

Audio Inputs

1 × 3.5 mm TRS Stereo, 1 × 2RCA Analog

Output

Video Outputs

1 × HDMI (Program), 2 × BNC (3G-SDI) (Program), 1 × USB-C

Output Video Format

HDMI / SDI: 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps

USB-C: WUXGA (1920 × 1200), 1080p, WUXGA+ (1680 × 1050), UXGA (1600 × 1200), WXGA+ (1440 × 900), FWXGA (1366 × 768), SXGA (1280 × 1024), 1280 × 960, WXGA (1280 × 800), 1280 × 720 (Non-Standard WXGA), XGA (1024 × 768), 1024 × 576, 960 × 540, 856 × 480, SVGA (800 × 600), 576i / 625 lines, 720 × 480, VGA (640 × 480), 640 × 360

Audio Outputs

1 × 3.5 mm TS Stereo, 1 × 2RCA Analog

Multiview Output

6-Way Multiview via HDMI, SDI

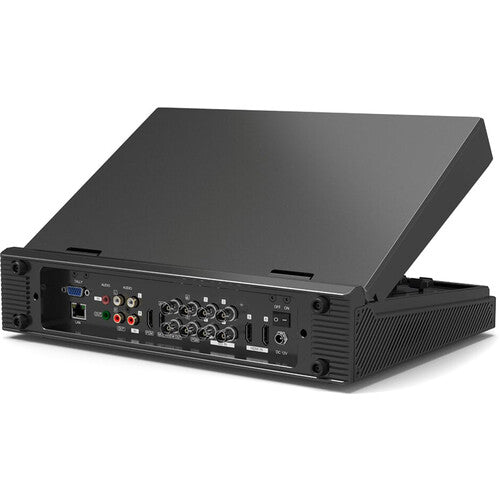

Connectivity

Other I/O

1 × BNC Output, 1 × DE-15/DB-15 Tally, 1 × RJ45 LAN

Video Standard Compliance

SMPTE 259M / 292M / 424M

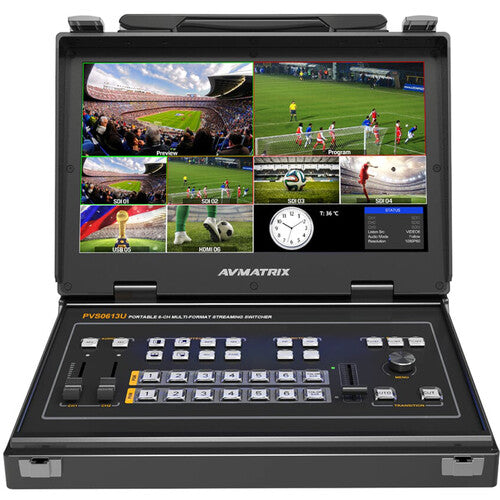

Display

Display Size

13.3"

Screen Resolution

1920 × 1080

Hardware

OS Compatibility

Windows 7 or Later, macOS 10.8 or Later, Linux 2.6 or Later

Wireless

No

Power

Power I/O

1 × Barrel Connector (12 VDC at 2 A) Input

Power Consumption

25 W

General

Operating Conditions

12 to 92°F / -20 to 60°C at 20 to 70% Humidity

Storage Conditions

-22 to 158°F / -30 to 70°C

Dimensions

13 × 9.6 × 2.6" / 330 × 244 × 67 mm

Weight

8.8 lb / 4 kg

Packaging Information

Package Weight

11.405 lb

Box Dimensions

15.2 × 14.5 × 5"
