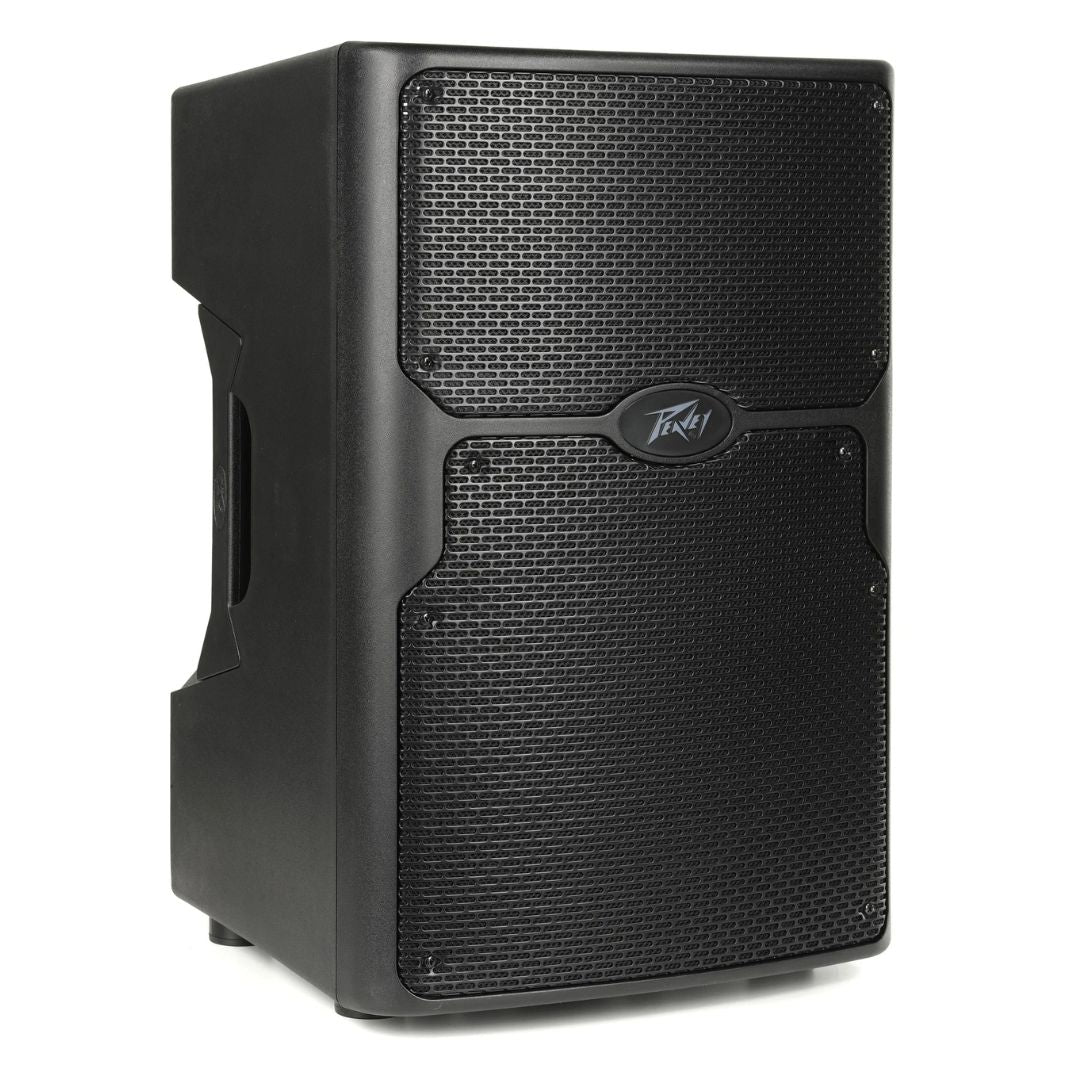

PVX 12

Bluetooth Powered Speaker
2-way bi-amped enclosure yields 980W of peak dynamic power
RX14TM compression driver features a 1.4-inch titanium diaphragm for reliable highs
12-inch woofer includes 2 3/8-inch voice coil and 50-ounce magnet produce booming bass
Precision-engineered housing reinforces low-end resonance with thick walls and greater durability
Asymmetrical horn design aims output down 10 degrees to enrich audience experience

PEAVY

₱11,995.00 VAT INC.

₱11,995.00

SOLD BY: PIECE/S

Product Code: SKU:PEAV-PVX12-CHN-3380

Bluetooth Powered Speaker
2-way bi-amped enclosure yields 980W of peak dynamic power
RX14TM compression driver features a 1.4-inch titanium diaphragm for reliable highs
12-inch woofer includes 2 3/8-inch voice coil and 50-ounce magnet produce booming bass
Precision-engineered housing reinforces low-end resonance with thick walls and greater durability
Asymmetrical horn design aims output down 10 degrees to enrich audience experience

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

PEAVY PVX 12

Key Specifications
Powered	Yes
Power Configuration	Bi-Amped
Channels	3-Channel Mixer
LF Driver Size	12" Woofer
HF Driver Size	1.4" Titanium Diaphragm
LF Driver Power Amplifier	840 W
HF Driver Power Amplifier	140 W
Total Power	980 W (Peak)

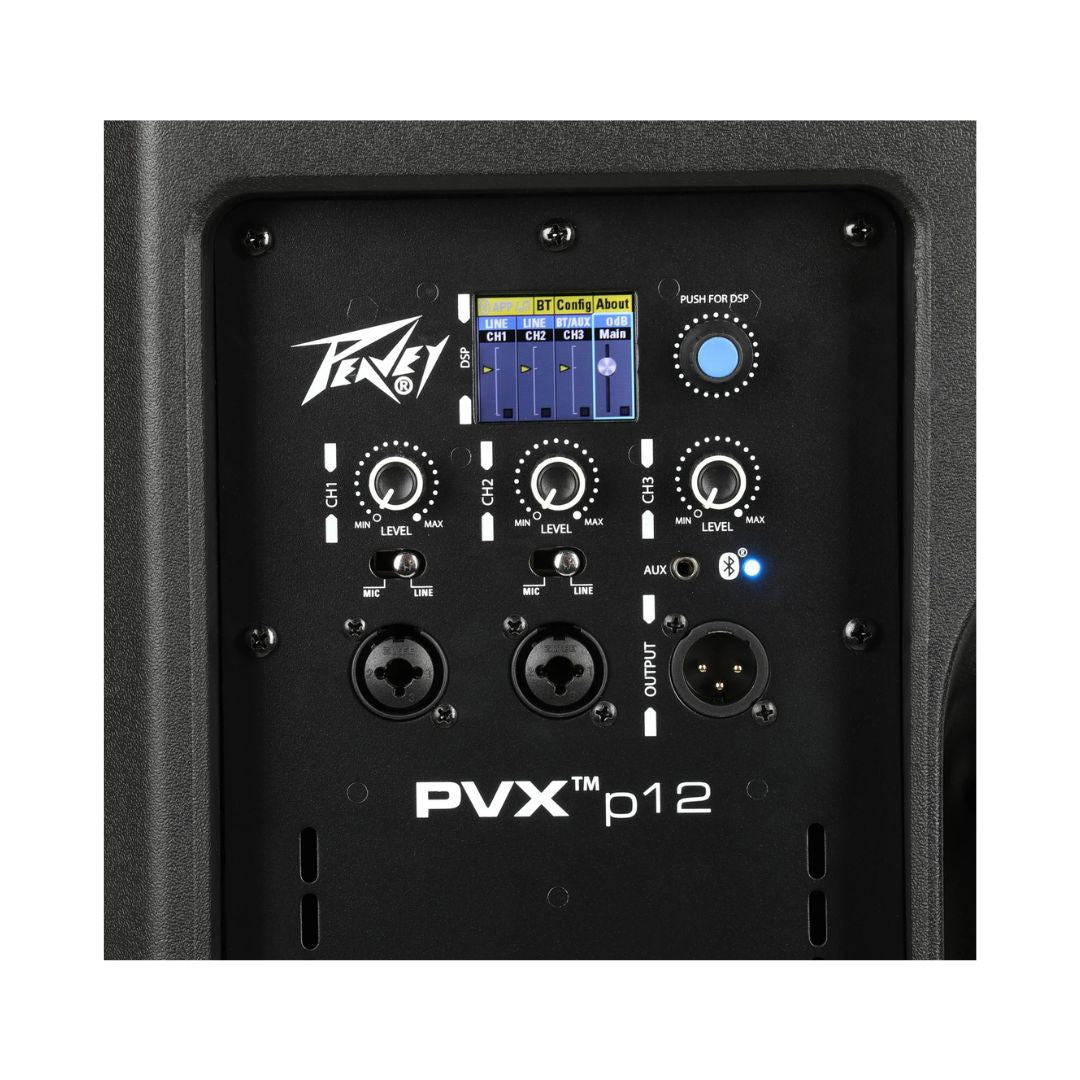

Connectivity
Inputs	2 × XLR-1/4" Combo Inputs 1 × 1/8" TRS Input
Outputs	1 × XLR Output
Bluetooth	Yes (Audio Input)
Performance
Frequency Range	54 Hz – 20 kHz
Frequency Response	63 Hz – 20 kHz (±3 dB)
Crossover Frequency	24 dB/Octave @ 1800 Hz
Maximum Peak SPL	127 dB SPL @ 1 m
Horizontal Coverage Angle	100°
Vertical Coverage Angle	50°
Signal Processing	DSP, 24-Bit / 48 kHz
Software	PVXp iOS App
Physical
Enclosure Material	Black Injection-Molded Plastic
Mounting Options	Pole Mount, Floor Wedge
Power Source	Standard IEC AC Cable
Height	24.5"
Width	16.1"
Depth	15"
Weight	42 lb
Manufacturer Part Number	03620470
