Key Specifications

Form Factor / Type

Rackmount

Number of Amplifier Channels

2

Load Impedance / Voltage Support

8 Ohms

Power Rating per Channel

2 × 600 W at 2 Ohms
2 × 1050 W at 4 Ohms
2 × 800 W at 8 Ohms

Amplifier Class

Class-D

Performance

Frequency Response

20 Hz – 20 kHz ±1 dB (at 1 W, 8 Ohms)

SNR / Noise

101 dB SNR

THD / Distortion

≤ 0.1% THD+N (1 kHz, at 10 W)
≤ 0.3% THD+N (1 kHz, at 1/2 Power)

Crosstalk

< -60 dB

Signal Processing

AD / DA Conversion

24-Bit / 48 kHz

DSP

Yes

Audio Delay

Adjustable up to 74 ms

EQ & Filters

6-Band Parametric EQ, High-Pass Filter, Low-Pass Filter

Dynamics

Limiter

Connectivity

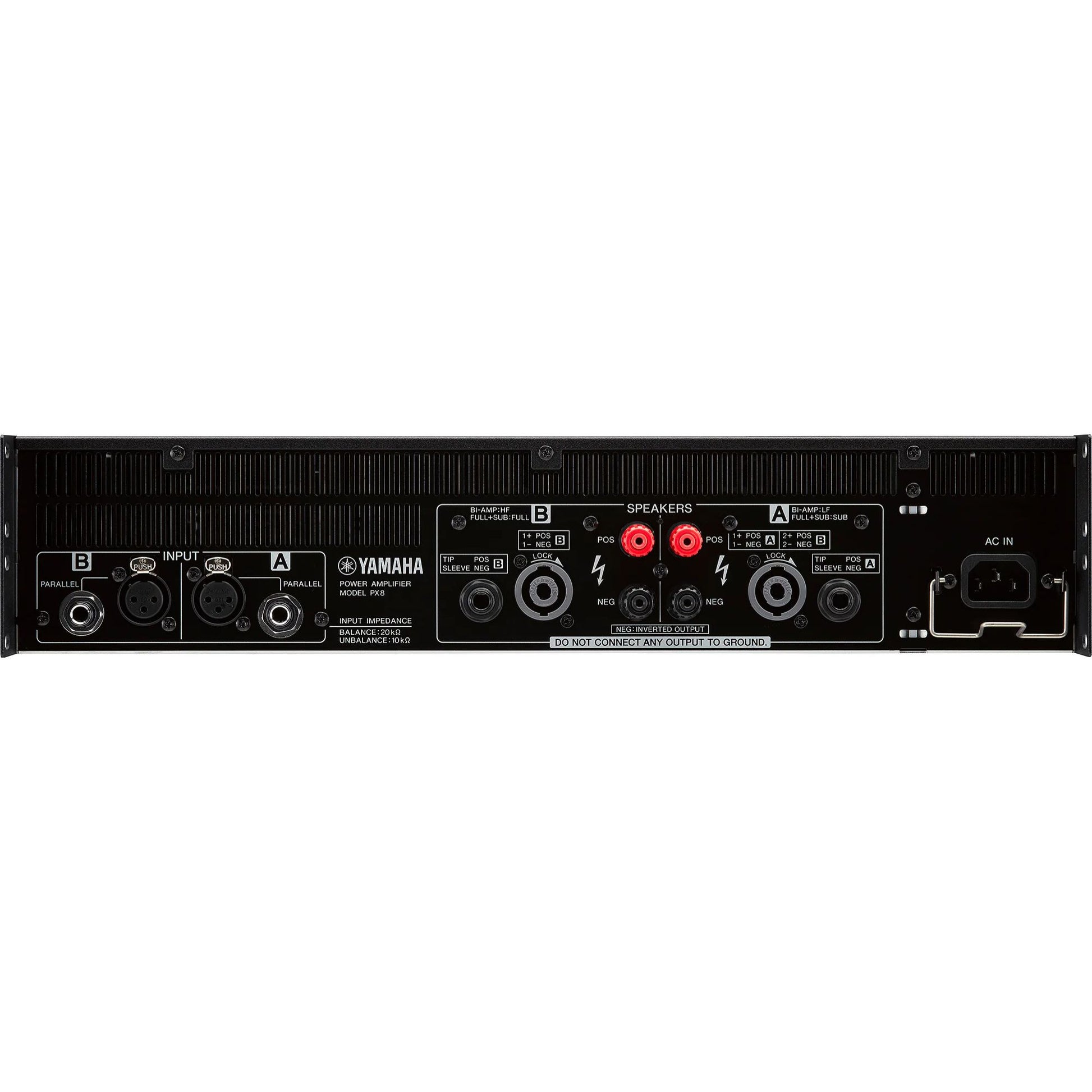

Analog Audio I/O

2 × XLR 3-Pin Input
2 × 1/4" TRS Input
2 × speakON NL4 Output
2 × Binding Post Pair Output
2 × 1/4" TS Output

Digital Audio I/O

No

Network I/O

No

USB I/O

1 × USB-A

Phantom Power

No

Wireless

No

Power

Input Power

120 VAC, 60 Hz

AC Power Connector

1 × IEC

Power Consumption

60 W (Idle), 280 W (1/8 Power at 4 Ohms)

Physical

Display

Backlit LCD

Rackmount Size

2 U

Cooling

2 × Fan (Variable Speed)

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions (H × W × D)

3.46 × 15.25 × 18.9" / 88 × 387.4 × 480 mm

Weight

15.87 lb / 7.2 kg

Packaging Info

Package Weight

20.5 lb

Box Dimensions (L × W × H)

21.75 × 21.75 × 7.5"
