Key Specifications

System Type

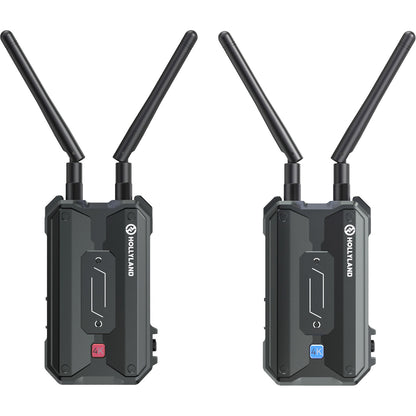

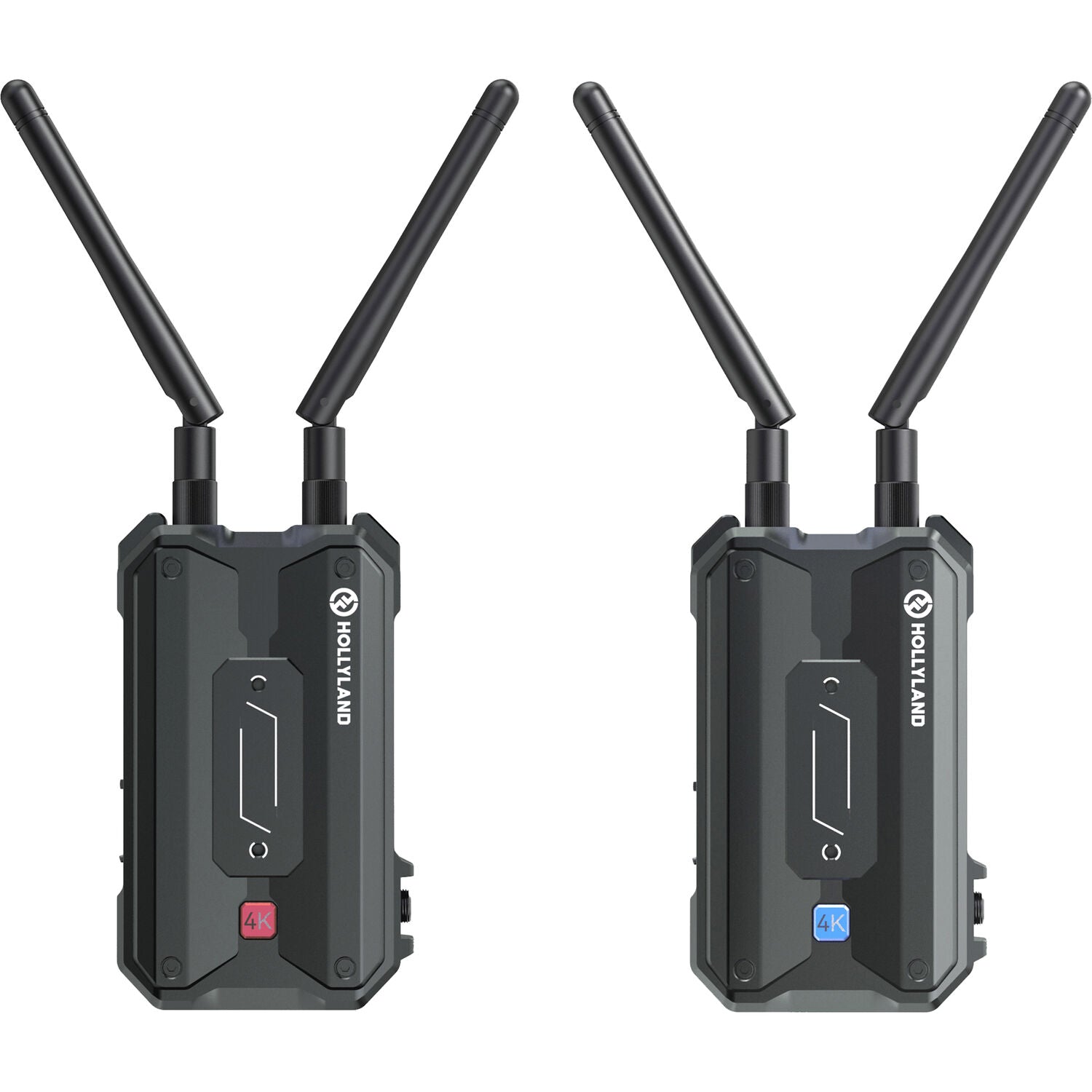

• Model: Hollyland Pyro H
• Function: 4K Wireless Video Transmission
• Max Range: 1300' / 396.2 m (Line of Sight)
• Latency: 60 ms

Video & Audio Performance

Resolution & Formats

• HDMI: Up to UHD 4K at 30 fps
• Full HD: 1080p up to 60 fps
• Audio: Embedded HDMI
• Compression: Uncompressed Video

Connectivity (I/O)

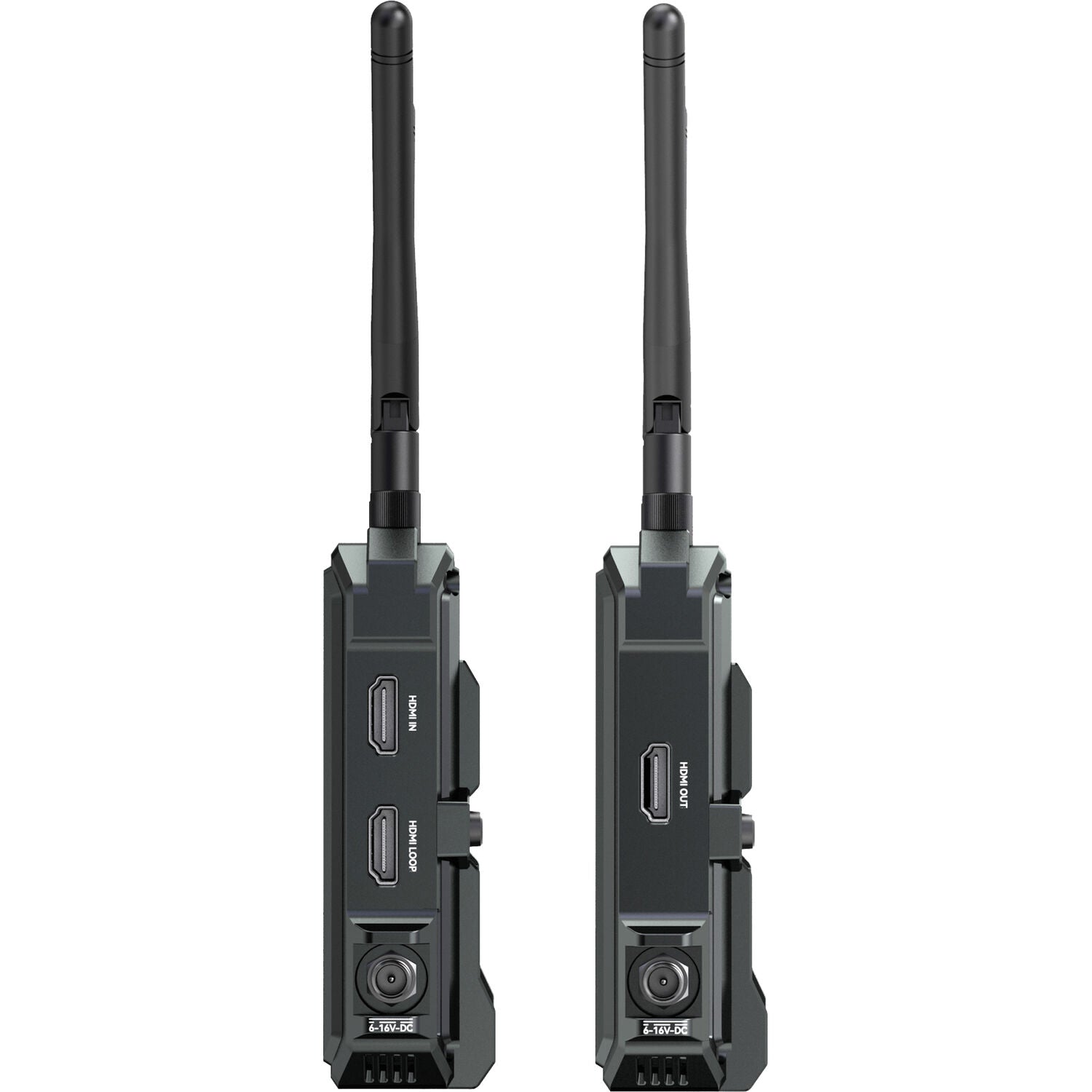

• Transmitter: 1x HDMI Input, 1x HDMI Loop-out
• Receiver: 1x HDMI Output
• Power: Barrel Input (6 to 16 VDC)

Wireless & Technology

Transmission Details

• Antenna: 2x RP-SMA Female per unit
• Tech: Dual-Band (2.4 GHz & 5 GHz) ADH Technology
• Multi-Receiver: Supports up to 4 receivers simultaneously
• App Support: Yes (iOS/Android) via Wi-Fi

Power & Physical

Hardware Specs

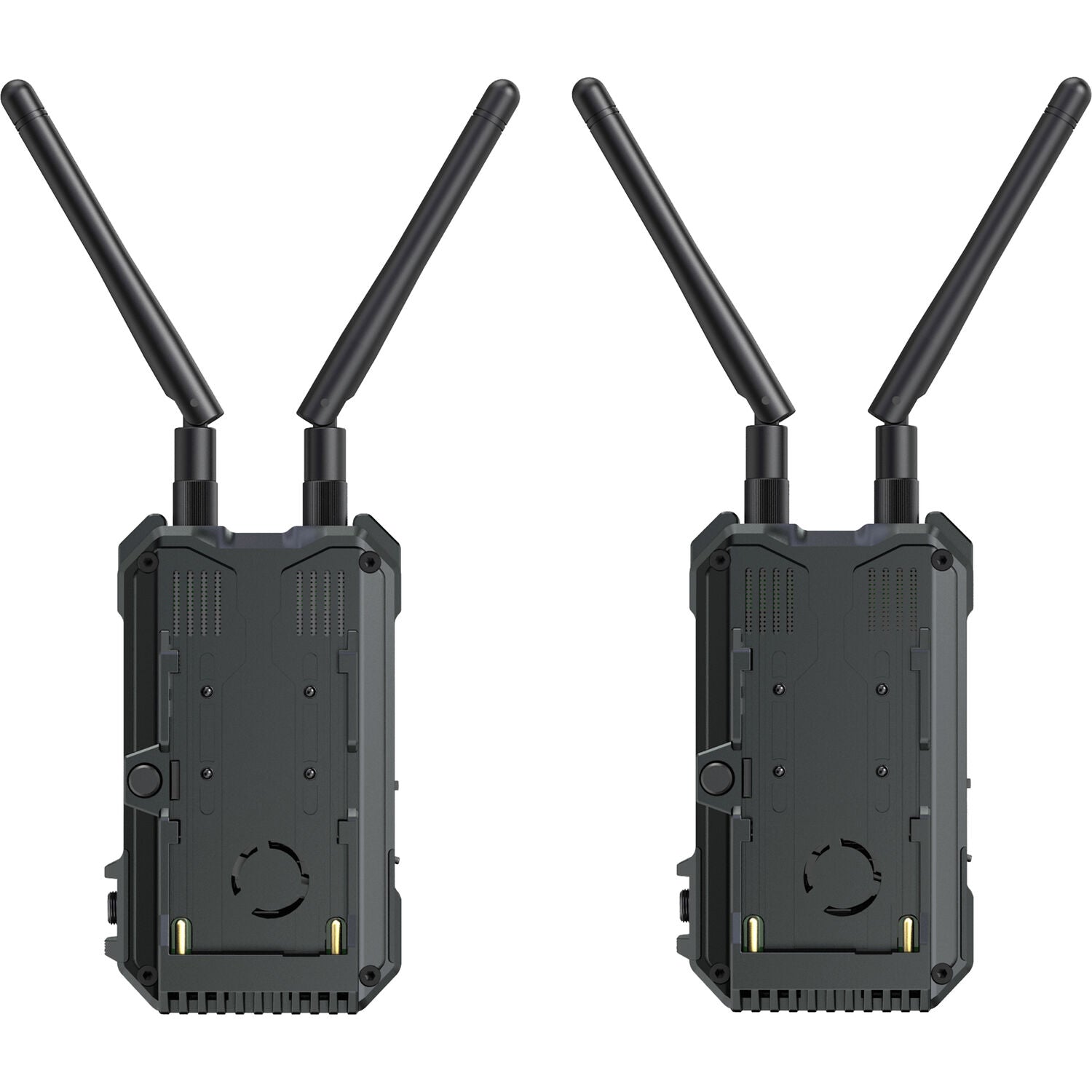

• Battery: 1x L-Series (NP-F) Fixed Plate per unit
• Consumption: TX 7 W | RX 4 W (Energy Efficient)
• Weight: 6.77 oz / 192 g (Ultra-lightweight)

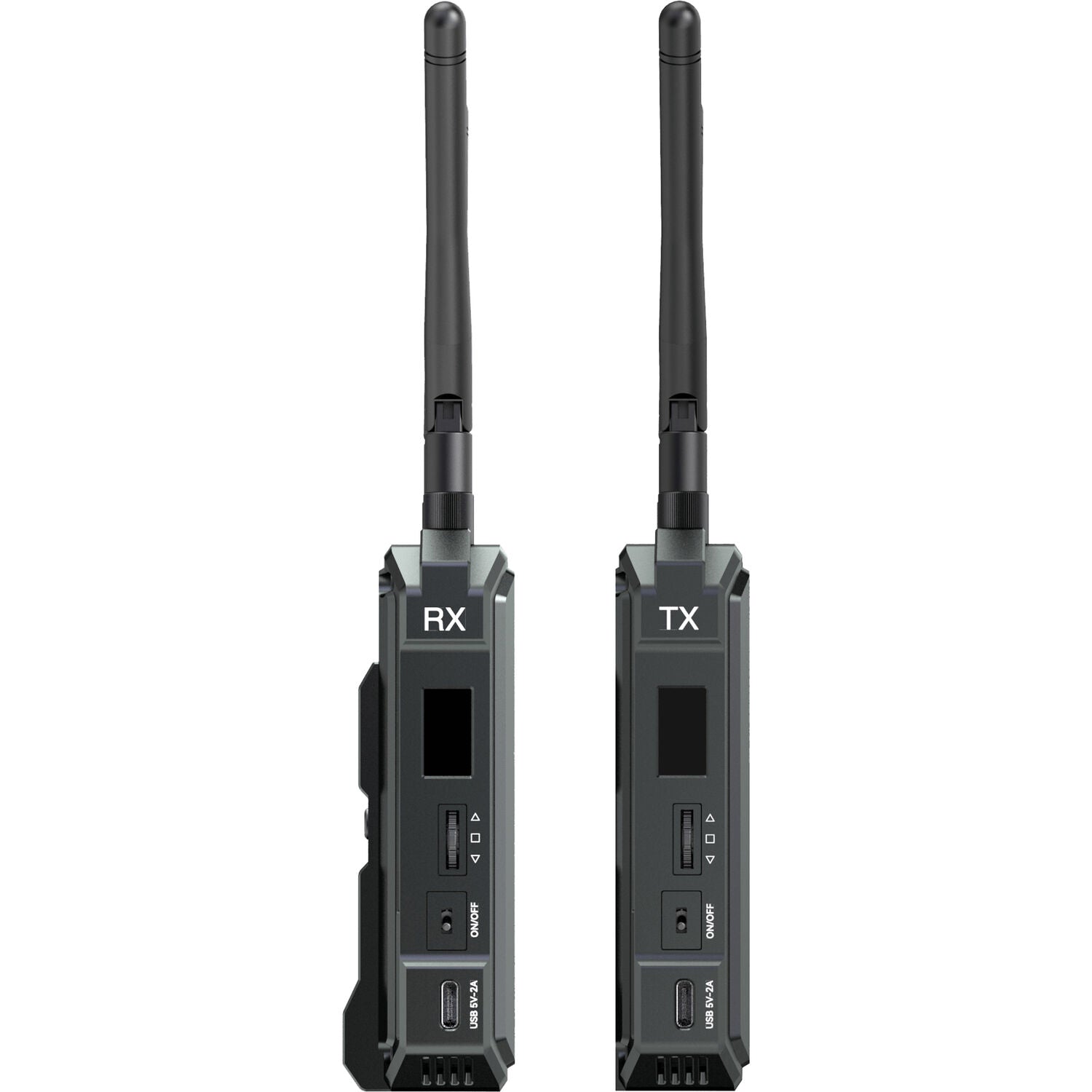

• Display: Built-in Status LCD
