Key Specifications

System Type

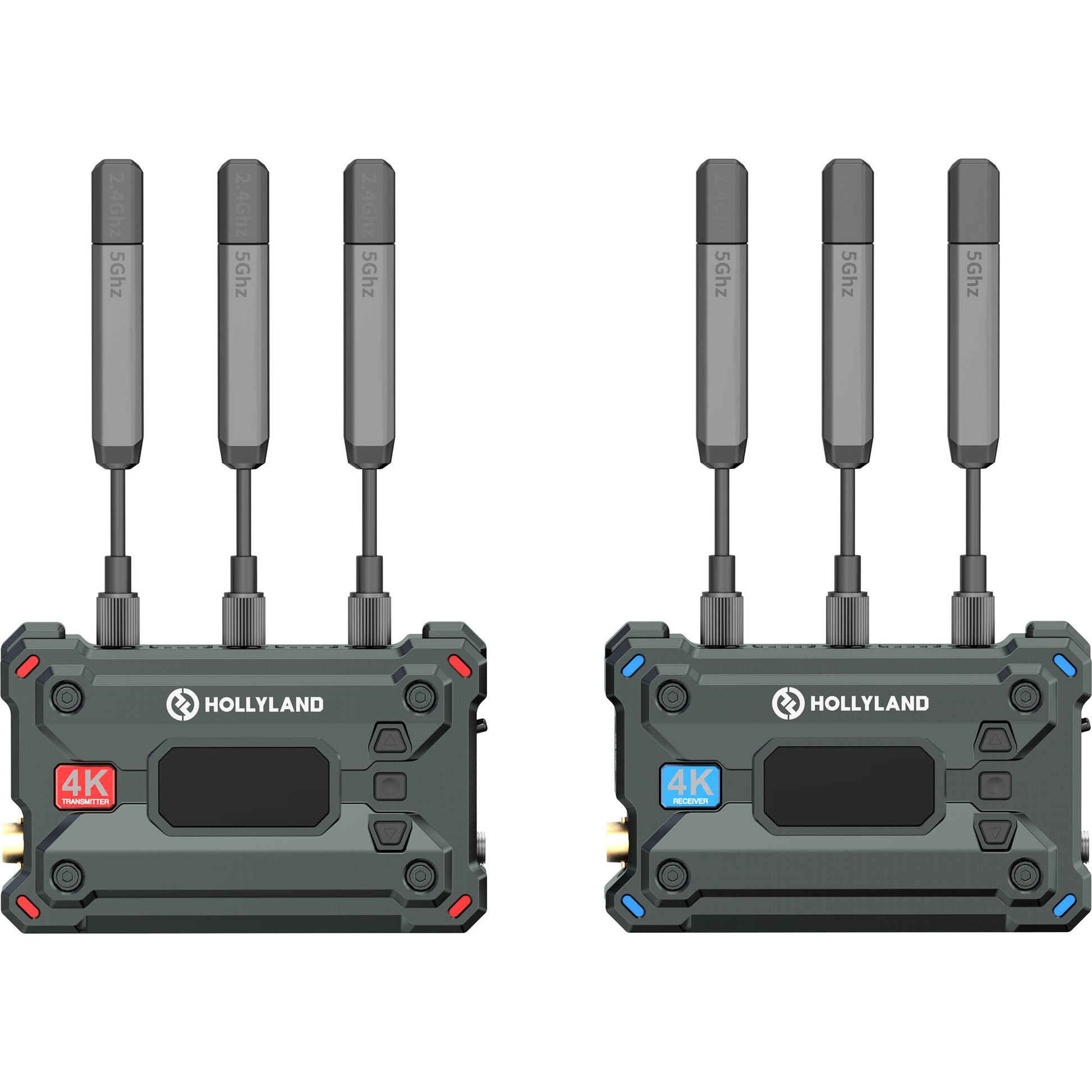

• Model: Hollyland Mars 4K
• Technology: Wireless Video Transmission (4K Support)
• Max Range: 1300' / 396.2 m (Line of Sight)
• Latency: 50 ms

Video & Audio Performance

Resolution & Formats

• HDMI: Up to UHD 4K at 30 fps
• SDI: Up to 1080p at 60 fps
• Audio: Embedded HDMI/SDI
• Compression: Uncompressed Video

Connectivity (I/O)

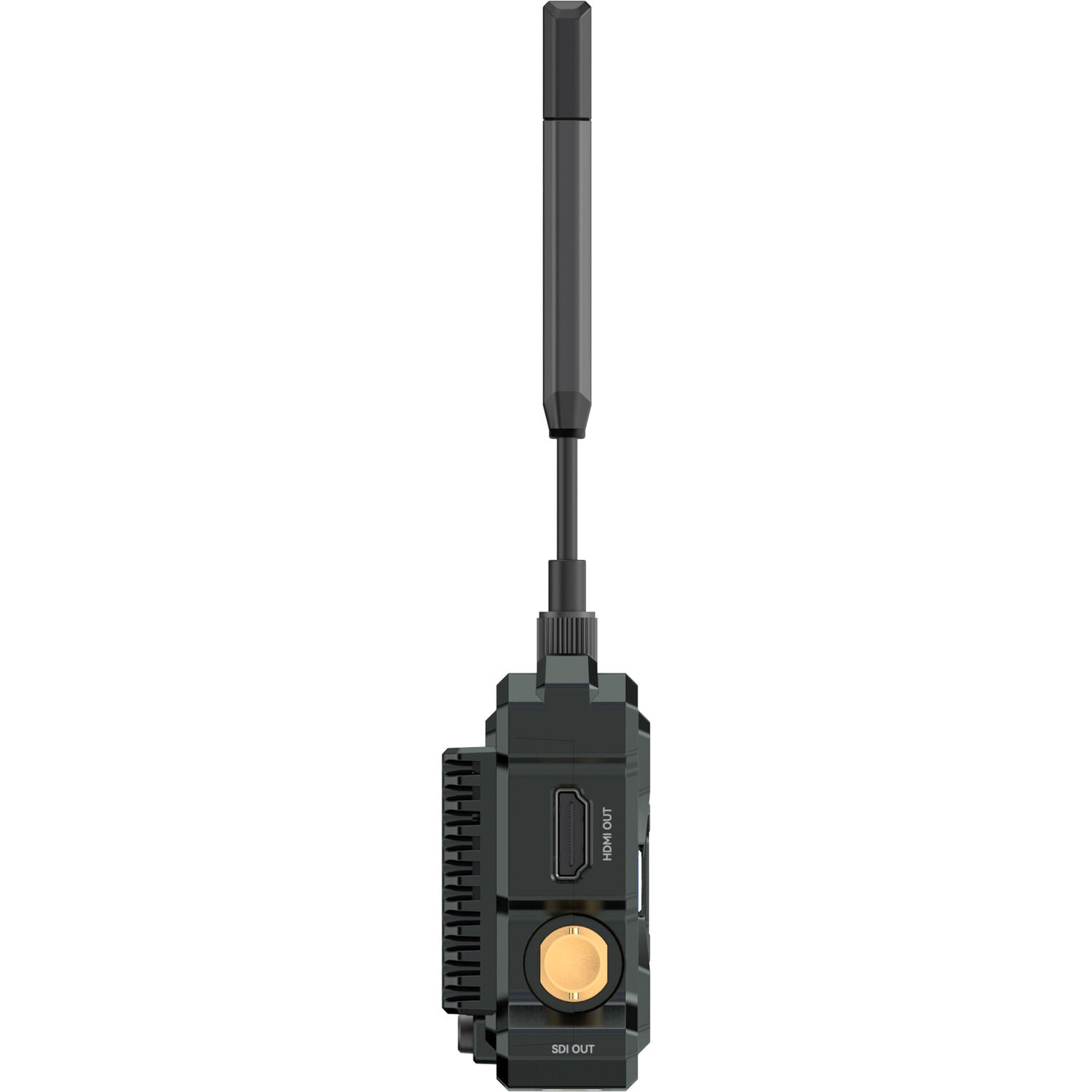

• Transmitter: 1x HDMI Input, 1x 3G-SDI Input

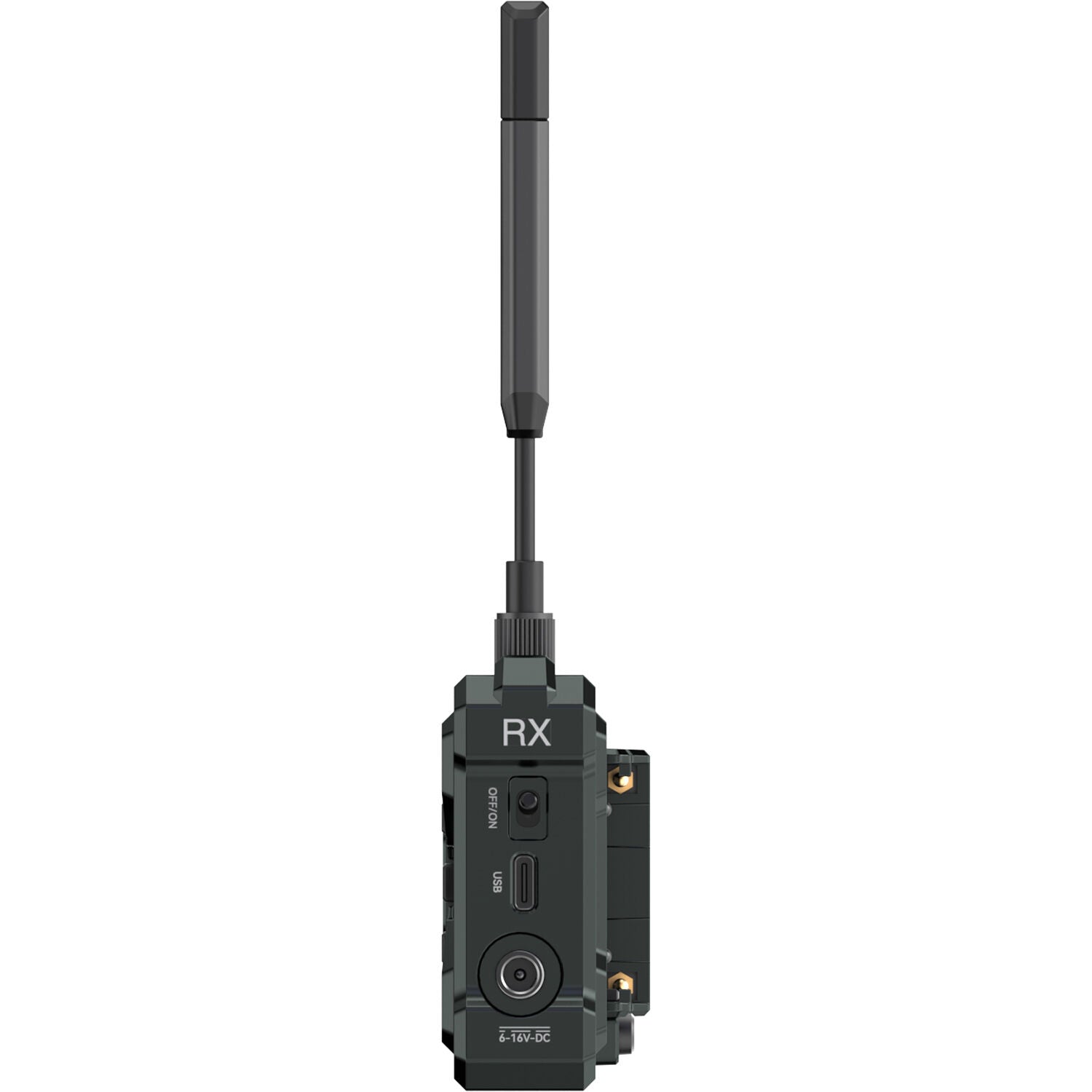

• Receiver: 1x HDMI Output, 1x 3G-SDI Output
• Data: 1x USB-C (Firmware/Update)

Wireless & Hardware

Transmission Details

• Frequency: Dual-Band (2.4 GHz & 5 GHz)
• Antenna: 3x RP-SMA Male on each unit
• App Support: Yes (iOS/Android) for mobile monitoring
• Timecode: Supported

Power & Physical

Power Specs

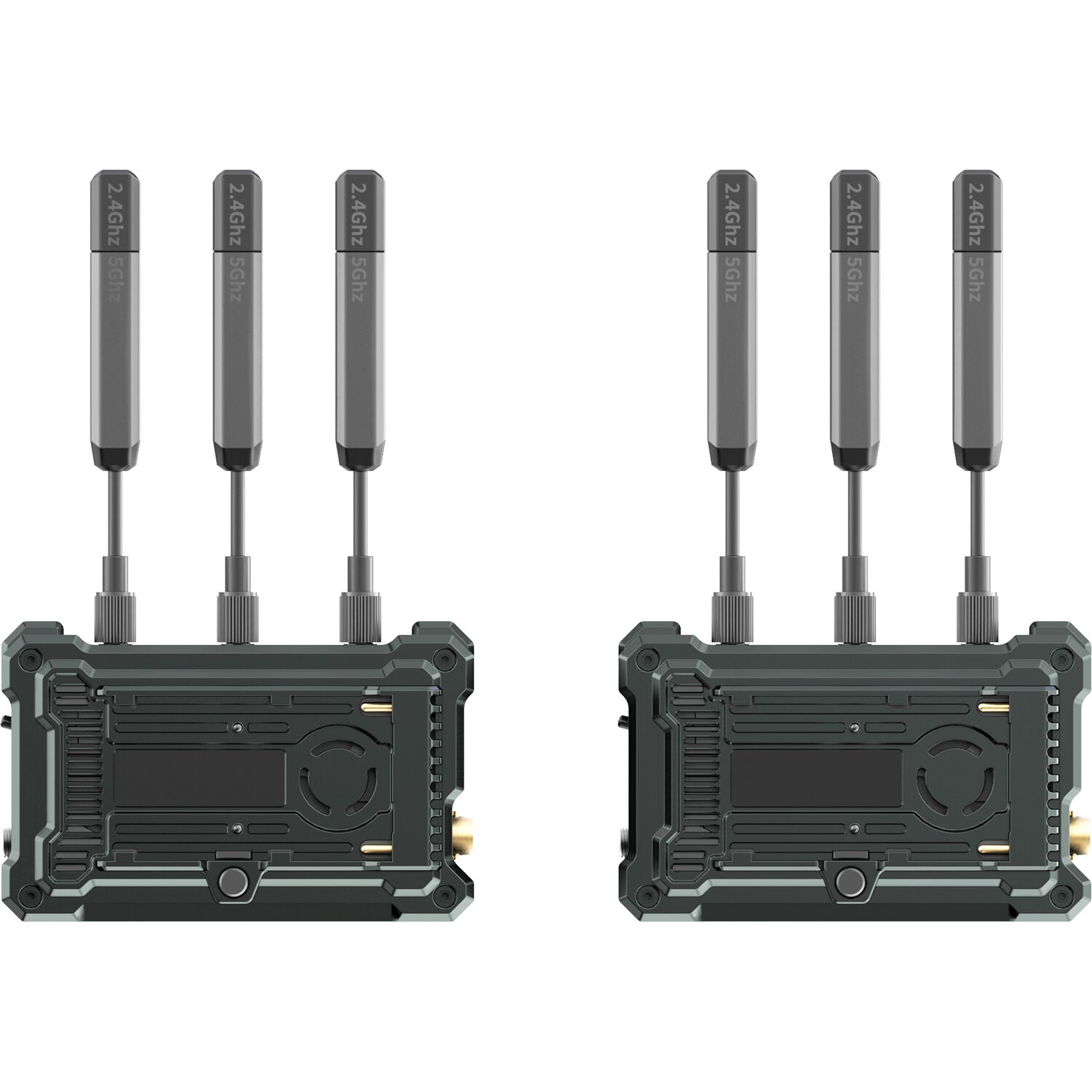

• Battery: 1x L-Series (NP-F) Fixed Plate per unit
• DC Input: 6 to 16 VDC (Barrel)
• Consumption: TX 11 W | RX 8 W

Build

• Weight: 7.3 oz / 207 g (Per unit)
• Material: Magnesium Alloy (Enhanced Heat Dissipation)
• Display: Status OLED on both TX and RX
