Key Specifications

Video I/O

Transmitter: 1x HDMI 2.0 Input
Transmitter: 1x HDMI 2.0 Loop Output
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 2.0 Output
Receiver: 1x BNC (3G-SDI) Output

Wireless

2.4 GHz Radio/RF / 5.1 GHz Radio/RF / 5.8 GHz Radio/RF

Latency

20 ms

Video Format

HDMI:
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
720p: 60/59.94/50

SDI:
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Battery

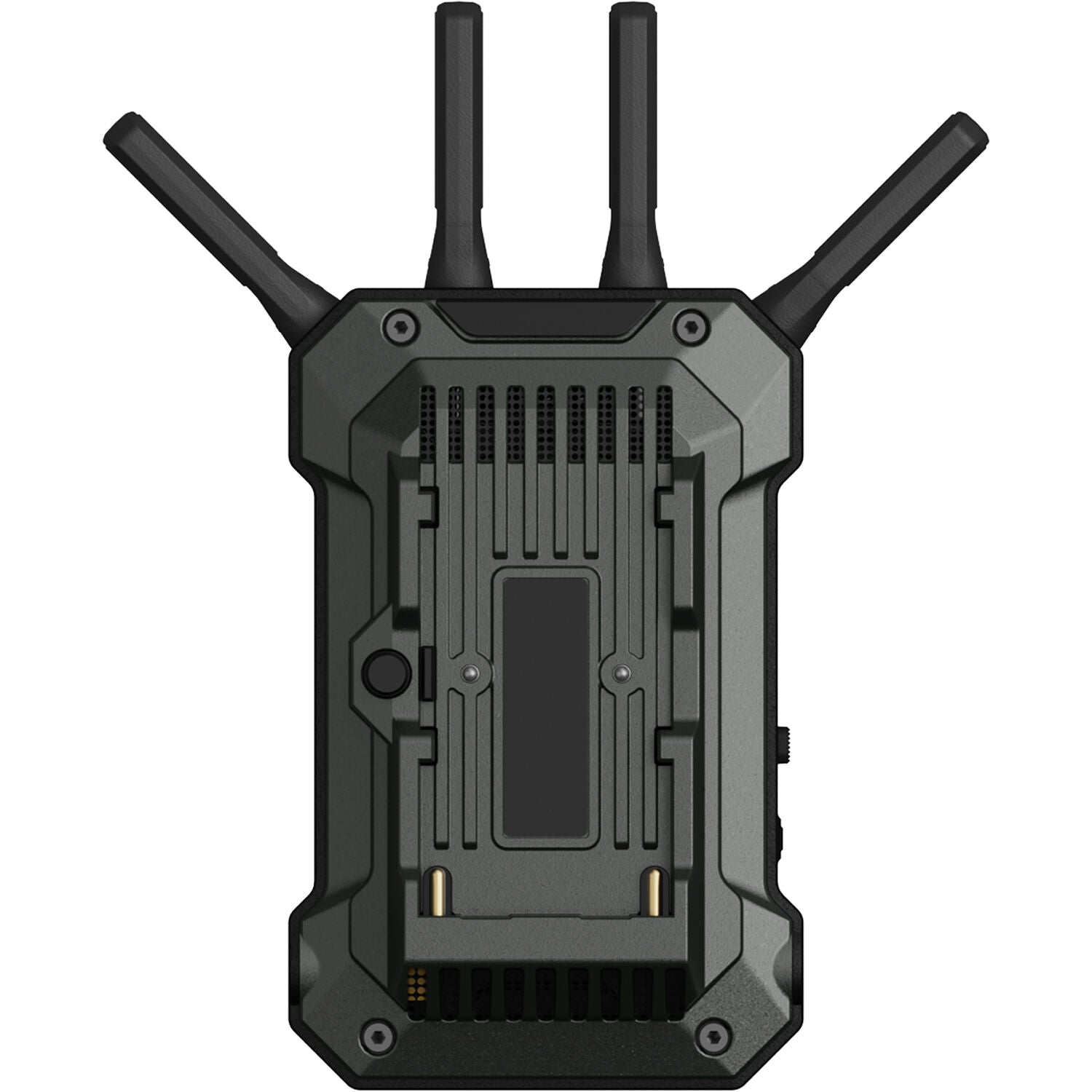

Transmitter: 1x L-Series Mount on Fixed Plate

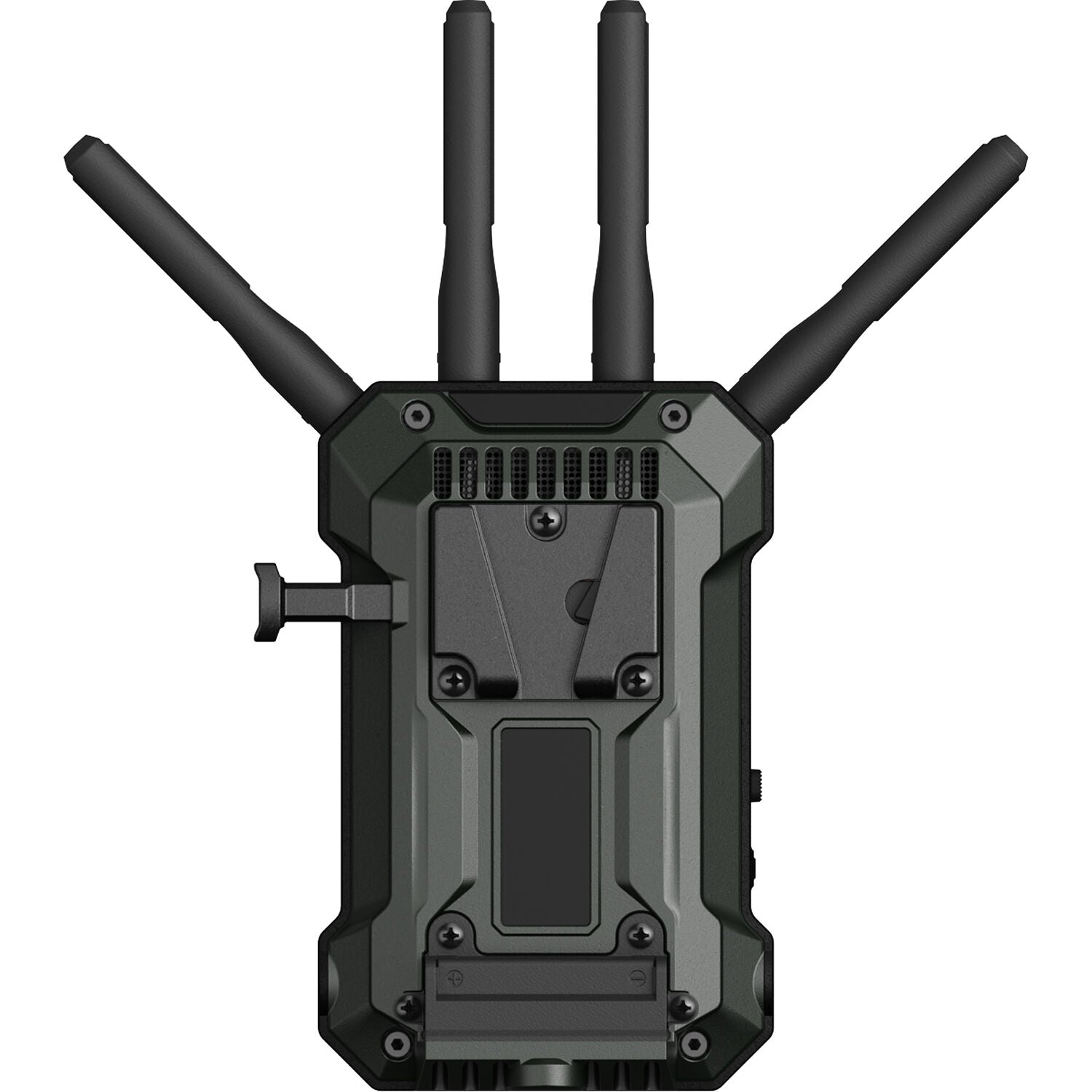

Receiver: 1x V-Mount on Fixed Plate

Power Consumption

Transmitter: 11 W / 14 W
Receiver: 7 W

Inputs / Outputs

Antenna I/O

Transmitter/Receiver: 4x RP-SMA Male

Video I/O

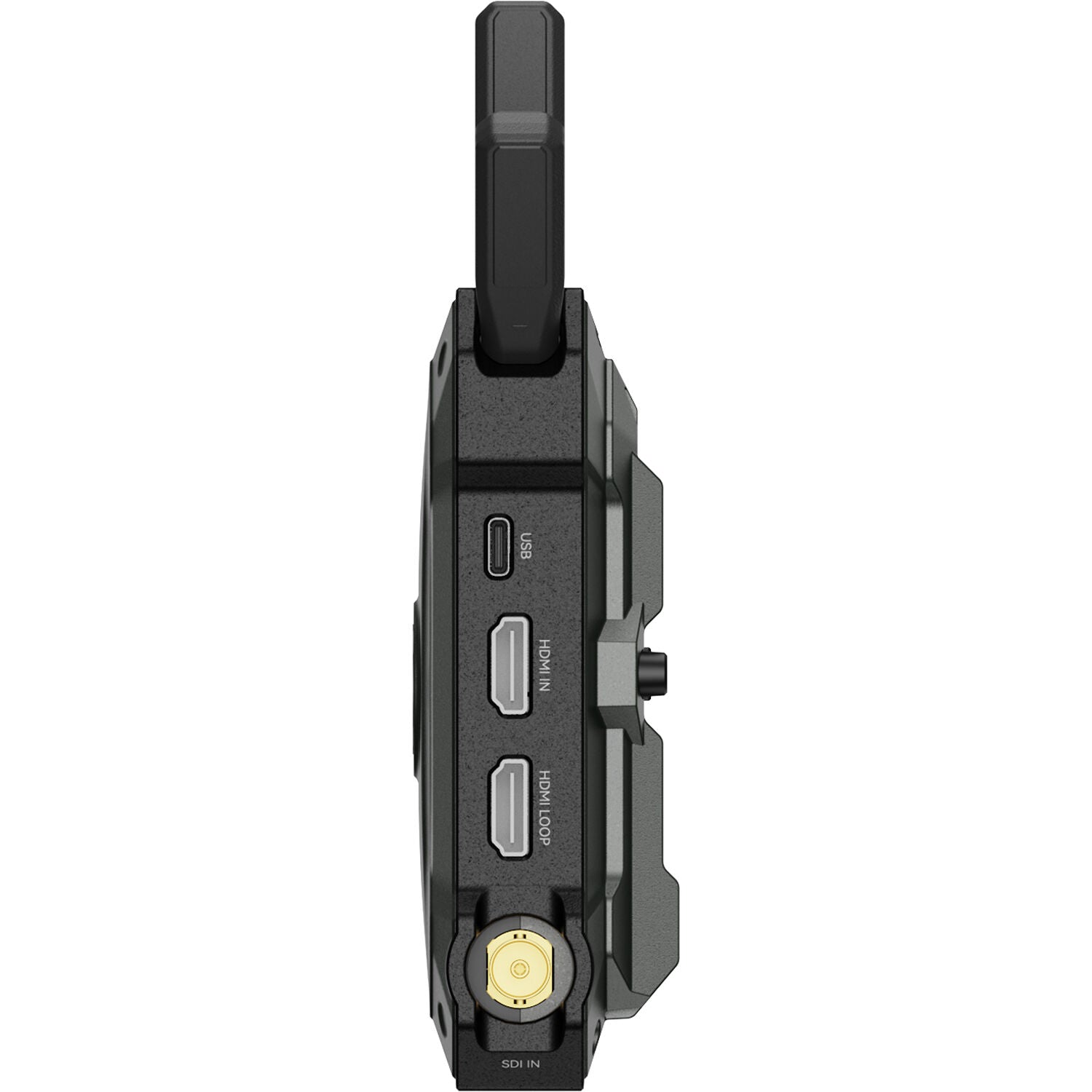

Transmitter: 1x HDMI 2.0 Input
Transmitter: 1x HDMI 2.0 Loop Output
Transmitter: 1x BNC (3G-SDI) Input

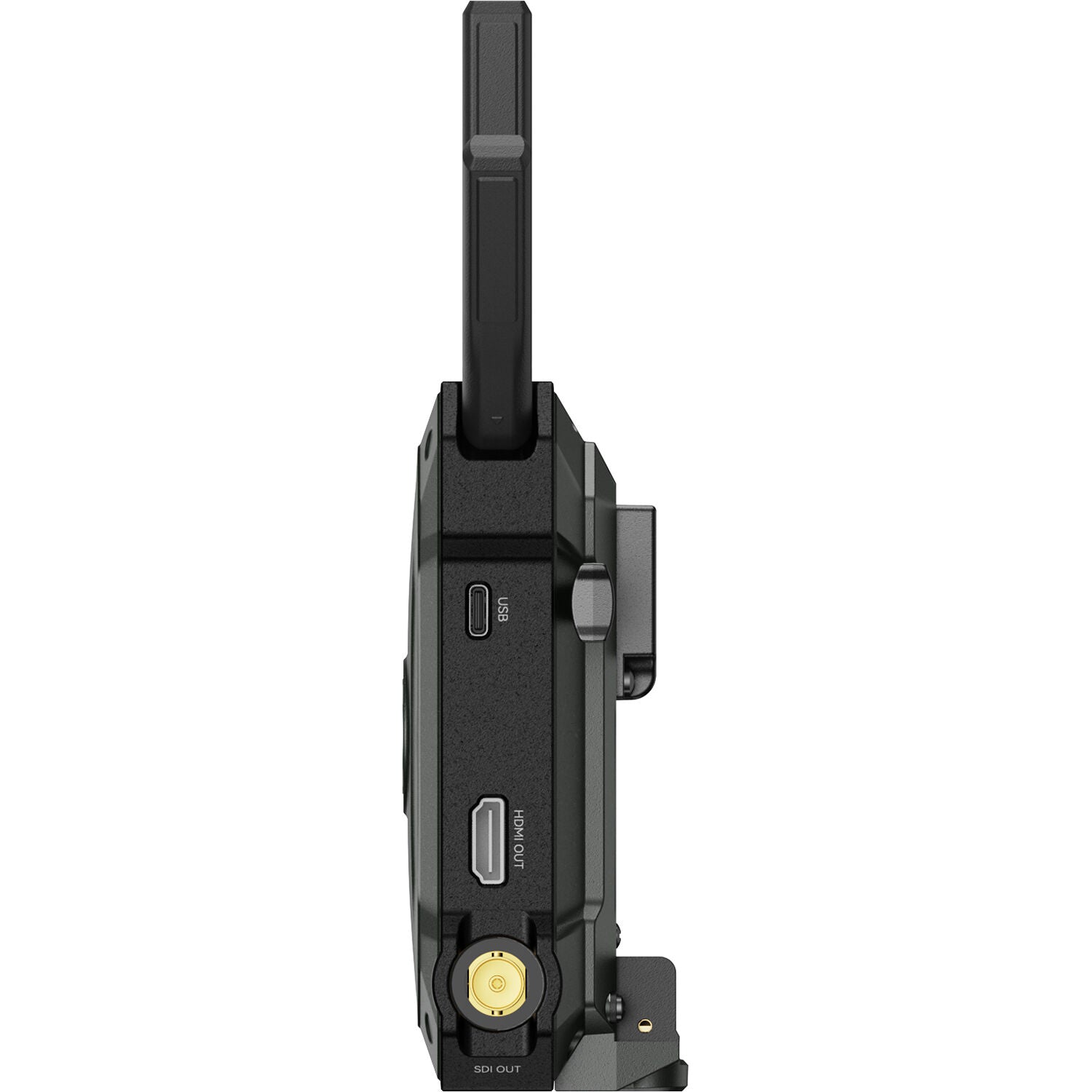

Receiver: 1x HDMI 2.0 Output
Receiver: 1x BNC (3G-SDI) Output

Audio I/O

No

Power I/O

Transmitter/Receiver: 1x Barrel Input

Other I/O

Transmitter/Receiver: 1x USB-C

Wireless

Wireless Range

4921.3' / 1500 m

Channel Bandwidth

40 MHz, 20 MHz

RF Power

≤ 23 dBm

RF Sensitivity

-85 dBm

Wi-Fi

Yes

Bluetooth

No

Mobile App Compatible

No

Cellular Support

No

Power

Input Power

6 to 16 VDC

General

Status Display

On Transmitter & Receiver

Dimensions

Transmitter/Receiver: 4.9 x 3.1 x 1.4" / 124.5 x 80 x 34.9 mm

Weight

Transmitter/Receiver: 11.3 oz / 320.00 g

Packaging Info

Package Weight

5.145 lb

Box Dimensions (LxWxH)

11.8 x 10.8 x 5.6"
