Key Specifications

Product / Device Type

4-Channel DSP Power Amplifier

DSP Architecture

CORE Processing, 96 kHz / 40-bit Floating Point SHARC DSP

AD/DA Converters

24-bit AD/DA Converters

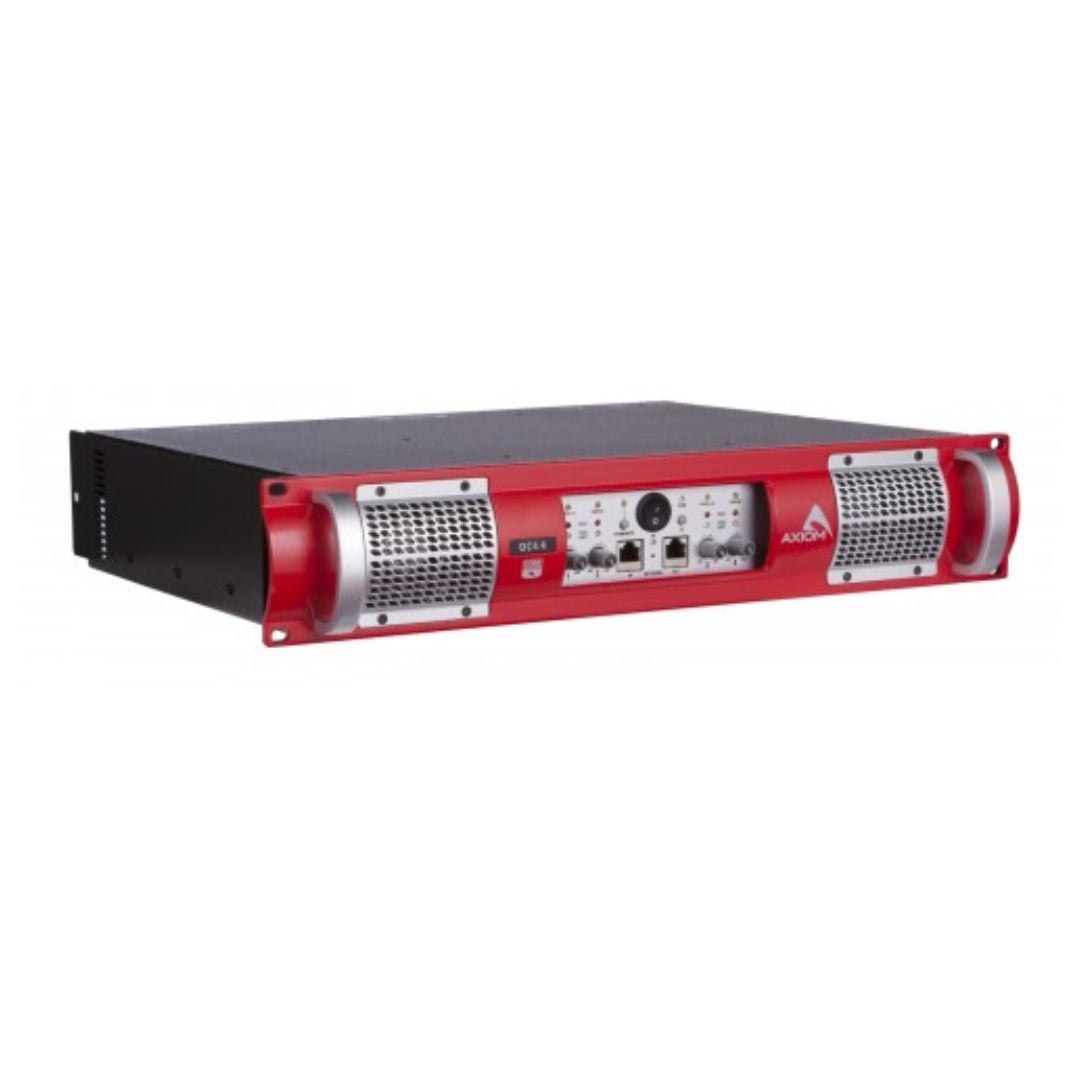

Controls & Network Interfaces

Controls: Level, Ground Lift, Terminate, ID Switch
Network Ports: 2x RJ45 Network Connectors

LED Status Indicators

Signal/Limit, Protection, Bridge, Parallel, Com, Terminate, Power

Amplifier Protection Systems

Clip Limiter, Short Circuit, DC Voltage, Overheating

Output & Power Ratings

Channel Output Configurations

4 Channels (Single-Ended) or 2 Channels (Bridged)

Single Channel Output Power (8 Ω)

500 W per Channel (@ 1 kHz, THD < 1%)

Single Channel Output Power (4 Ω)

1,000 W per Channel (@ 1 kHz, THD < 1%)

Bridged Output Power (8 Ω)

2,000 W per Channel (@ 1 kHz, THD < 1%)

Electrical & Audio Performance Specifications

Frequency Response

20 Hz to 20 kHz

Input Sensitivity & Fixed Gain

Sensitivity: +6 dBu | Gain: 32 dB (Fixed)

Input Impedance

30 kΩ Balanced / 15 kΩ Unbalanced

Signal-to-Noise Ratio (SNR)

>105 dB (Unweighted)

Total Harmonic Distortion + Noise (THD+N)

<0.5%

Damping Factor & Slew Rate

Damping Factor: >500 (@ 8 Ω) | Slew Rate: 50 V/µs

Connectivity, Power & Physical Specifications

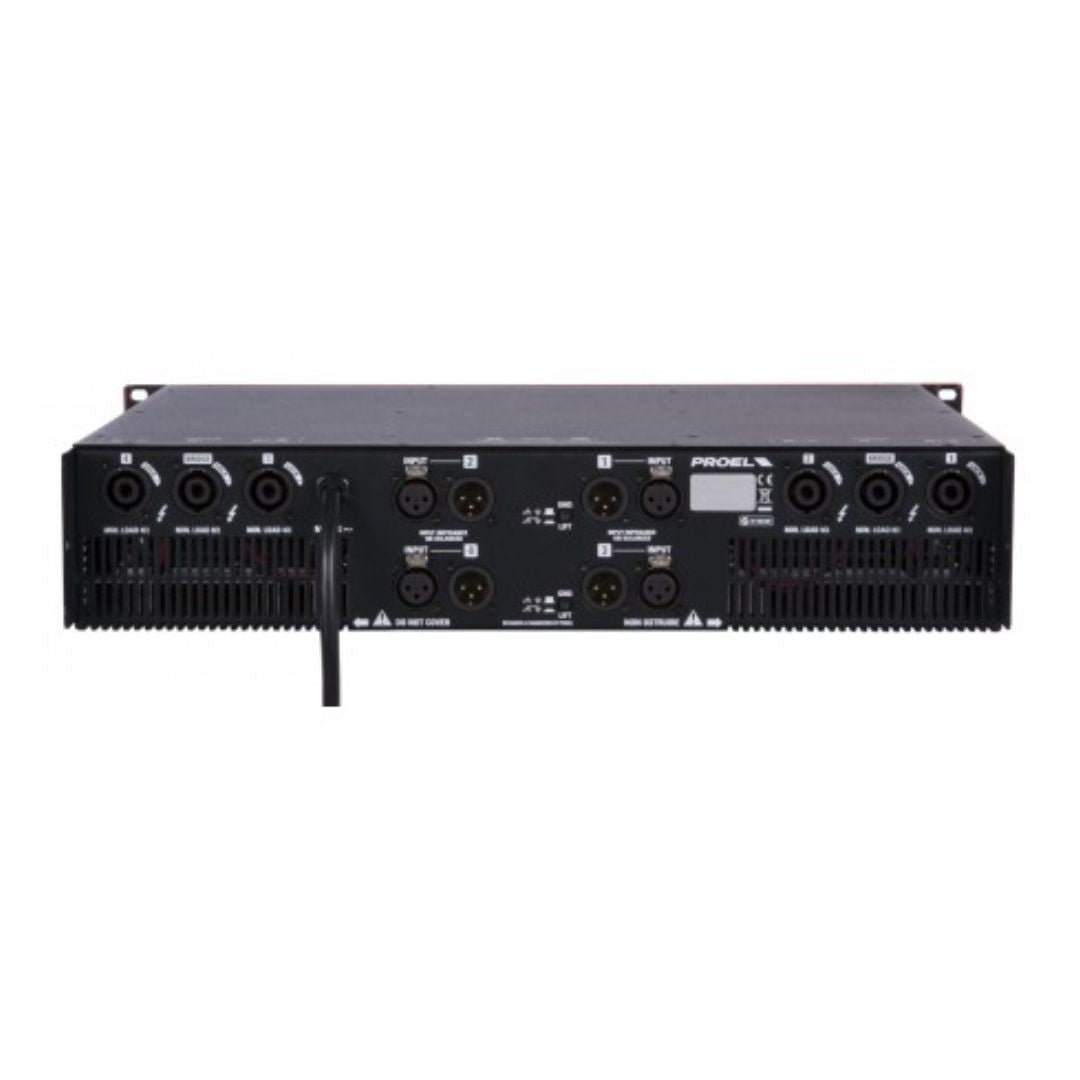

Input & Link Connectors

Input: XLR Female | Link: XLR Male

Output Connectors

Neutrik® Speakon® NL4 (4x Single Channel / 2x Bridged Channel)

Power Supply Input

230V AC or 120V AC, 50/60 Hz

Power Consumption

Rated Consumption: 1,350 W (Pink Noise, 12 dB Crest Factor)
Maximum Consumption: 5,300 W

Cooling System

Variable-Speed DC Fan

Item Dimensions (W×H×D)

483mm x 89mm x 383mm (19.0" x 3.5" x 16.2" — 2U Rackmount)

Net Weight

11.0 kg (24.3 lbs)
