Key Specifications

Performance

• Amplifier Class: HD
• Frequency Response (-3dB): 20 Hz - 20000 Hz
• SNR (Analog): >110 dB
• THD+N (@ 1 kHz): <0.05 %

Output Power

• 4 x 1500 W @ 2 ohm
• 4 x 1300 W @ 4 ohm
• 4 x 700 W @ 8 ohm
• Bridge: 2 x 3000 W @ 4 ohm / 2 x 2600 W @ 8 ohm

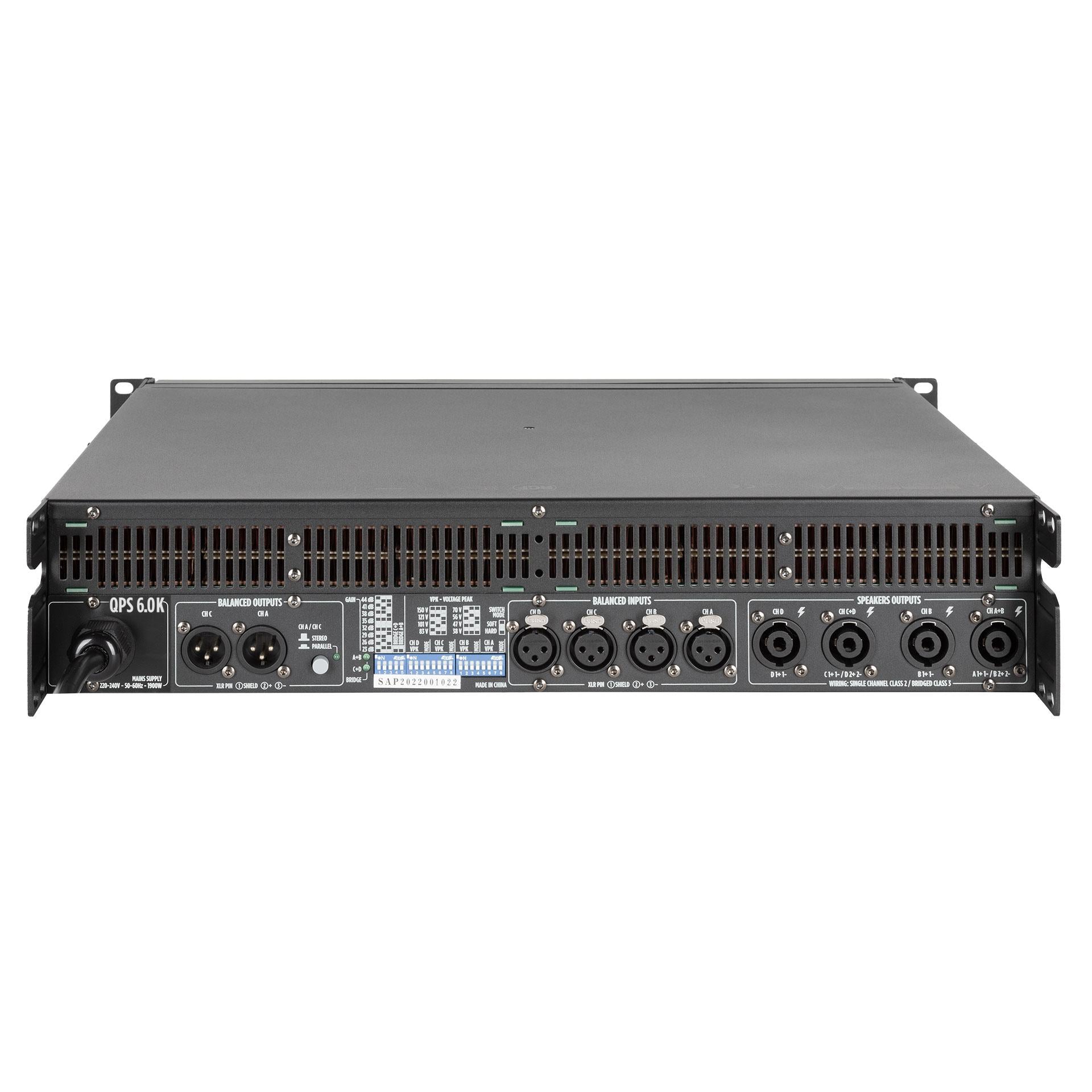

Input / Output & Control

Connectivity

• Inputs: 4 x Balanced XLR (Mono/Line)
• Signal Outputs: 2 x XLR Link
• Power Outputs: Speakon Connectors

Configuration

• Controls: DIP switch, Front panel
• Cooling: Forced air

Protections

• Safety: Short circuit, Thermal, DC, Fuses
• HF: VHF (Very High Frequencies) Protection

Physical Specifications

Construction

• Material: Metal with Front Handles
• Rack Mounting: 19", 2U
• Color: Black - RAL 9005

Size / Weight

• Dimensions: 19.02 x 3.46 x 15.71" / 483 x 88 x 399 mm
• Weight: 30.2 lbs / 13.7 kg

Power & Compliance

• Voltage: 220-240/115 V~ 50/60Hz
• Max Consumption: 1400 W
• Compliance: CE compliant

Packaging Info

• Package Weight: 33.07 lbs / 15 kg
• Box Dimensions: 22.52 x 5.91 x 22.44"
