Key Specifications

Channels of I/O

4 Inputs / 4 Outputs

Maximum Sampling Rate

192 kHz / 24-Bit

Number of Microphone Inputs

4

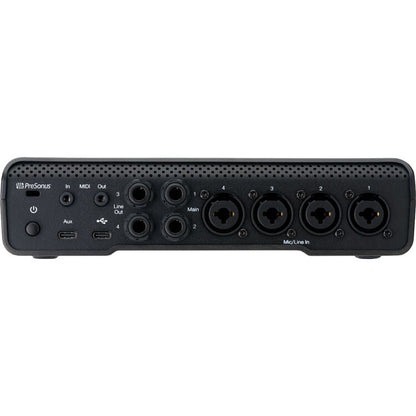

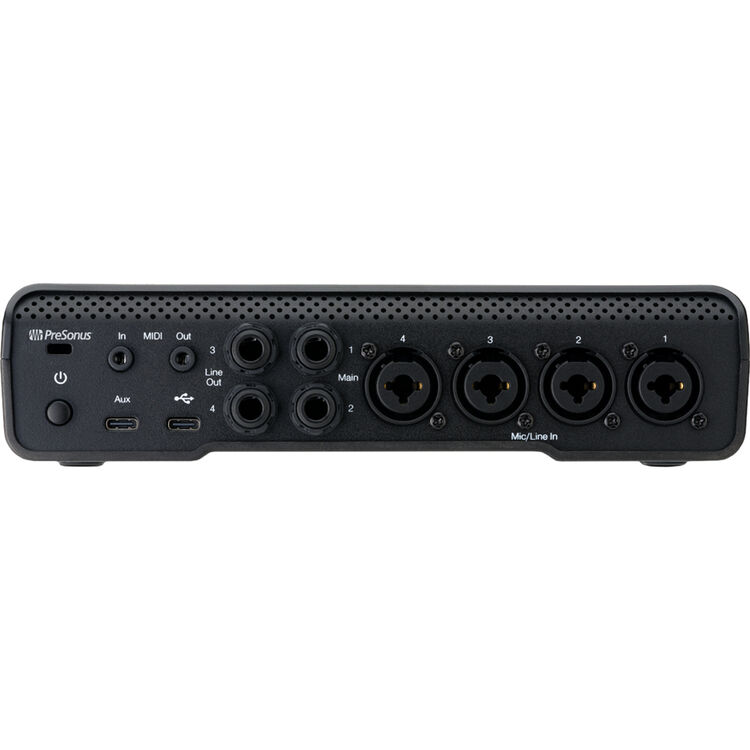

Analog Audio I/O

4 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 1/4" TS Hi-Z Input
4 x 1/4" TRS Balanced Line/Monitor Output
2 x 1/4" TRS Headphone Output

Digital Audio I/O

No

Host Connection

USB-C

Power Requirements

USB Bus Power, USB Power Adapter (Not Included)

General

Display

LED

Built-In DSP

No

Input Level Adjustment

Knob

Signal Processing

Pad

No

Gain/Trim Range

Mic Inputs: 75 dB
Hi-Z Inputs: 75 dB
Line Inputs: -10 dB to +10 dB

High-Pass Filter

No

Solo/Mute

Mute per Master

Connectivity

Phantom Power

48 V, Selectable On/Off

USB (Non-Host)

1 x USB-C (Power Input)

MIDI I/O

1 x 1/8" / 3.5 mm TRS Type-B Input
1 x 1/8" / 3.5 mm TRS Type-B Output

Wireless

No

Performance

Frequency Response

XLR Mic Inputs: 20 Hz to 20 kHz ±0.2 dB
Line Inputs: 20 Hz to 20 kHz ±0.1 dB
Line Outputs: 20 Hz to 20 kHz ±0.1 dB
Hi-Z Inputs: 20 Hz to 20 kHz ±0.2 dB
Headphone Outputs: 20 Hz to 20 kHz ±0.2 dB

Maximum Input Level

XLR Mic Inputs: +14 dBu
Line Inputs: +15 dBu
Hi-Z Inputs: +15 dBu

Maximum Output Level

Line Outputs: +15 dBu
Headphone Outputs: 7.5 dBu @ 50 Ohms

Impedance

Mic Inputs: 1600 Ohms
Line Inputs: 10 Kilohms
Hi-Z Inputs: 1 Megohm
Line Outputs: 51 Ohms
Headphone Outputs: 22 Ohms

Dynamic Range

Digital: 120 dB
Mic Inputs: 113 dBA
Line Inputs: 114 dBA
Hi-Z Inputs: 111 dBA
Line Outputs: 117 dBA
Headphone Outputs: 111 dBA

THD

Mic: 0.001%
Hi-Z: 0.002%
Line: 0.001%
Line Outputs: 0.001%
Headphone Outputs: 0.02%

EIN

-129 dBu (A-Weighted)

Digital Audio

Sample Rates

Up to 192 kHz

Bit Depth

24-Bit

Compatibility

OS Compatibility

macOS / Windows / Android / iOS

Physical

Dimensions (W x D x H)

8.4 x 6.2 x 1.9" / 21.3 x 15.7 x 4.8 cm

Weight

1.8 lb / 0.8 kg

Packaging Info

Package Weight

3.755 lb

Box Dimensions (L x W x H)

12.2 x 9.5 x 4"
