Key Specifications

Channels of I/O

26 Inputs / 30 Outputs

Maximum Sampling Rate

192 kHz / 32-Bit

Number of Microphone Inputs

8

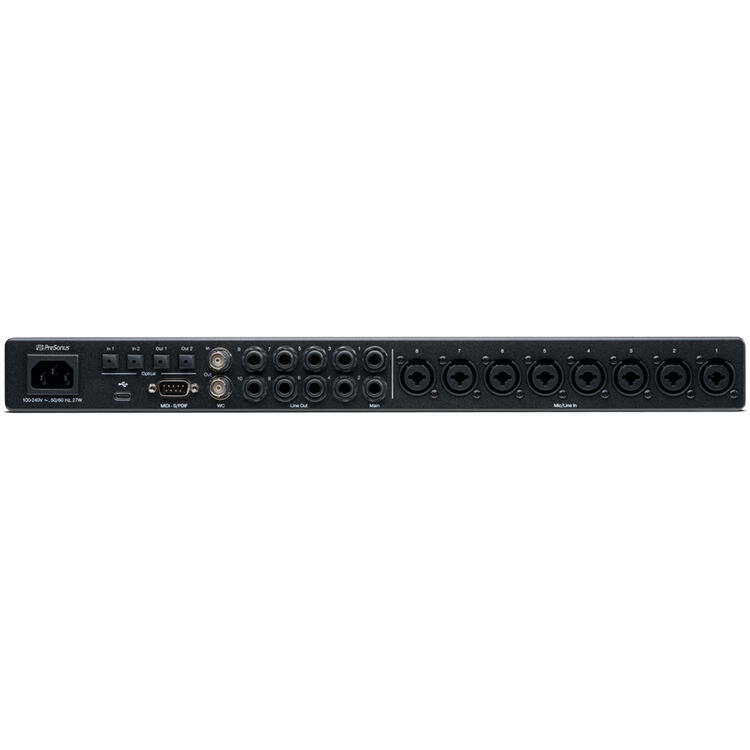

Analog Audio I/O

8 x Combo XLR-1/4" TRS Balanced Mic/Line Input
2 x 1/4" TS Unbalanced Hi-Z Input
10 x 1/4" TRS Balanced Line/Monitor Output
2 x 1/4" TS Unbalanced Hi-Z Output
2 x 1/4" TRS Headphone Output

Digital Audio I/O

2 x TOSLINK Optical ADAT Input (S/MUX Support)
2 x TOSLINK Optical ADAT Output (S/MUX Support)
1 x RCA Coaxial S/PDIF Input (Breakout Cable)
1 x RCA Coaxial S/PDIF Output (Breakout Cable)

Host Connection

USB-C

Power Requirements

AC Input

General

Display

Color

Built-In DSP

No

Input Level Adjustment

Via Software

Signal Processing

Gain/Trim Range

Mic Inputs: 75 dB

Connectivity

Phantom Power

48 V, Selectable On/Off

MIDI I/O

1 x DIN 5-Pin Input (Breakout Cable)
1 x DIN 5-Pin Output (Breakout Cable)

Wireless

No

Performance

Frequency Response

Mic / Line / Hi-Z Inputs: 20 Hz to 20 kHz ±0.1 dB
Line / Monitor Outputs: 20 Hz to 20 kHz ±0.2 dB
Headphone Outputs: 20 Hz to 20 kHz ±0.3 dB

Maximum Input Level

Mic Inputs: +18 dBu
Line Inputs: +18 dBu
Hi-Z Inputs: +21 dBu

Maximum Output Level

Line / Monitor Outputs: +18 dBu
Headphone Outputs: 11 dBu @ 50 Ohms

Impedance

Mic Inputs: 1600 Ohms
Line Inputs: 10 Kilohms
Hi-Z Inputs: 1 Megohm
Line / Monitor Outputs: 51 Ohms
Headphone Outputs: 33 Ohms

Dynamic Range

Mic Inputs: 116 dBA
Line Inputs: 118 dBA
Hi-Z Inputs: 111 dBA
Line / Monitor Outputs: 123 dBA
Headphone Outputs: 118 dBA
AD/DA Converters: 124 dB

THD

Mic Inputs: 0.002%
Hi-Z Inputs: 0.003%
Line Inputs: 0.001%
Line / Monitor Outputs: 0.001%
Headphone Outputs: 0.001%

EIN

-130 dBu (A-Weighted)

Digital Audio

Sample Rates

Up to 192 kHz

Bit Depth

32-Bit

Compatibility

OS Compatibility

macOS / Windows / Android / iOS

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rackmount Size

1 U

Dimensions (W x D x H)

19 x 8.6 x 1.7" / 48.3 x 21.8 x 4.3 cm

Weight

6.4 lb / 2.9 kg

Packaging Info

Package Weight

12.29 lb

Box Dimensions (L x W x H)

23.6 x 12.1 x 5.5"
