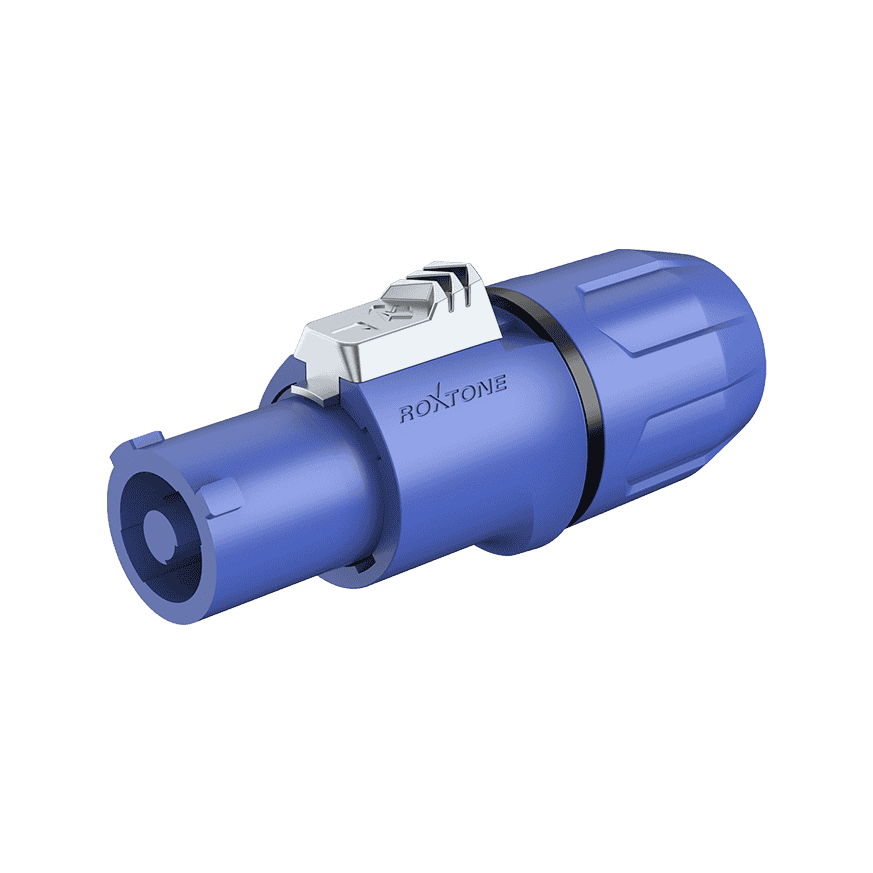

RAC3FCI

Lockable 3 pole equipment(AC) connectors
Thicker silver plated brass and beryllium brozne contacts supply excellent contact and conduction properties
Replaceable color ring on connector indicates cable of different equipment or length, easy for works
Dust-proof design of the bushing makes the additional protection
Raw material according with UL-V0 for safe use 2 pieces strain-relief clamps are provided for different cable diameter
Patent-protected

ROXTONE

₱323.00 VAT INC.

₱323.00

UNIT: PIECE/S

Product Code: SKU:ROXT-RAC3FCI-CHN-3295

Lockable 3 pole equipment(AC) connectors
Thicker silver plated brass and beryllium brozne contacts supply excellent contact and conduction properties
Replaceable color ring on connector indicates cable of different equipment or length, easy for works
Dust-proof design of the bushing makes the additional protection
Raw material according with UL-V0 for safe use 2 pieces strain-relief clamps are provided for different cable diameter
Patent-protected

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE RAC3FCI

Key Specifications
Product Model	Roxtone Power Series (Cable Connector)
Product Type	3-Pole AC Power Connector (Power-In/Out) Profile: High-Current Industrial Locking Interface
Material Specifications
Component Build	Housing: PA6 30%GF (Glass-Fiber Reinforced) Insert: PA66 20%GF (High-Temp Polyamide) Latch: Zinc Alloy Diecast Contacts: Brass with Silver Plating Strain Relief: POM (Polyoxymethylene)
Electrical & Performance Data
Current Rating	20 A rms per contact
Voltage Rating	250 V ac
Flammability	UL 94 V-0 (Highest fire retardant rating)
Physical Specifications
Mechanical Details	Cable O.D. Range: 6 - 12 mm Number of Contacts: 3 (L, N, PE) Locking System: Quick-lock latch with zinc alloy finish Application: LED Screens, Stage Lighting, and Audio Power Racks
