Key Specifications

Image Sensor

Size-Unspecified CMOS (13 Megapixel Effective Resolution)

Zoom

Max Optical Zoom: 5x | Max Digital Zoom: 3x

Field of View (Diagonal/Horizontal/Vertical)

90° / 82° / 52°

Supported Resolutions & Frame Rates

• 3840 x 2160 (4K) at 30.00 fps
• 1920 x 1080p (HD) at 30.00/60.00 fps
• 1280 x 720 at 30.00/60.00 fps

Video Output / Standard

1x USB-C 3.0 / 3.1/3.2 Gen 1 Output | NTSC Broadcast Output

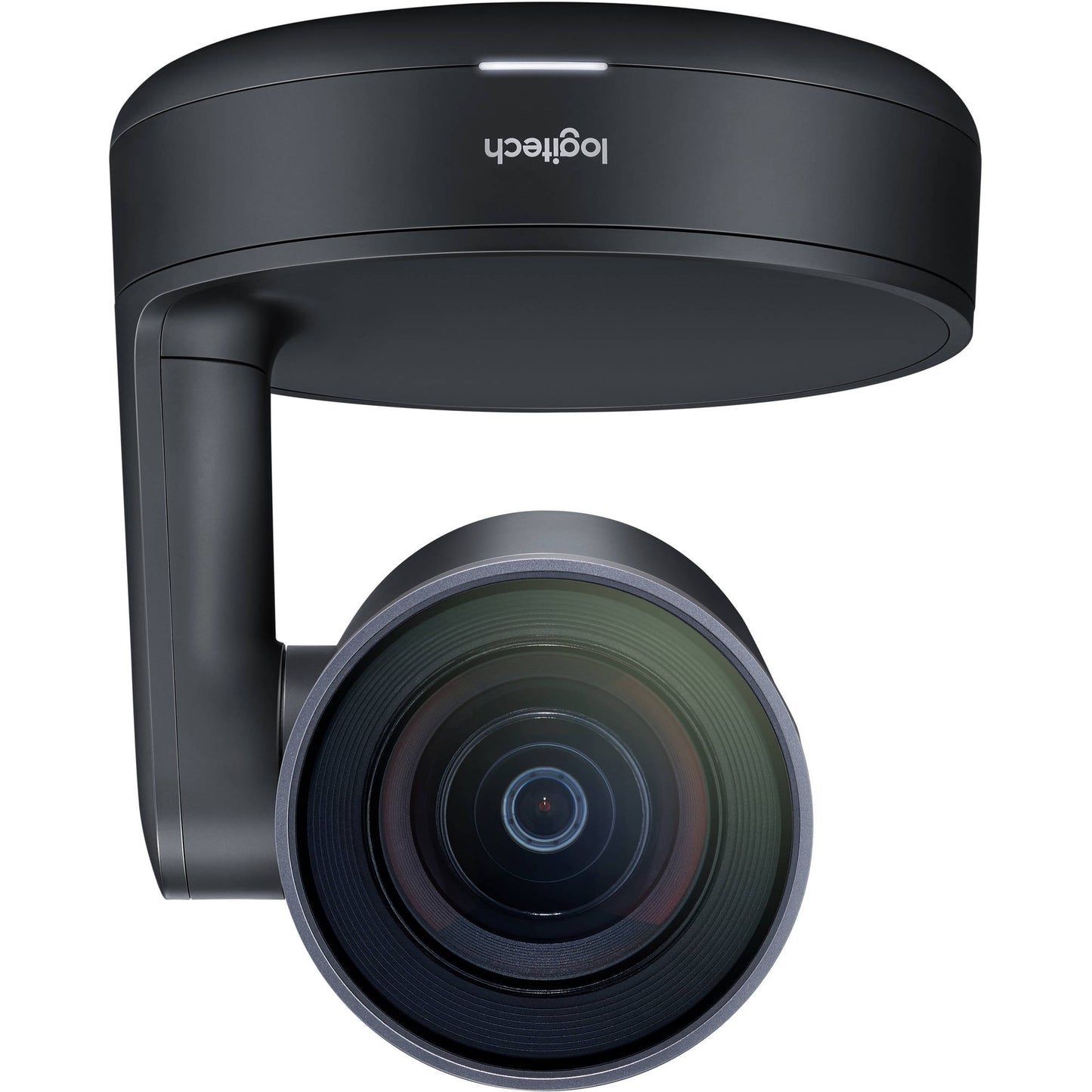

Rally Camera (Control & Physical)

Pan/Tilt Range

Pan: 180° (-90 to 90°) | Tilt: 140° (-90 to 50°)

Presets / Control Protocols

3 via IR / IR

Mounting / Security

1x 1/4"-20 Tripod Thread | Kensington Lock Slot

Camera Dimensions (H x D x W)

7.19 x 5.98 x 5.98" / 18.26 x 15.19 x 15.19 cm

Audio Components (Speakers & Mics)

Microphone Type / Coverage

Omnidirectional | 360° | Pickup Range: 11.5' / 3.5 m

Microphone Frequency Response

90 Hz to 16 kHz

Speaker Max Power Output

7.5 W (Peak)

Speaker Frequency Response

200 Hz to 300 Hz

Expansion Speaker Inputs

1x Mini DIN 8-Pin

Hub I/O

Video / Data Ports

2x HDMI | 1x USB-A | 1x USB-B | 1x RJ45 | 2x PS/2

General & Compatibility

OS Compatibility

macOS 10.1 or Later / Chrome OS / Windows 7 or Later

System Dimensions (H x D x W)

• Camera: 7.19 x 5.98 x 5.98" / 18.26 x 15.19 x 15.19 cm
• Speaker: 17.68 x 4.06 x 3.15" / 44.91 x 10.31 x 8 cm
• Expansion Mic: 4.01 x 4.01 x 0.83" / 10.19 x 10.19 x 2.11 cm
• Hub: 8.11 x 7 x 1.57" / 20.6 x 17.8 x 3.99 cm

Packaging Info

Package Weight

28 lb

Box Dimensions (L x W x H)

28.5 x 18 x 9"
