Ray 360c RGB
Ray 360c RGB
AMARAN
Price for Inquiry
UNIT: PIECE/S
Product Code: SKU:AMAR-RAY360C-CHN-6588
Key Features

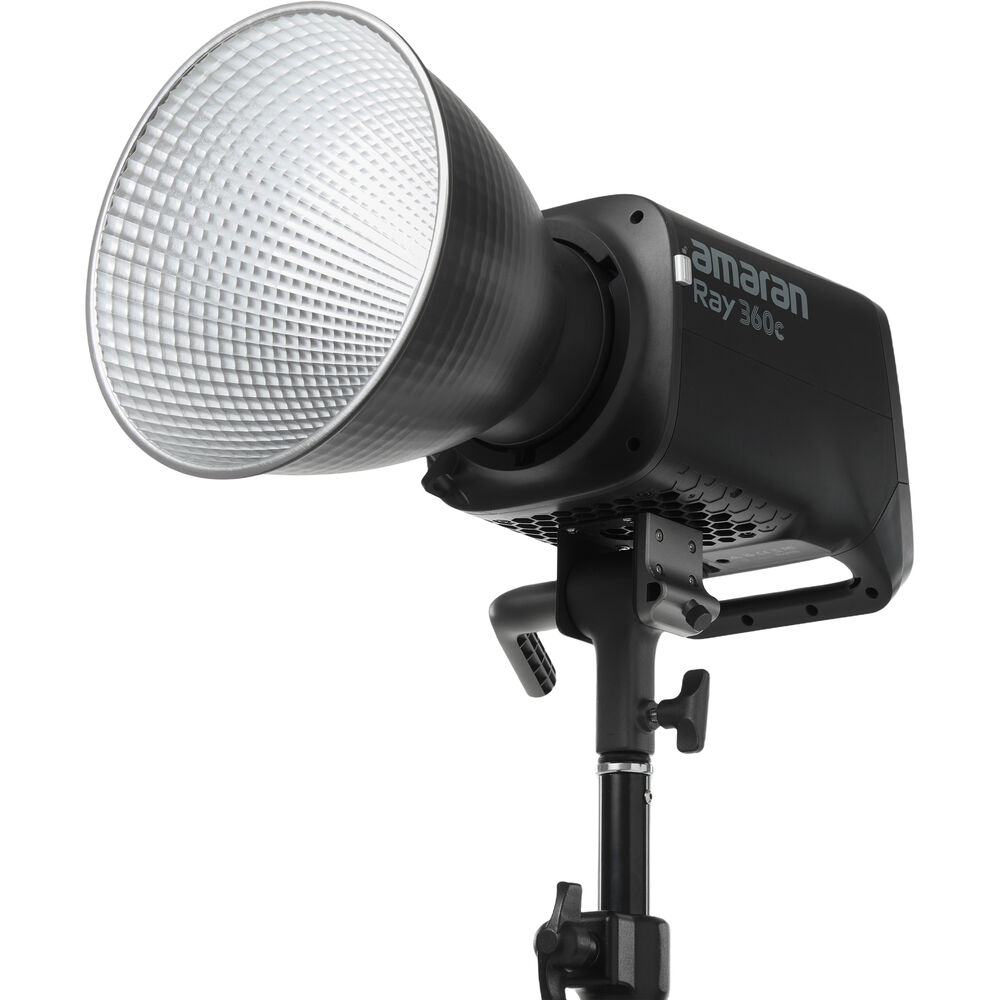

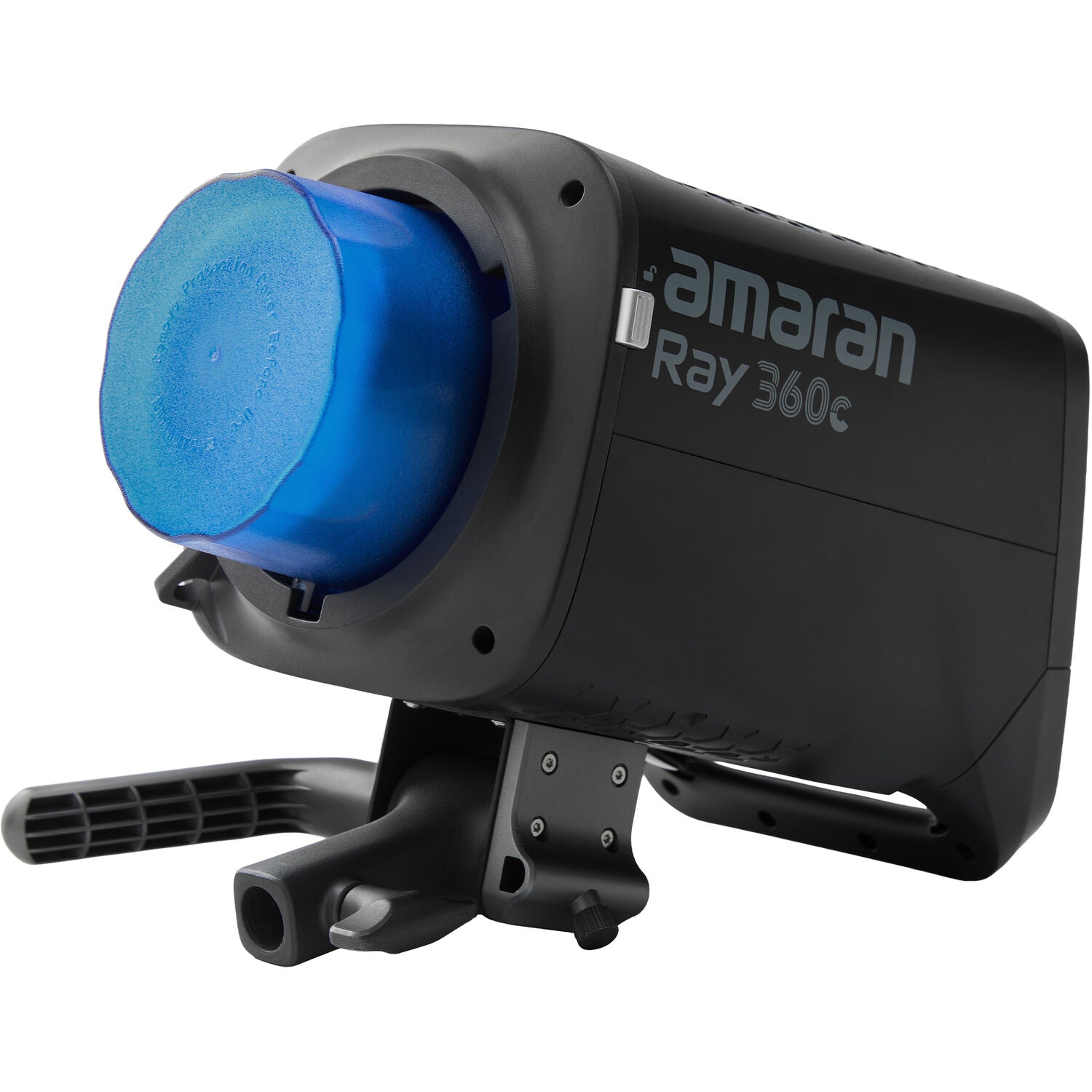

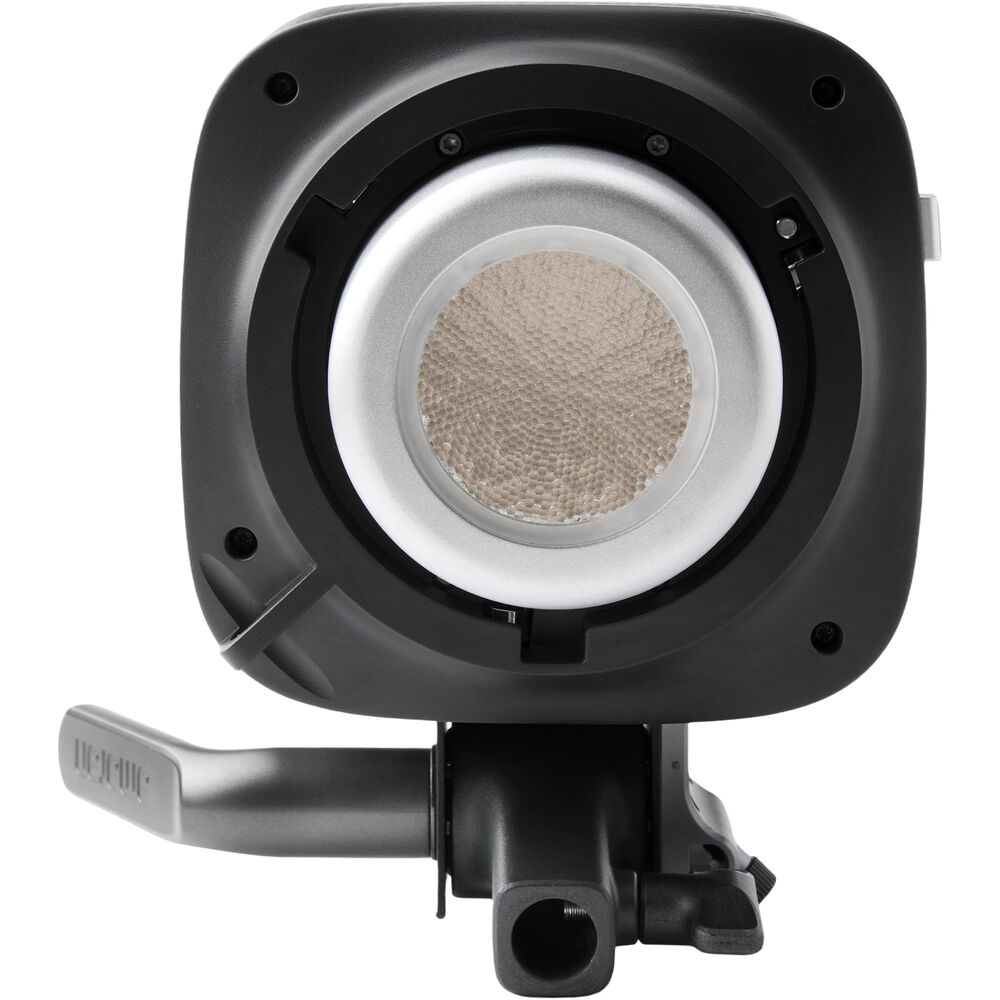

AMARAN Ray 360c RGB
AMARAN Ray 360c RGB
|
Key Specifications |
|
|
Item Type |

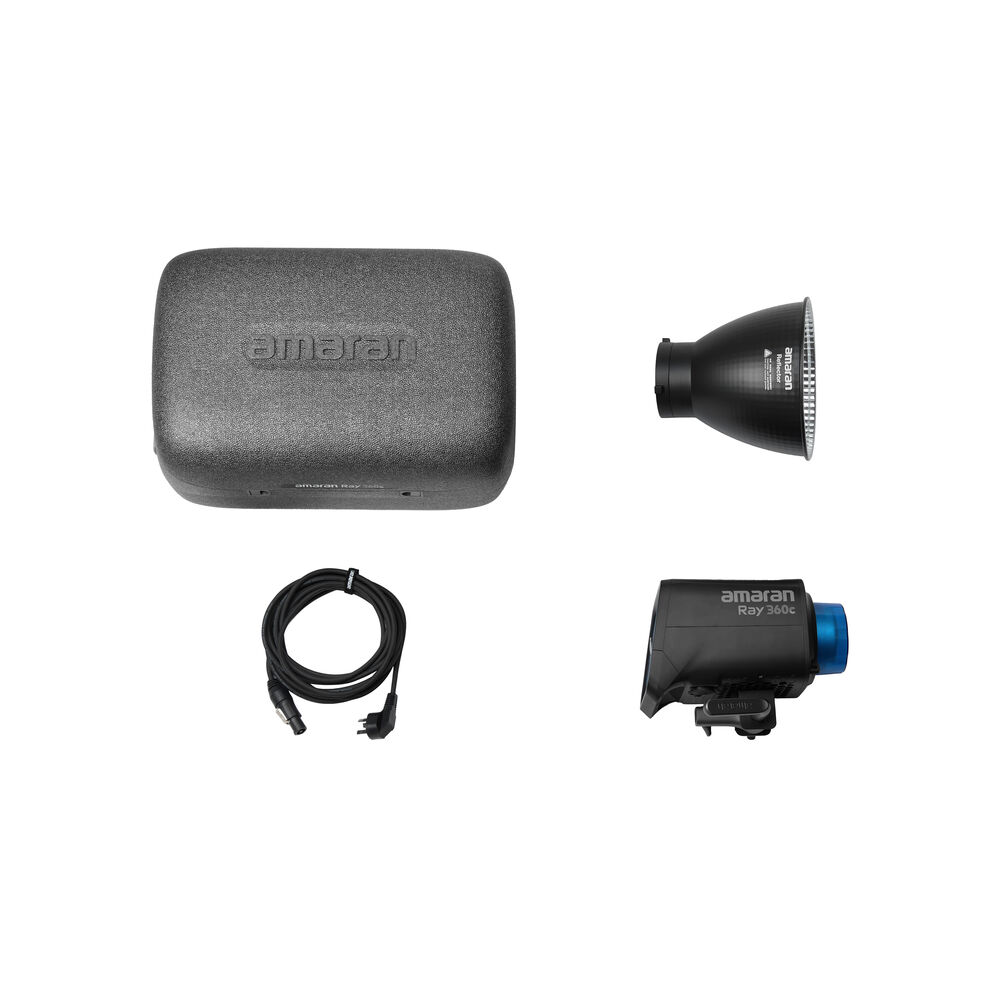

1 × COB LED Monolight |
|
Included Light Modifier |

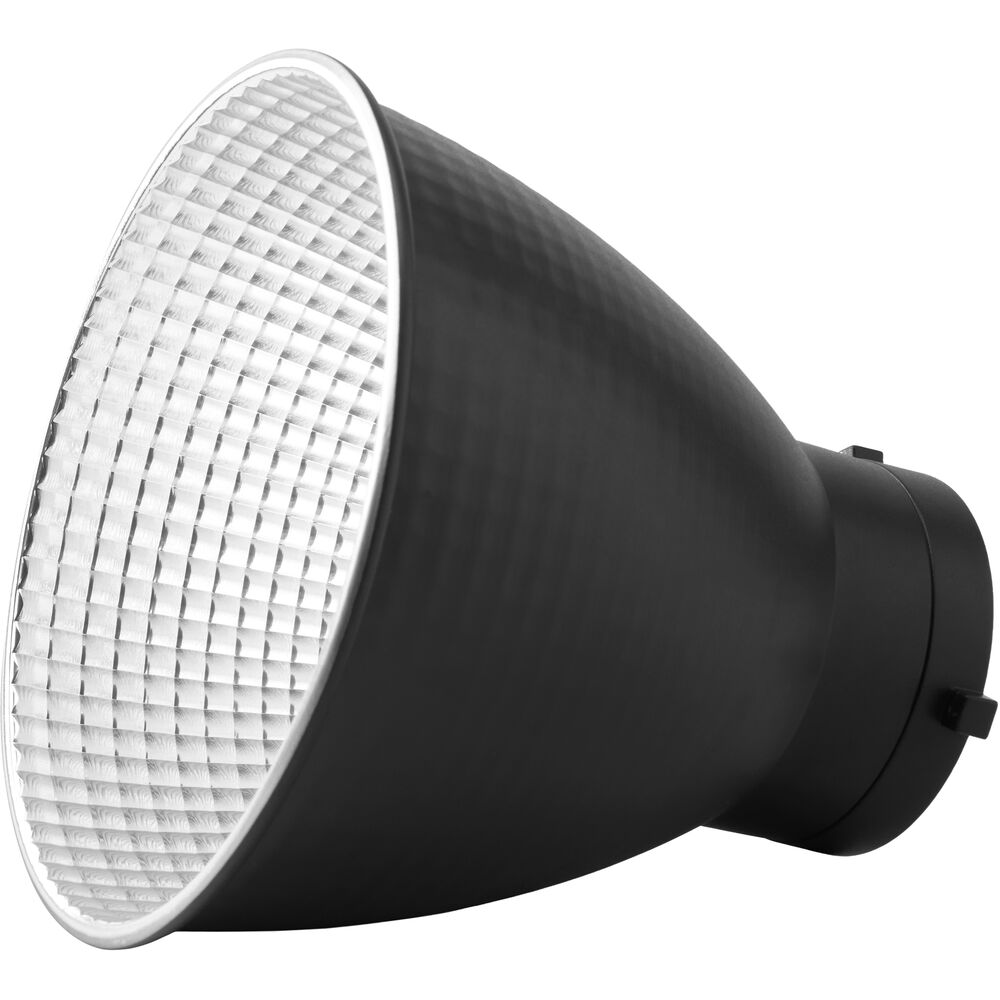

1 × Reflector |
|
Included Storage Case |
Yes |
|
Lumens |
23,174 lm |
|
Photometric Performance |
|
|
3200K (Unmodified) |
70° Beam Angle 15,900 Lux @ 1 m (3.3 ft) 1,850 Lux @ 3 m (9.8 ft) |
|
3200K (With Reflector) |
45° Beam Angle 41,800 Lux @ 1 m (3.3 ft) 4,180 Lux @ 3 m (9.8 ft) |
|
5600K (Unmodified) |
70° Beam Angle 17,040 Lux @ 1 m (3.3 ft) 1,970 Lux @ 3 m (9.8 ft) |
|
5600K (With Reflector) |
45° Beam Angle 44,600 Lux @ 1 m (3.3 ft) 4,360 Lux @ 3 m (9.8 ft) |
|
Color & Light Quality |
|
|
Color Temperature |
1800K – 20,000K 2300K – 10,000K |
|
Color Modes |
RGB, Daylight, Tungsten |
|
CRI |
95 |
|
TLCI |
95 |
|
TM-30 |
Rf 94 Rg 100 |
|
SSI |
80 @ 5600K 87 @ 3200K |
|
Dimming |
0% – 100% (App-Controlled, Built-In Dimmer, DMX) |
|
Cooling System |
Fan Cooled |
|
Beam Angle |
70° (Unmodified) 45° (With Included Reflector) |
|
Preprogrammed Effects |
Yes |
|
Umbrella Mount |
Yes |
|
Accessory Mount |
Bowens S Mount |
|
Connectivity |
|
|
Wireless Control |
Bluetooth |
|
Mobile App |
amaran App (Android & iOS) Remote Control & Firmware Updates |
|
Wireless Range |
80 m (262.5 ft) |
|
Power & I/O |
|
|
Power Source |
AC Power (Cable Included) |
|
Input Power |
100 – 240 VAC, 50/60 Hz |
|
Power Consumption |
410 W Maximum |
|
Inputs / Outputs |
1 × AC Power Input (100 – 240 VAC) 1 × USB-C DMX / Firmware Input DMX Adapter Required (Not Included) |
|
Included Cable |
1 × AC Power Cable (5 m / 16.4 ft) |
|
Power Pass-Through |
No |
|
Mounting |
|
|
Fixture Mounting |
1 × 5/8" Receiver (Via Swivel Mount) |
|
Display & Protection |
|
|

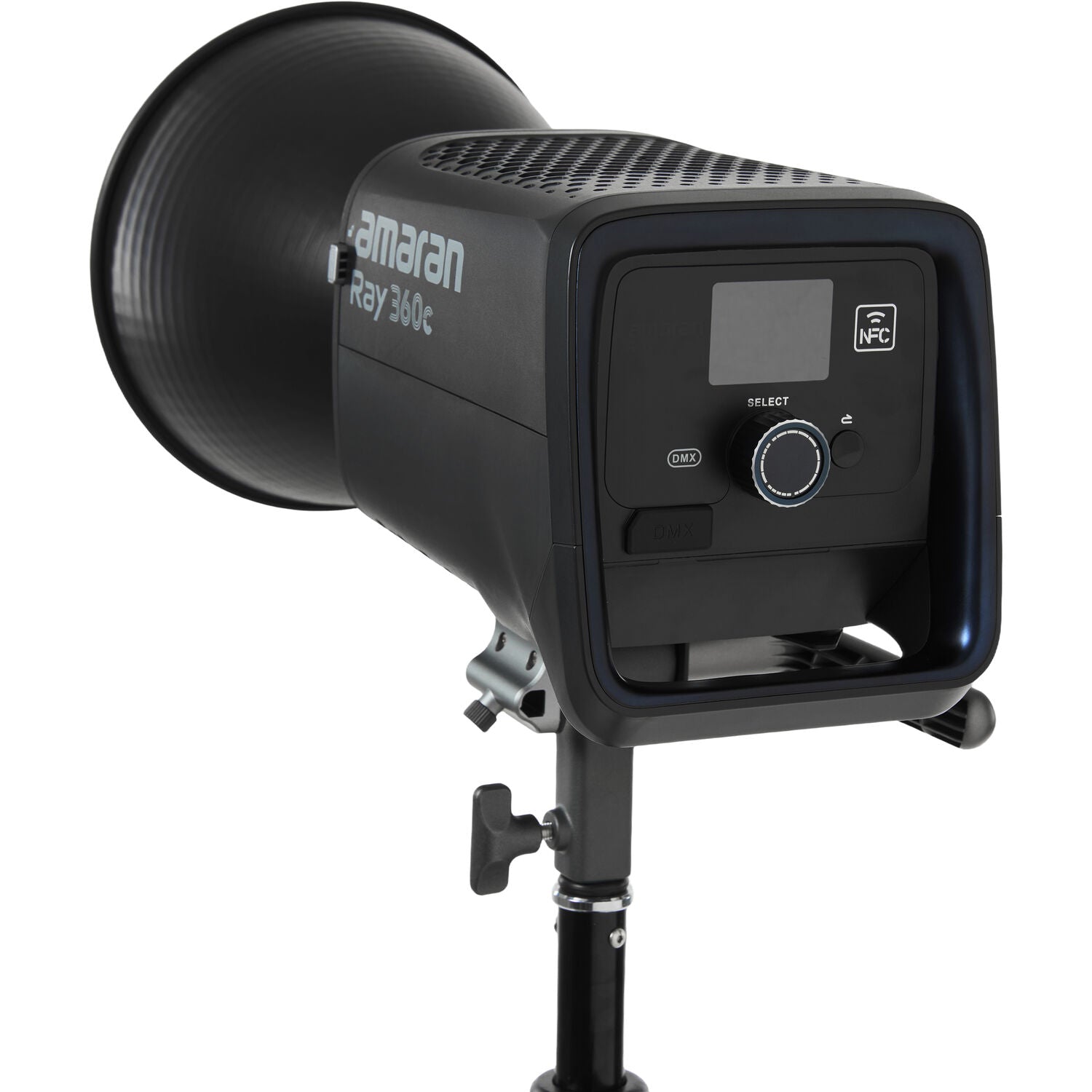

Display |
LCD |
|
Environmental Resistance |
IP54 Dust & Water Resistant |
|
Environmental |
|
|
Operating Temperature |
-10°C to 40°C (14°F to 104°F) |
|
Storage Temperature |
-20°C to 80°C (-4°F to 176°F) |
|
Physical Specifications |
|
|
Dimensions |
25.5 × 16.51 × 14.81 cm (10.04 × 6.5 × 5.83 in.) |
|
Weight |
3.3 kg (7.28 lb) |
|
Packaging Information |
|
|
Package Weight |
11.26 lb |
|
Box Dimensions (L × W × H) |
19.7 × 13.8 × 9.9 in. |
AMARAN Ray 360c RGB Accessories
- No accessories available.
