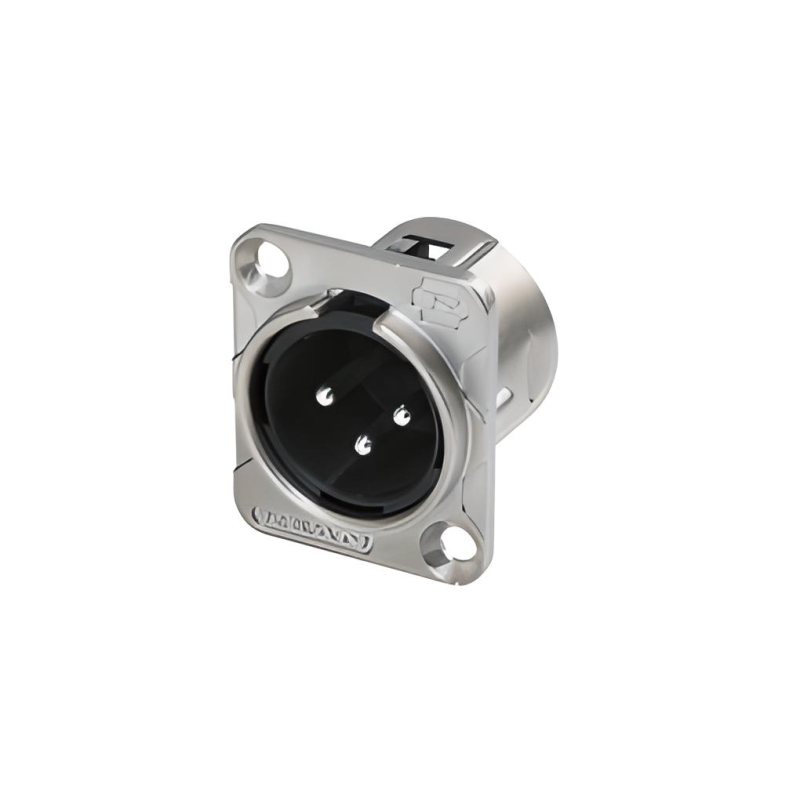

REAN RC3MDL
REAN RC3MDL
|
Key Specifications |
|
|
Connection Type |
XLR |
|
Gender |
Male |
|
Electrical Specifications |
|
|
Insulation Resistance |
>1 GΩ |
|
Contact Resistance |
≤5 mΩ |
|
Rated Current |
≤10 A |
|
Mechanical Specifications |
|
|
Lifetime |
>1000 Mating Cycles |
|
Insertion Force |
≤20 N |
|
Withdrawal Force |
≥20 N |
|
Material & Plating Specifications |
|
|
Housing |
Zinc (Nickel Plated) |
|
Male Insert |
PA6+30%GF |
|
Pin Contact |
Brass (Tin & Cerium Plated) |
|
Ground Contact |
Bronze (Tin & Cerium Plated) |
REAN RC3MDL Accessories
- No accessories available.
