Key Specifications

Product Model

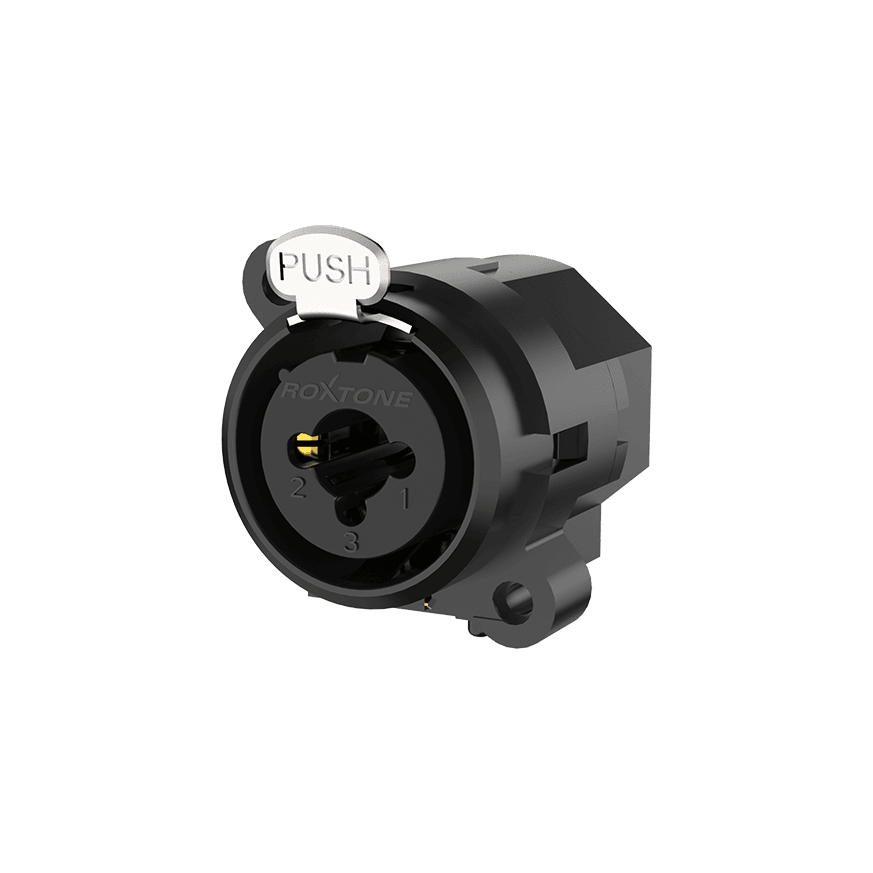

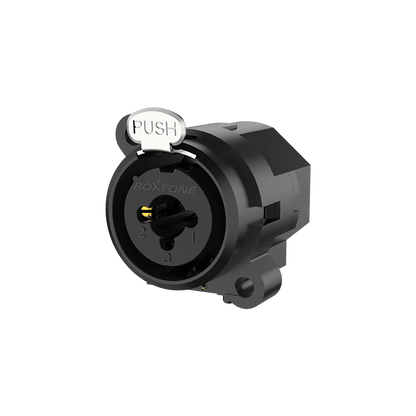

Roxtone RC6FS

Product Type

• 3-Pole XLR Female & 6.3mm (1/4") TRS Jack Combo Socket
• Profile: Space-Saving Hybrid Chassis Interface

Material Specifications

Component Build

• Housing: PA66 (High-Grade Polyamide)
• Contacts: Bronze (High-memory spring retention)
• Contact Plating: Gold (Standard for all pins)

Mechanical & Design Data

Dual Compatibility

• Input A: 3-Pole XLR Male Connector
• Input B: 6.3mm (1/4") Mono or Stereo Jack Plug

Form Factor

Compact Panel Mount (Standard D-Series Footprint)

Physical Specifications

Application Details

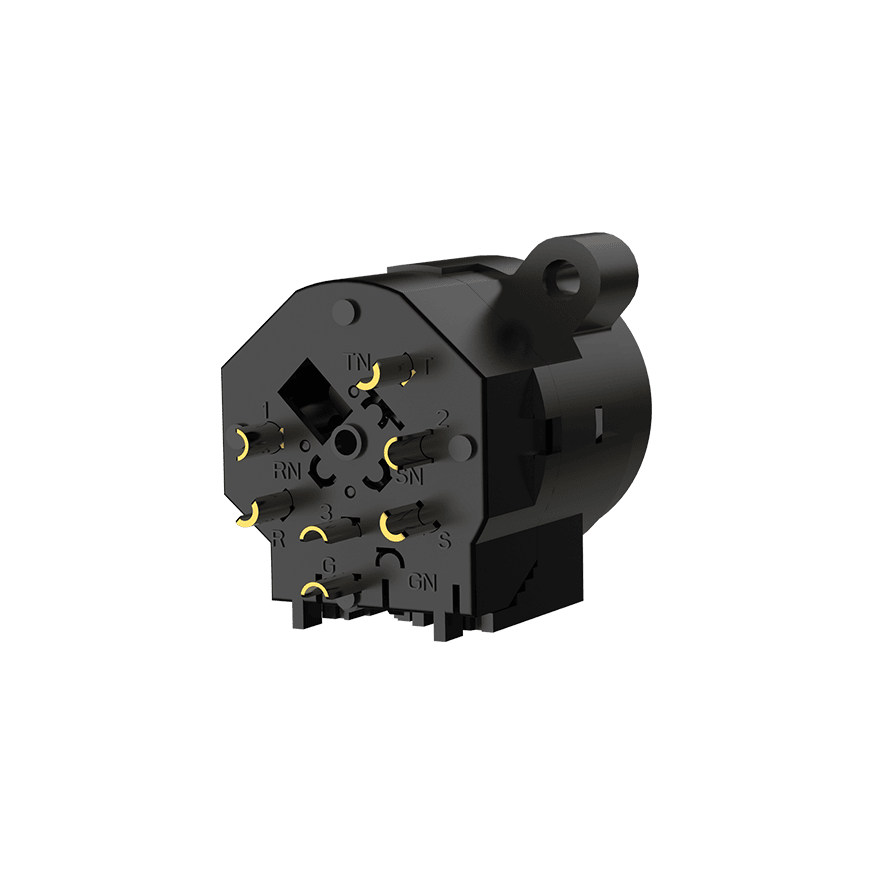

• Mounting: Solder terminals (PCB or Wire)
• Target Gear: Audio Interfaces, Powered Speakers, and Mixers
• Durability: Bronze contacts ensure secure mating for both XLR and Jack plugs
• Performance: Gold plating provides superior anti-corrosion and conductivity
