Key Specifications

Construction

Conductor Material

Bare Copper

Conductor Size

18 AWG Solid

Insulation Material

Foamed Polyethylene (PE)

Insulation Wall Thickness

0.070" Nominal

Shield Material

Bare Copper Braid

Shield Coverage

95%

Jacket Material

PVC

Jacket Color

Black

Jacket Wall Thickness

0.035" Nominal

Overall Diameter

0.272" Nominal

Environmental

Application

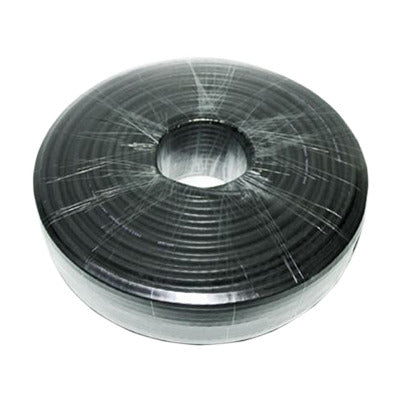

Outdoor Direct Burial CCTV Cable

Location Rating

Suitable for Wet Locations

Temperature Rating

-20°C to 75°C

Voltage Rating

300 V

Electrical Properties

Capacitance

17.3 pF/ft Nominal

Impedance

75 Ohms

Velocity of Propagation

78%

DC Resistance

75 Ohms @ 20°C

Maximum Attenuation

10 MHz

0.26 dB / 100 ft

100 MHz

2.05 dB / 100 ft

400 MHz

4.15 dB / 100 ft

700 MHz

5.60 dB / 100 ft

1000 MHz

6.70 dB / 100 ft
