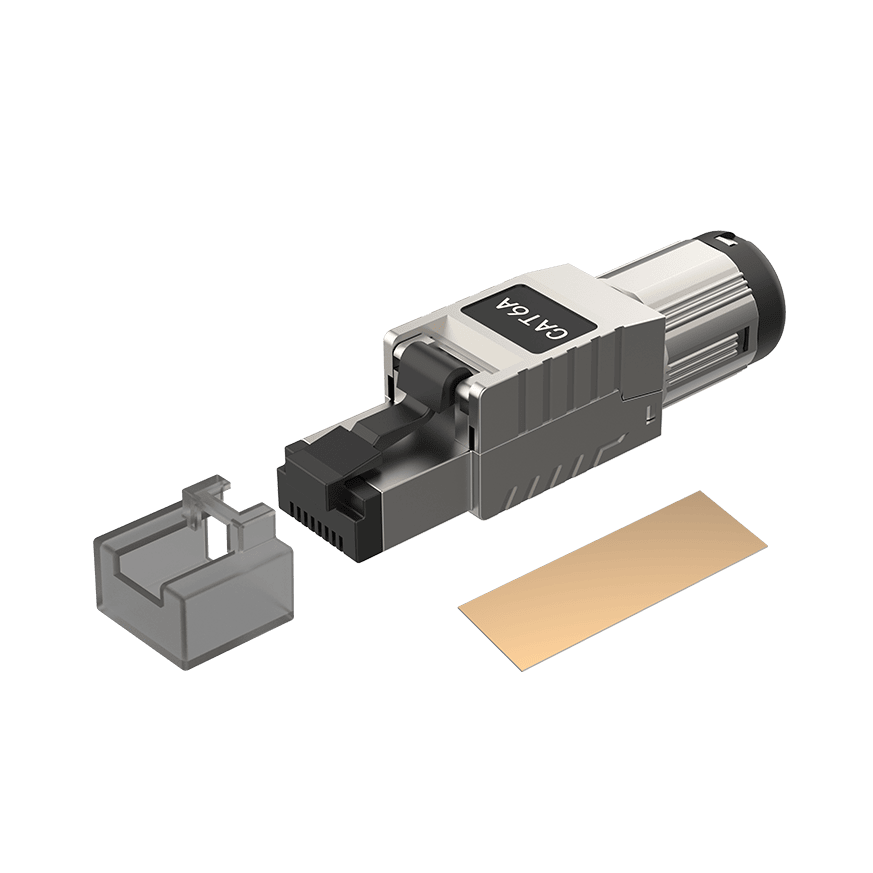

RJ45C6A-MH

IP20 protection by dust-cap and screw-in boot design
CAT6A field connector, full shielded, screw-in boot type,toolless termination
GHMT verified IEC605 12-99-002 PoE type III 60W and IV 100W capability
IEEE802.3bt type III and IV application
Power over HDBaseT (PoHDBaseT - up to 100W) application
High quality connectors ensure system reliability and stability by press-fit assembly process
CAT6A patch cord component-rated
IEC60603-7 dimensions and structural reliability complied

ROXTONE

₱726.00 VAT INC.

₱726.00

UNIT: PIECE/S

Product Code: SKU:ROXT-RJ45C6AM-CHN-3328

IP20 protection by dust-cap and screw-in boot design
CAT6A field connector, full shielded, screw-in boot type,toolless termination
GHMT verified IEC605 12-99-002 PoE type III 60W and IV 100W capability
IEEE802.3bt type III and IV application
Power over HDBaseT (PoHDBaseT - up to 100W) application
High quality connectors ensure system reliability and stability by press-fit assembly process
CAT6A patch cord component-rated
IEC60603-7 dimensions and structural reliability complied

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE RJ45C6A-MH

Key Specifications
Product Type	RJ45 Field Assembly Connector Standard: CAT6a (10 Gigabit Ethernet)
Material Specifications
Protective Housing	Zinc Alloy Diecast (Full Shielding)
Contacts	Bronze
Contact Plating	Gold 30μ" (Industrial Grade)
Cable & Wiring Compatibility
Wire Gauge (AWG)	Stranded: 24/7 \| Solid: 22/1
Wire Insulation O.D.	1.2mm - 1.65mm
Cable Jacket O.D.	7.0mm - 8.5mm
Performance Details
Technical Features	Frequency: Optimized for 500 MHz Shielding: 360° Zinc shell for EMI/RFI protection Installation: Field terminable (Tool-less design) Durability: Heavy-duty metal construction for touring/industrial use
