Key Specifications

Form Factor

Desktop

Display

5.5" Color Touchscreen

Channels of I/O

Analog: 4 Inputs / 4 Outputs

Built-In DSP

Yes

Maximum Sampling Rate

48 kHz / 24-Bit

Number of Microphone Inputs

4

Built-In Microphone

No

Input Level Adjustment

6 × Fader

Number of Headphone Mixes

4 × Assignable with Mix-Minus

Signal Processing

Pad

No

Gain/Trim Range

0 to 76 dB

Solo/Mute

Solo-in-Place/AFL, Mute, PFL per Input Channel

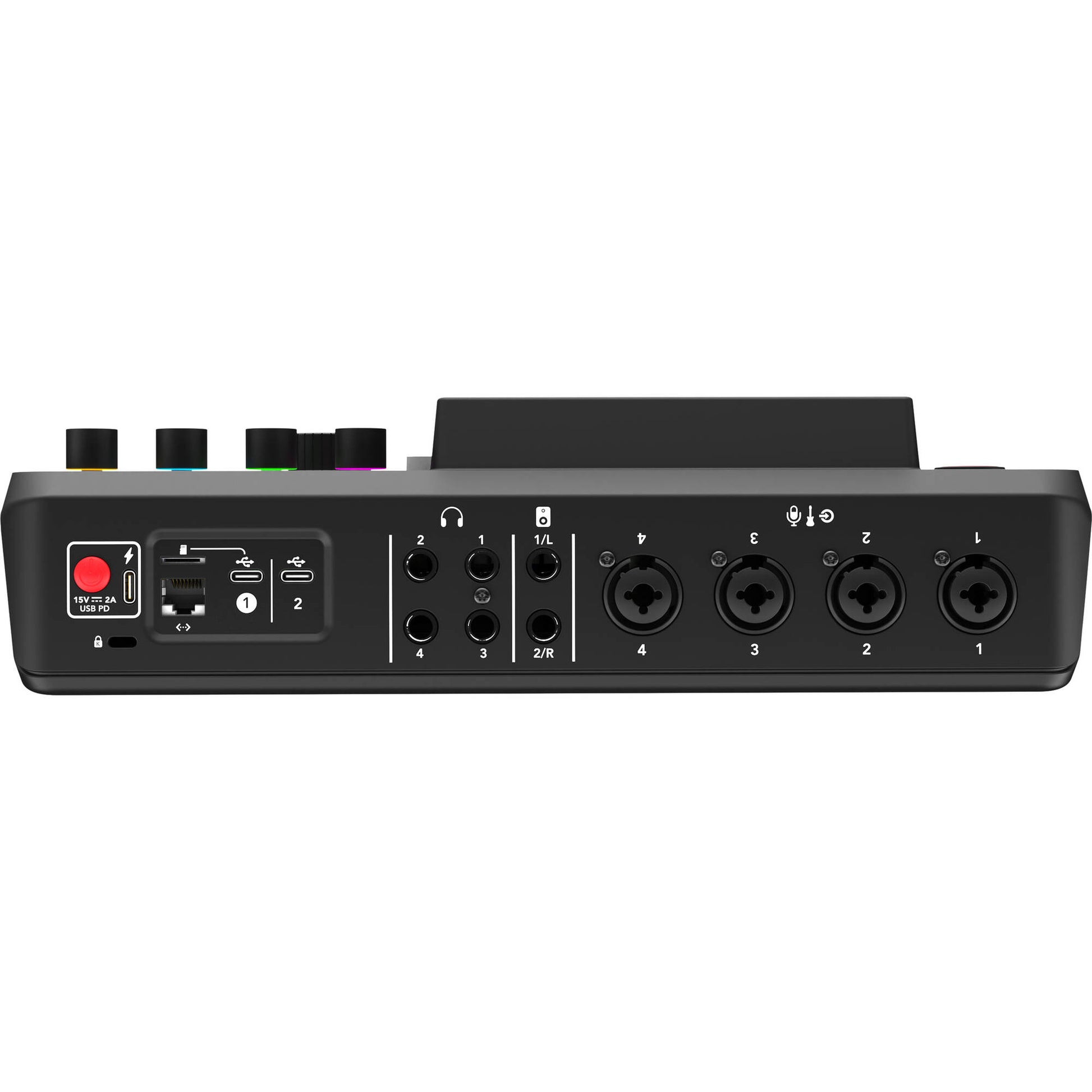

Connectivity

Analog Audio I/O

4 × Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input
2 × 1/4" TRS Balanced Line Output
4 × 1/4" TRS Unbalanced Headphone Output

Phantom Power

48 V, Selectable On/Off

Digital Audio I/O

No

Host Connection

2 × USB-C

Host Connection Protocol

USB 3.0 / 3.1 / 3.2 Gen 1

USB (Non-Host)

No

MIDI I/O

No

Expansion Slots

No

Wireless

Wi-Fi / Bluetooth

Performance

Frequency Response

Mic Inputs: 20 Hz to 20 kHz
Monitor Outputs: 20 Hz to 20 kHz

Maximum Output Level

Line Outputs: +4 dBu

Headphone Output Power

250 mW

Impedance

Mic Inputs: 4 Kilohms
Hi-Z Inputs: 1 Megohm

EIN

-131.5 dBV A-Weighted

Digital Audio

Sample Rates

48 kHz

Sample Rate Conversion

No

Bit Depths

24-Bit

Audio Storage & Playback

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC

Compatibility

OS Compatibility

Computer: macOS 10.15 or Later / Windows 10.18 or Later
Mobile: iPadOS Only

Mobile Device Compatibility

iPad

Power

Power Requirements

AC/DC Power Adapter (Included) or USB Bus Power

AC/DC Power Adapter

15 VDC at 2 A (Included)

Physical

Dimensions

12.2 × 10.7 × 3.3" (30.9 × 27.3 × 8.3 cm)

Weight

4.4 lb / 2.0 kg

Packaging Information

Package Weight

7.02 lb

Box Dimensions (L × W × H)

12.9 × 11.9 × 5.6"
