Key Specifications

Model

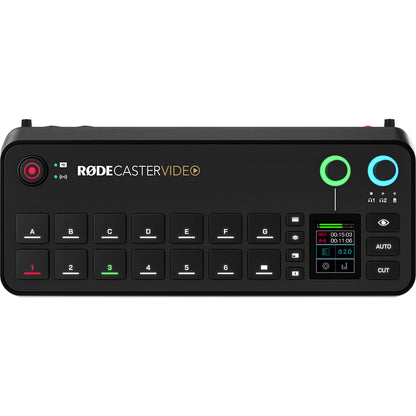

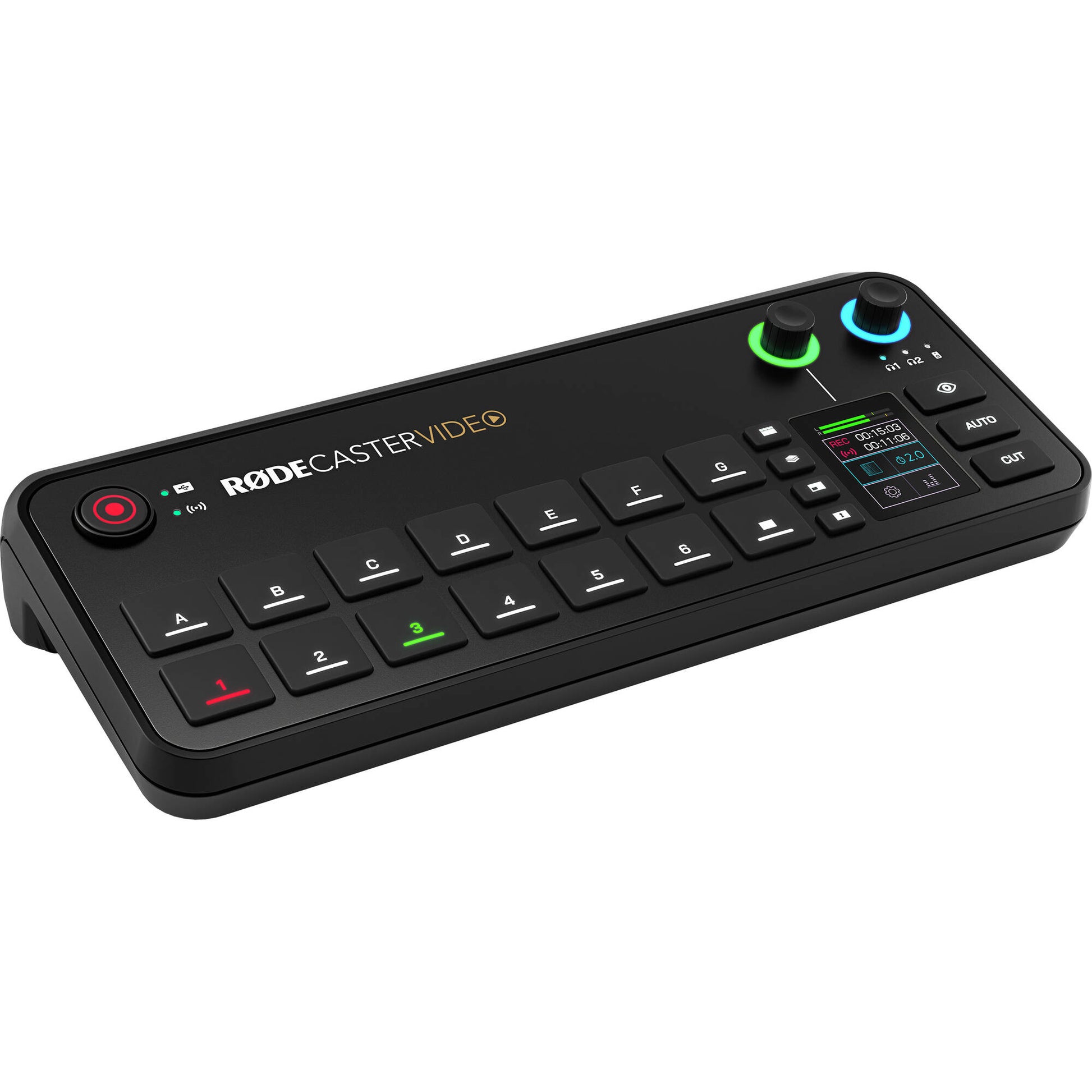

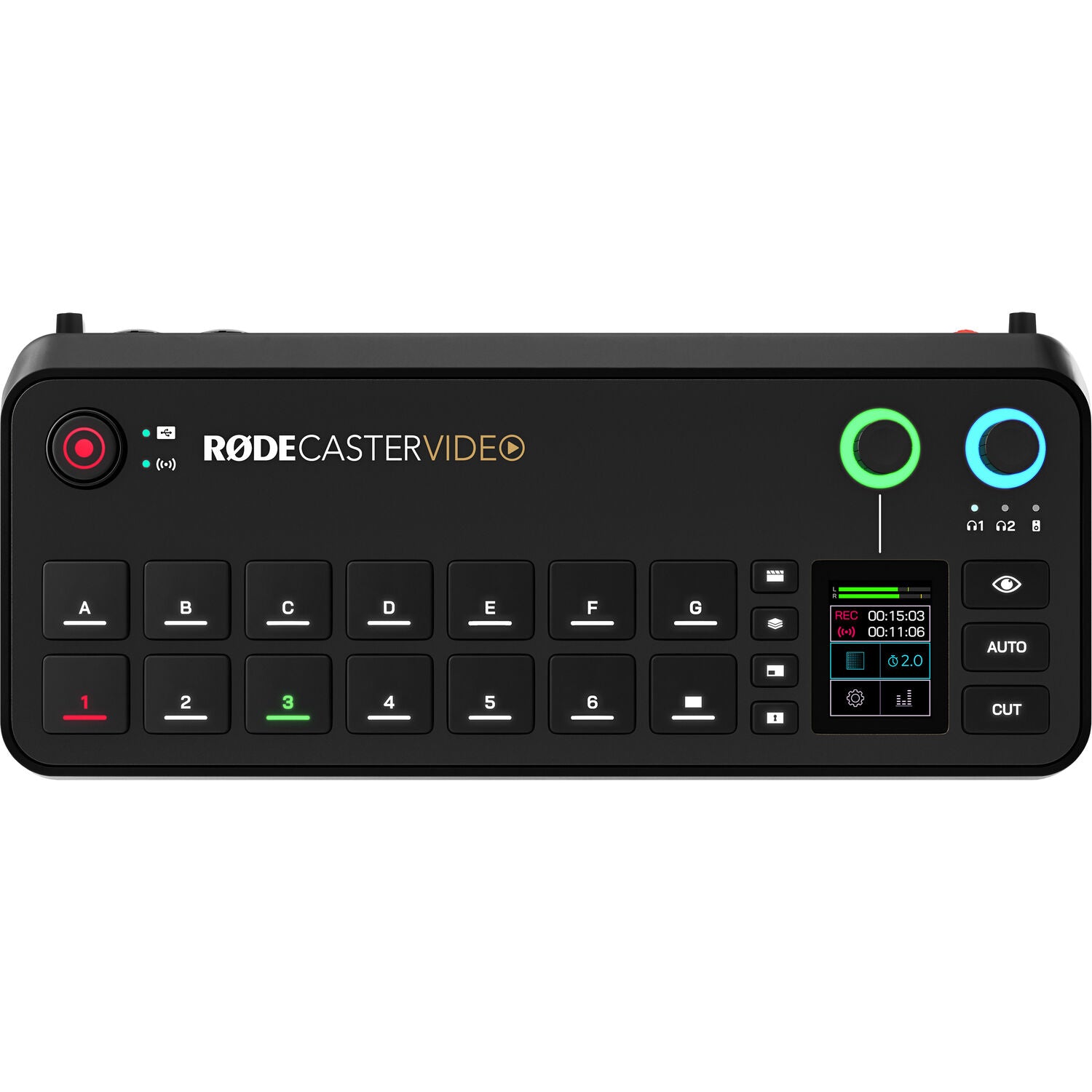

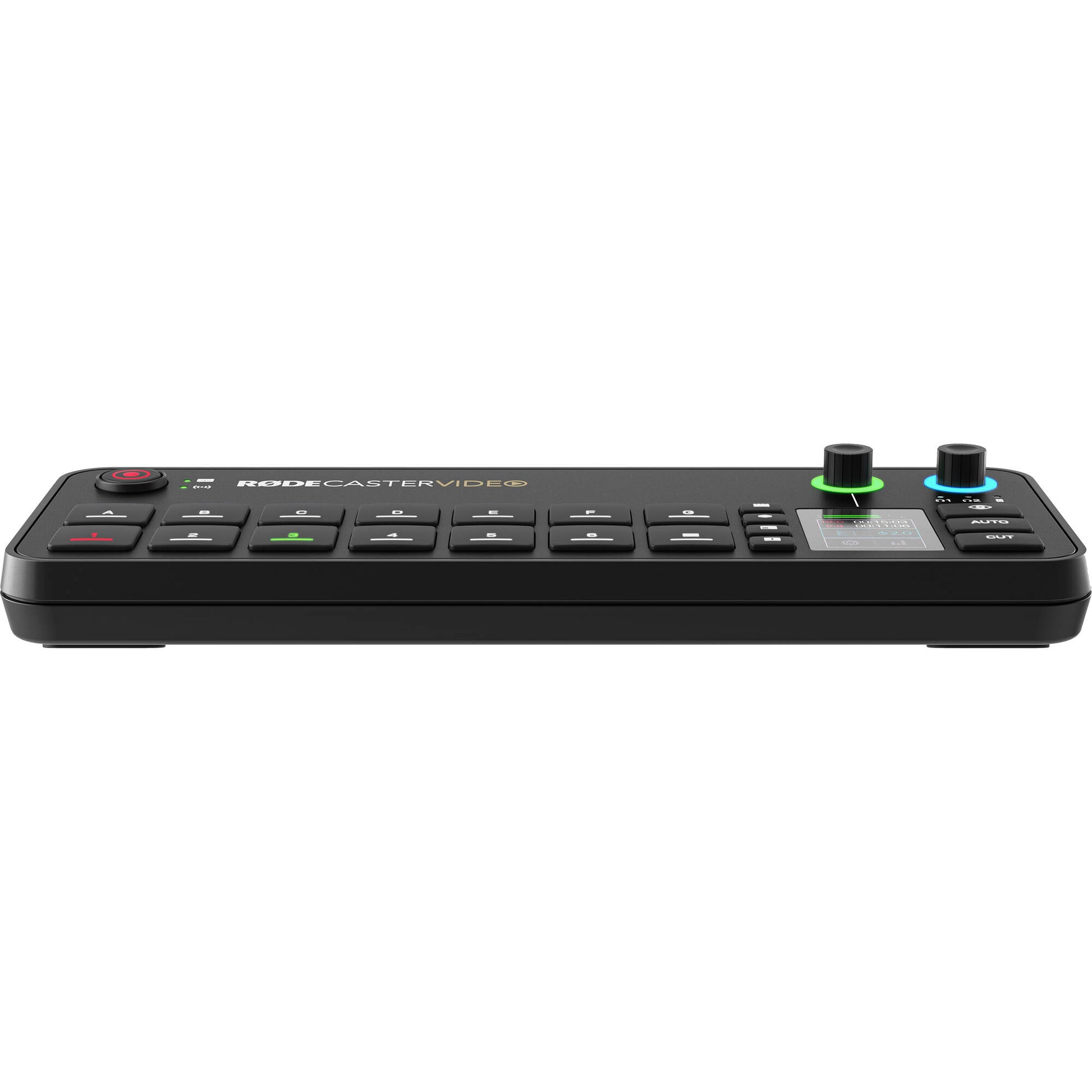

RODE RODECaster Video

M/E Layers

9 M/E Layers

Effect Types

2 × Chroma Key

Downstream Keys

2 × Overlay

Audio Mixing

20-channel mixing

Switching Type

Pushbutton

Processing Resolution

1080p at 23.98/24/25/29.97/30/50/59.94/60

Color Processing

8-bit 4:4:4 RGB

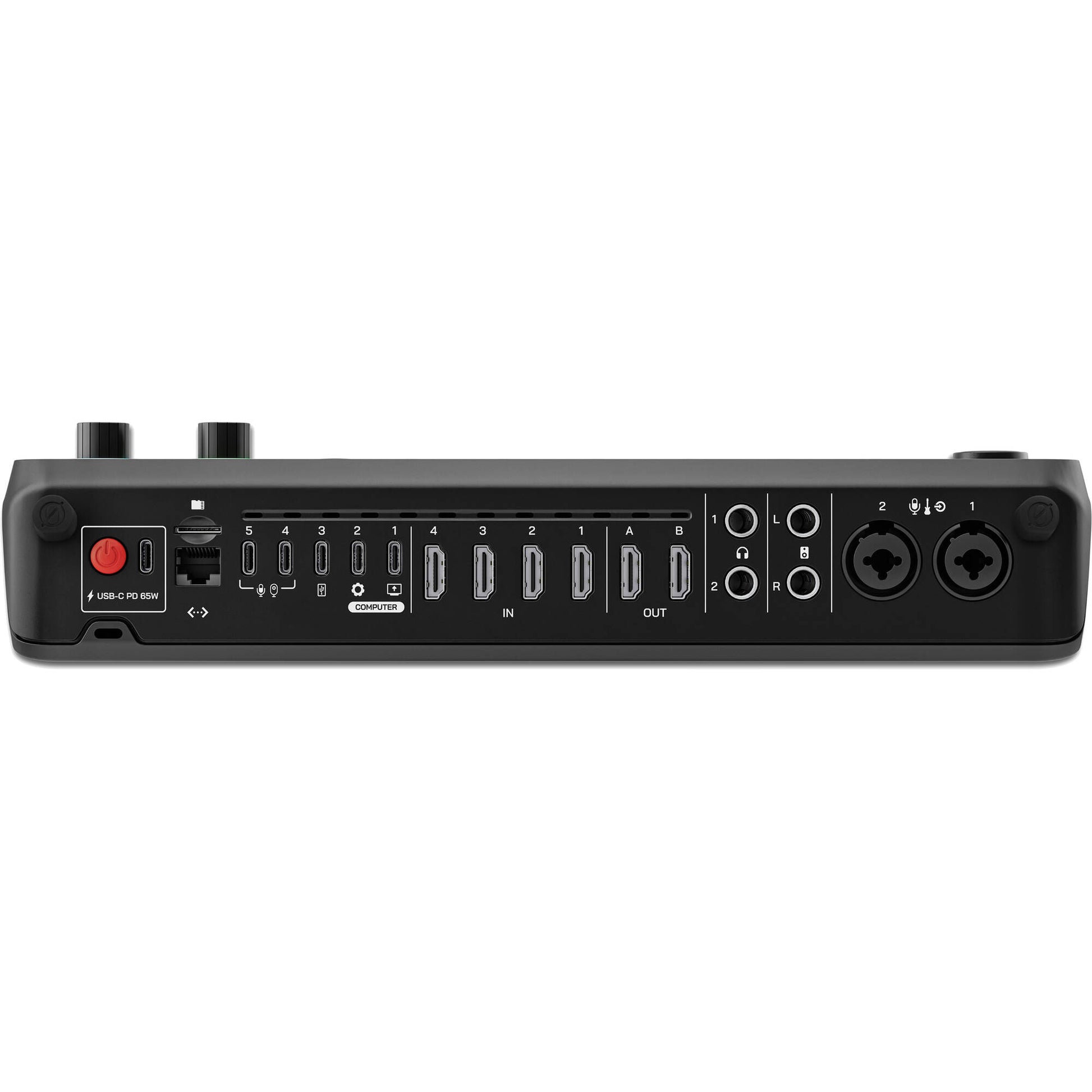

Video Inputs

4 × HDMI (1.4b), 2 × USB-C (UVC)

Input Video Formats

HDMI: 8/10/12-bit 4:4:4/4:2:2 RGB, YUV; USB-C: 4:4:4/4:2:2 YUV

Supported Input Resolutions

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 25/29.97/30 fps

Audio Inputs

2 × Combo XLR-1/4" TRS, 5 × Proprietary (shared with video)

Embedded Audio Input

Wireless, USB-C, HDMI

Video Outputs

2 × HDMI

Output Video Format

HDMI 8-bit 4:4:4 RGB/YUV, up to 1080p60

Audio Outputs

2 × 1/4" TRS, 2 × 1/4" TRS Line

USB Connectivity

3 × USB-C (Stereo)

Other Connectivity

1 × RJ45 LAN

HDCP Support

No

IP Streaming

1920 × 1080 encoding at up to 60p

Streaming Protocol

RTMP

Compatible Streaming Services

Facebook Live, Twitch, YouTube Live

Recording Media

1 × microSD card slot

Recording Format

1920 × 1080p (H.264/AVC)

Display

2-inch display

OS Compatibility

macOS 10.15 or later, Windows 10/11

Wireless Connectivity

Wi-Fi 6 (802.11ax), Bluetooth 5.3

Power Input

USB-C

Power Consumption

20 VDC at 3 A (60 W)

Dimensions

305.9 × 132 × 61.4 mm (12 × 5.2 × 2.4 inches)

Weight

1.257 kg (2.8 lb)
