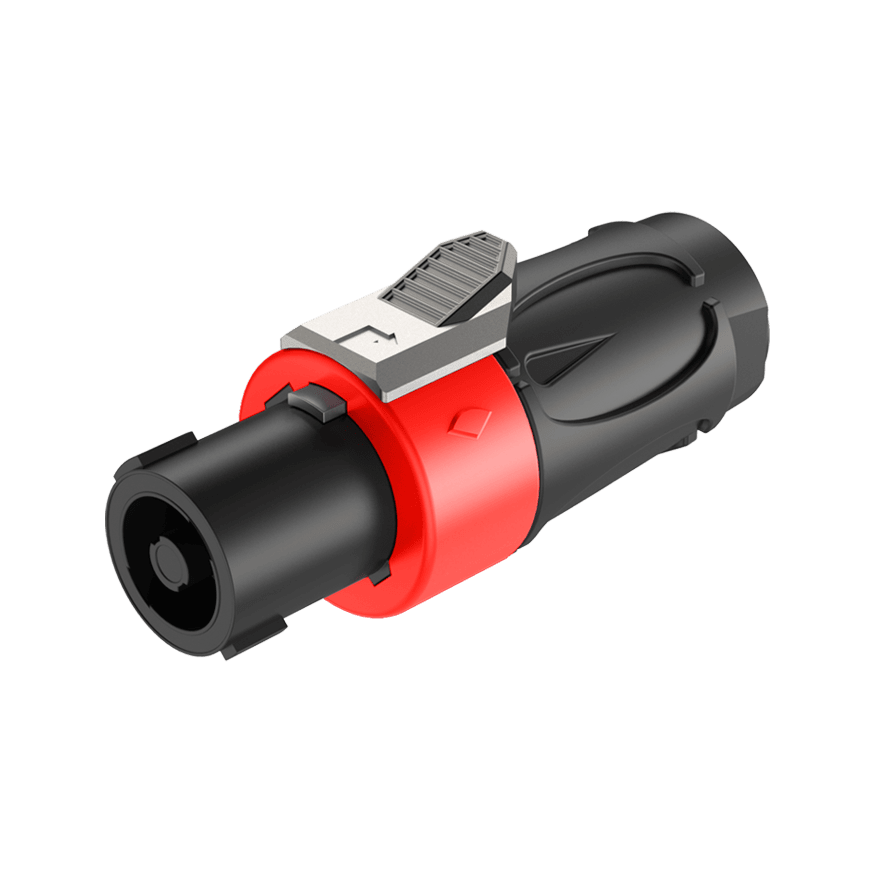

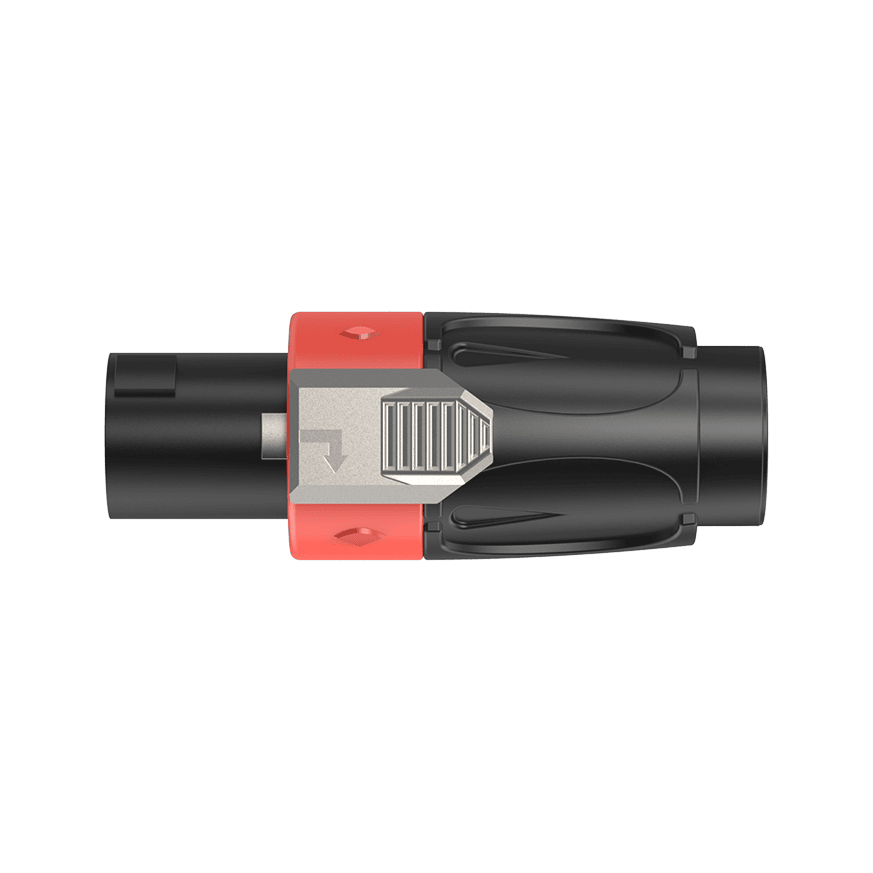

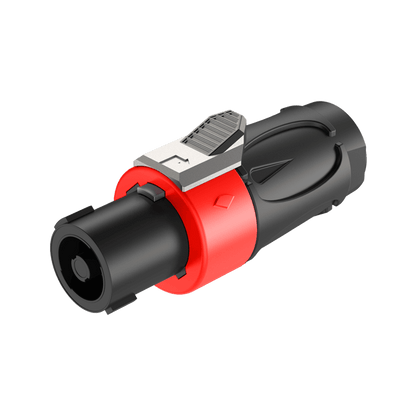

RS4F-N-RD

Only 3 parts, easy for assembly
Improved design for latch lock
Improved brass contacts ensure the conductivity, have higher current rating for the operation of high power speakers and amplifiers
1 piece strain-relief for easy tightening the cable diameter form
8 to 12mm, with an additional accessory RSA from 5-7mm
Patent-protected

ROXTONE

₱202.00 VAT INC.

₱202.00

UNIT: PIECE/S

Product Code: SKU:ROXT-RS4FNRD-CHN-6160

Only 3 parts, easy for assembly
Improved design for latch lock
Improved brass contacts ensure the conductivity, have higher current rating for the operation of high power speakers and amplifiers
1 piece strain-relief for easy tightening the cable diameter form
8 to 12mm, with an additional accessory RSA from 5-7mm
Patent-protected

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE RS4F-N-RD

Key Specifications
Product Model	Roxtone RS4F Series
Product Type	4-Pole Speaker Female Connector Profile: High-Current Audio Power Interface
Material Specifications
Component Build	Housing & Bushing: PA6 30%GF (Glass-Fiber Reinforced) Insert: PA6 30%GF Latch: Zinc Alloy Diecast Contacts: Brass with Nickel Plating Strain Relief: POM (Polyoxymethylene)
Model Variations & Identification
RS4F-N-BU	Blue Coding Ring
RS4F-N-GN	Green Coding Ring
RS4F-N-RD	Red Coding Ring
Physical Specifications
Mechanical Details	Locking System: Quick-lock zinc alloy latch Connection Type: Screw terminals or soldering Application: Passive Speakers, Subwoofers, and Power Amplifiers Feature: High heat resistance and mechanical strength
