Key Specifications

Product / Component Type

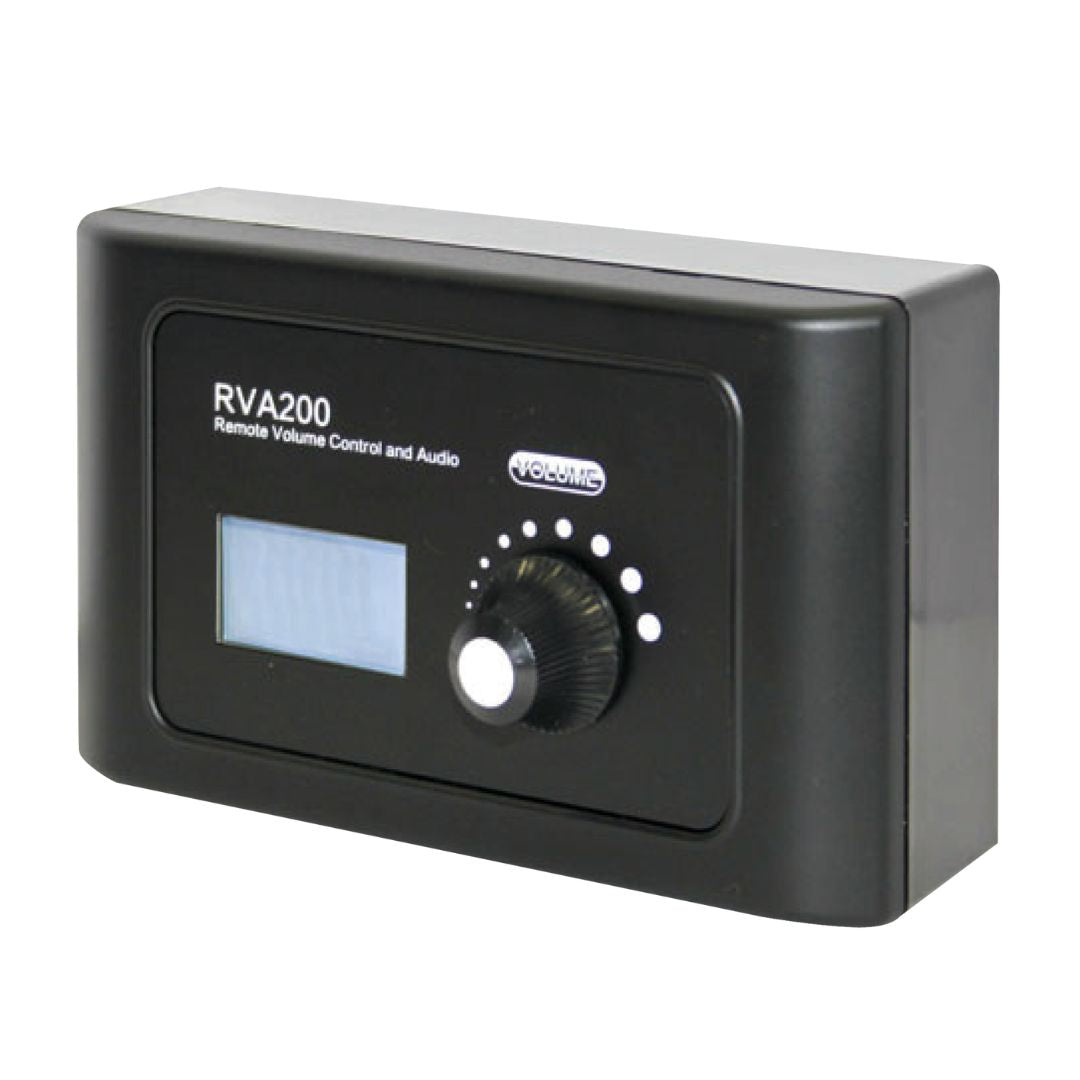

Audio Matrix / RDNet Interface Unit

Connectors

2x 3-Pin Euroblock (5 mm Pitch)

Network / Control Interfaces

RDNet to Matrix via RJ45 (Up to 100 m with CAT-5e Cable)

Audio Performance & Output Specifications

Output Impedance

200 Ω (1%)

Maximum Output Level

+20 dBu

Frequency Response

20 Hz to 20 kHz (0 dB ±1.5 dB)

Dynamic Range

107 dBu Max (A-Weighted)

Crosstalk

-87 dBu (A-Weighted)

Volume Control Range

-∞ to +15 dB

Dimensions & Physical Specifications

Item Dimensions (L×H×D)

147mm x 86mm x 47mm (5.79" x 3.39" x 1.85")
