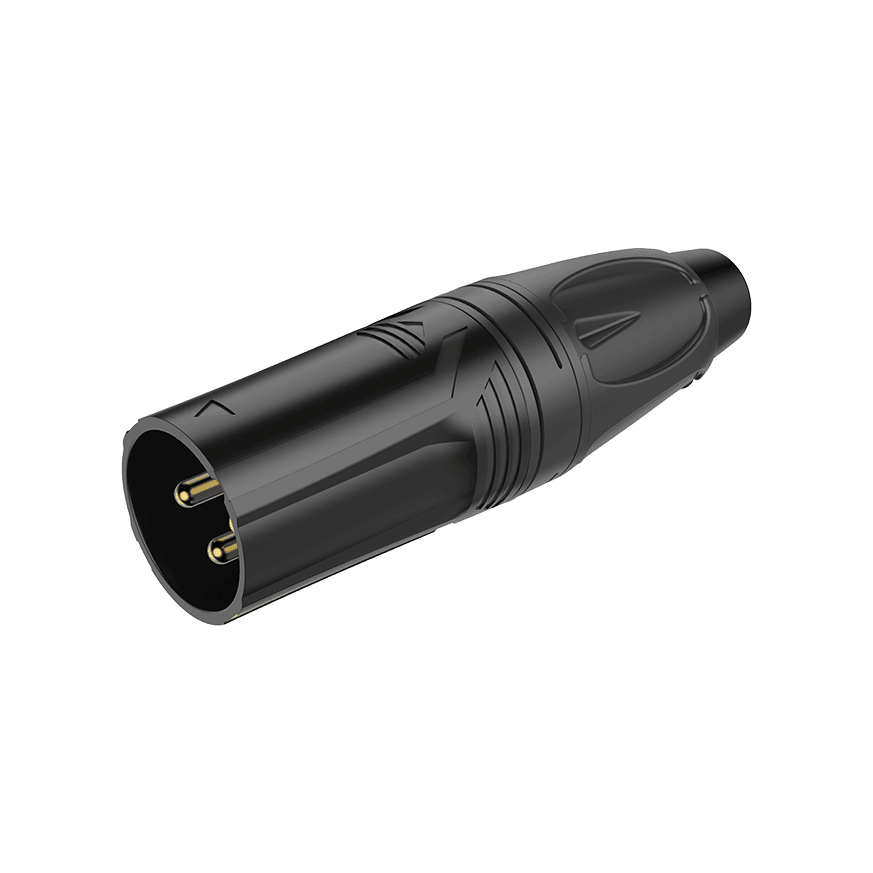

RX3M-BG

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Without locking “window” makes the housing more strength
Special contacts pin with gear and fluting design to avoid moving
ROXTONE brand engraved on the housing
Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
Patent-protected

ROXTONE

₱140.00 VAT INC.

₱140.00

UNIT: PIECE/S

Product Code: SKU:ROXT-RX3MBG-CHN-2582

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Without locking “window” makes the housing more strength
Special contacts pin with gear and fluting design to avoid moving
ROXTONE brand engraved on the housing
Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
Patent-protected

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE RX3M-BG

Key Specifications
Product Model	Roxtone RX3M Series
Product Type	3-Pole XLR Male Cable Connector Profile: Professional Industrial Standard Audio Interface
Material Specifications
Component Build	Housing: Zinc Alloy Diecast Insert: PBT / PA6 30%GF (Glass-Fiber Reinforced) Contacts: Brass Strain-Relief: POM (Polyoxymethylene) internal clamp Bushing/Ring: PA 30%GF
Model Variations & Finish
RX3M-NT	Housing Finish: Nickel Plated Contact Plating: Tin
RX3M-BG	Housing Finish: Black (E-coat) Contact Plating: Gold
Physical Specifications
Mechanical Details	Mounting: Cable-end with internal "chuck-type" strain relief Shell Design: Ergonomic zinc alloy for superior RF shielding Durability: High-strength glass-fiber reinforced bushing Assembly: Large solder cups for easy termination
