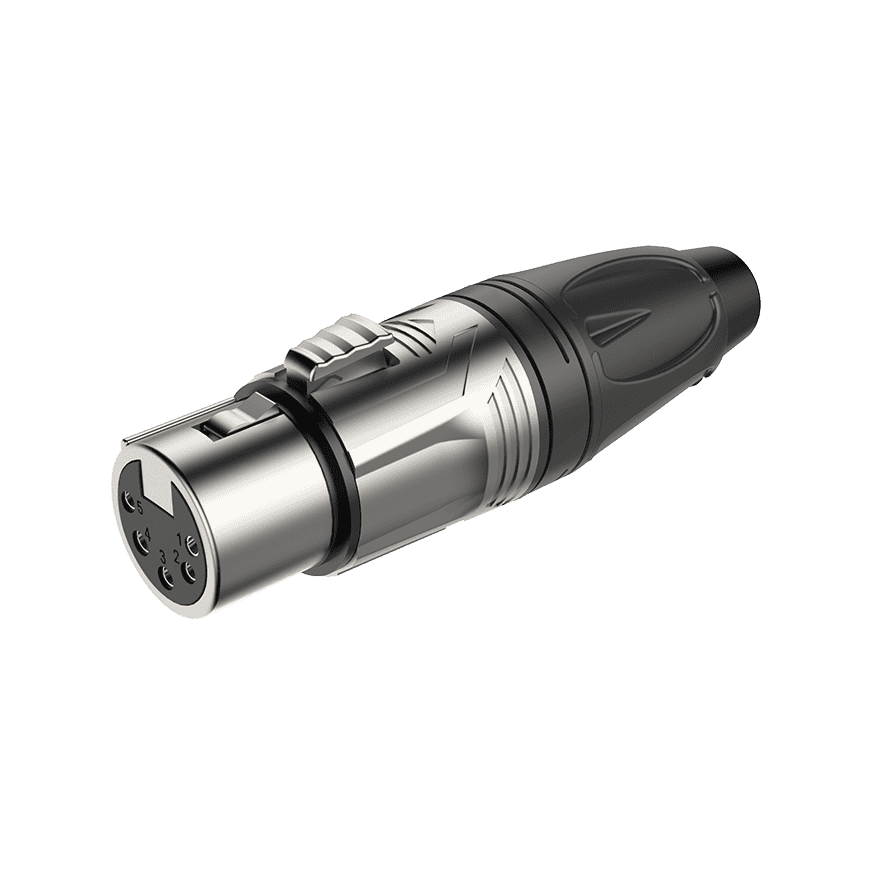

RX5F-NT

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Improved big button for latch lock
Solid brass female contacts, increases conductivity and stability
ROXTONE brand engraved on the housing
Replaceable color ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
Patent-protected

ROXTONE

₱210.00 VAT INC.

₱210.00

UNIT: PIECE/S

Product Code: SKU:ROXT-RX5FNT-CHN-0321

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Improved big button for latch lock
Solid brass female contacts, increases conductivity and stability
ROXTONE brand engraved on the housing
Replaceable color ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
Patent-protected

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE RX5F-NT

Key Specifications
Product Model	Roxtone RX5F Series
Product Type	5-Pole XLR Female Cable Connector Profile: Professional DMX512 & Multichannel Audio Interface
Material Specifications
Component Build	Housing: Zinc Alloy Diecast Insert: PBT (Polybutylene Terephthalate) Contacts: Bronze (High-memory spring retention) Strain-Relief: POM (Polyoxymethylene) Chuck-style clamp Bushing/Ring: PA 30% GF / PA6 30% GF
Model Variations & Finish
RX5F-NT	Housing Finish: Nickel Plated Contact Plating: Tin
RX5F-BG	Housing Finish: Black (E-coat) Contact Plating: Gold
Physical Specifications
Mechanical Features	Connection Type: Solder contacts Locking Mechanism: Precision steel latch lock Application: 5-pin DMX Lighting, Stereo Mics, & Medical Electronics Durability: Impact-resistant glass-fiber reinforced bushing
