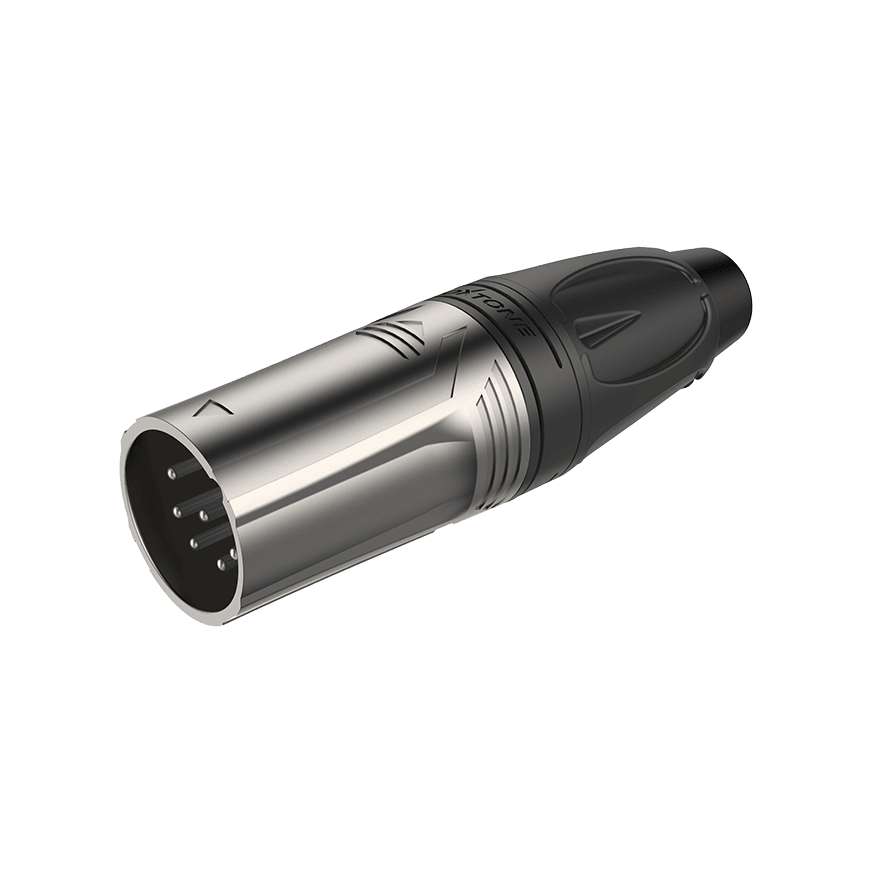

RX5M-NT

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Without locking “window” makes the housing more strength
Special contacts pin with gear and fluting design to avoid moving
ROXTONE brand engraved on the housing
Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
Patent-protected

ROXTONE

₱174.00 VAT INC.

₱174.00

UNIT: PIECE/S

Product Code: SKU:ROXT-RX5MNT-CHN-3852

Ergonomic heavy duty design with Zinc alloy housing and PA 30%GF bushing
Without locking “window” makes the housing more strength
Special contacts pin with gear and fluting design to avoid moving
ROXTONE brand engraved on the housing
Replaceable coding ring with a special strain-relief clamp for ease tightening the cable diameter from 4mm to 6.8mm
Patent-protected

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

ROXTONE RX5M-NT

Key Specifications
Product Model	Roxtone RX5M Series
Product Type	5-Pole XLR Male Cable Connector Profile: Professional DMX512 & Stereo Audio Interface
Material Specifications
Component Build	Housing: Zinc Alloy Diecast Insert: PBT (Polybutylene Terephthalate) Contacts: Brass Strain-Relief: POM (Polyoxymethylene) Chuck-style clamp Bushing/Ring: PA 30% GF / PA6 30% GF
Model Variations & Finish
RX5M-NT	Housing Finish: Nickel Plated Contact Plating: Tin
RX5M-BG	Housing Finish: Black (E-coat) Contact Plating: Gold
Physical Specifications
Mechanical Features	Connection Type: Solder contacts Coding: Interchangeable rings for channel/cable ID Application: 5-pin DMX Lighting Control, Stereo Microphones Durability: High-rigidity glass-fiber reinforced bushing
