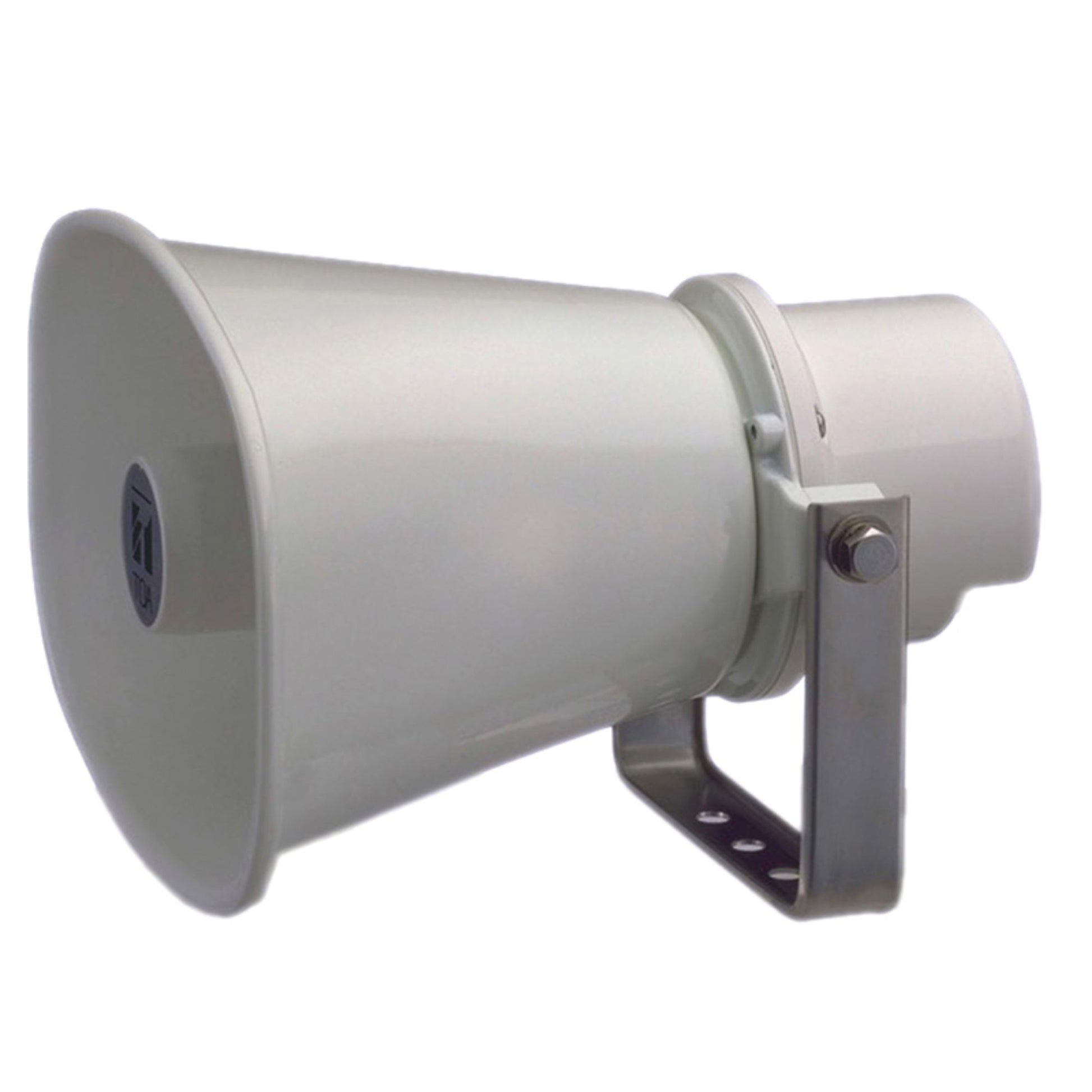

Key Specifications

Rated Input

15 W

Line Voltage

100 V line or 70 V line

Rated Impedance

100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W)

Sound Pressure Level

112 dB (1 W, 1 m at 500 Hz to 2.5 kHz peak level)

Frequency Response

280 Hz - 12.5 kHz

Dust/Water Protection

IP65

Polarity

Hot: Black, Com: White

Operating Temperature

-20 ℃ to +55 ℃ (must be free from dew condensation)

Finish

Horn flare: Aluminum, off-white, powder coating
Reflector horn and rear cover: ABS resin, off-white
Bracket, screws and bolts: Stainless steel
Speaker cable: Polyvinyl chloride insulated cabtyre cable (6 mm diameter, 600 mm length)

Dimensions

222 (W) × 179 (H) × 234 (D) mm

Weight

1.3 kg

Option

Swivel bracket: YS-151S (Can be used instead of the supplied bracket.)
