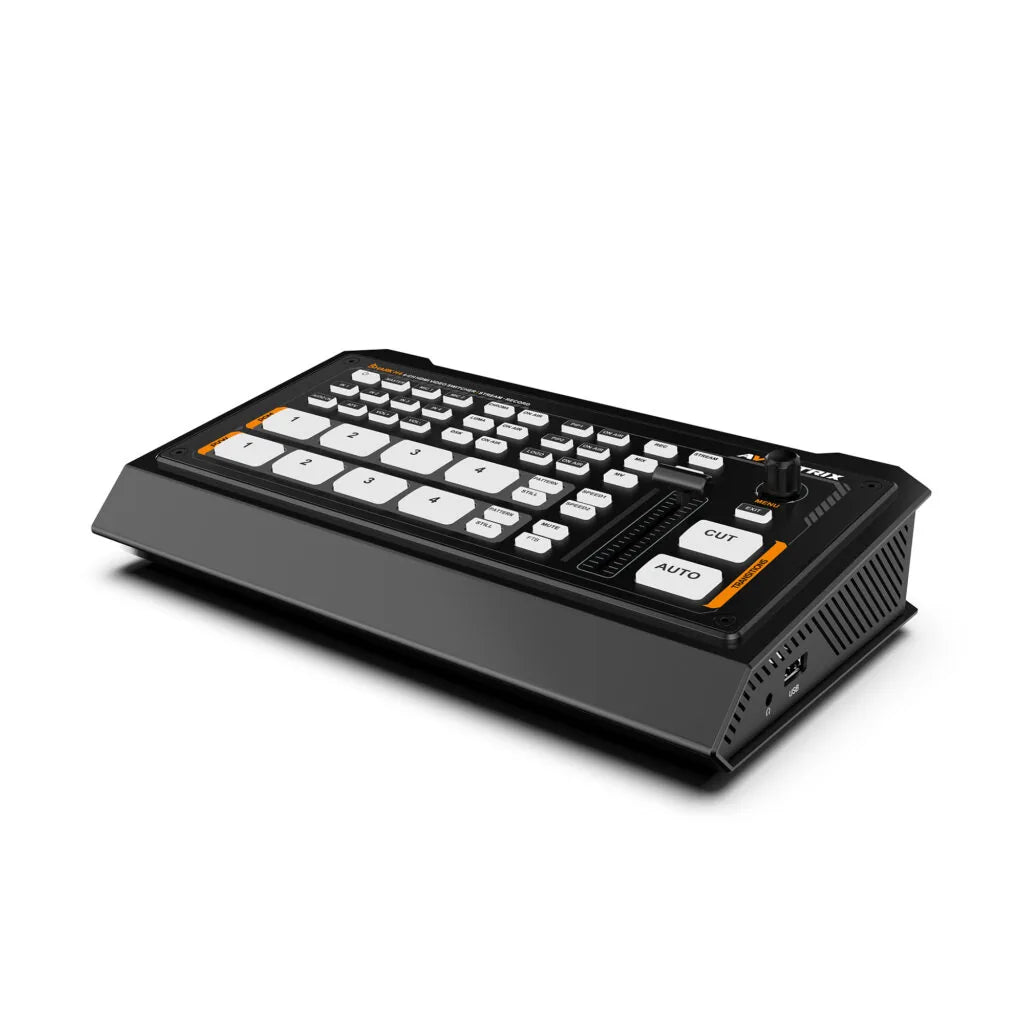

Key Specifications

Display

Video Input

HDMI ×4

Video Output

HDMI PGM ×2, HDMI Multiview ×1

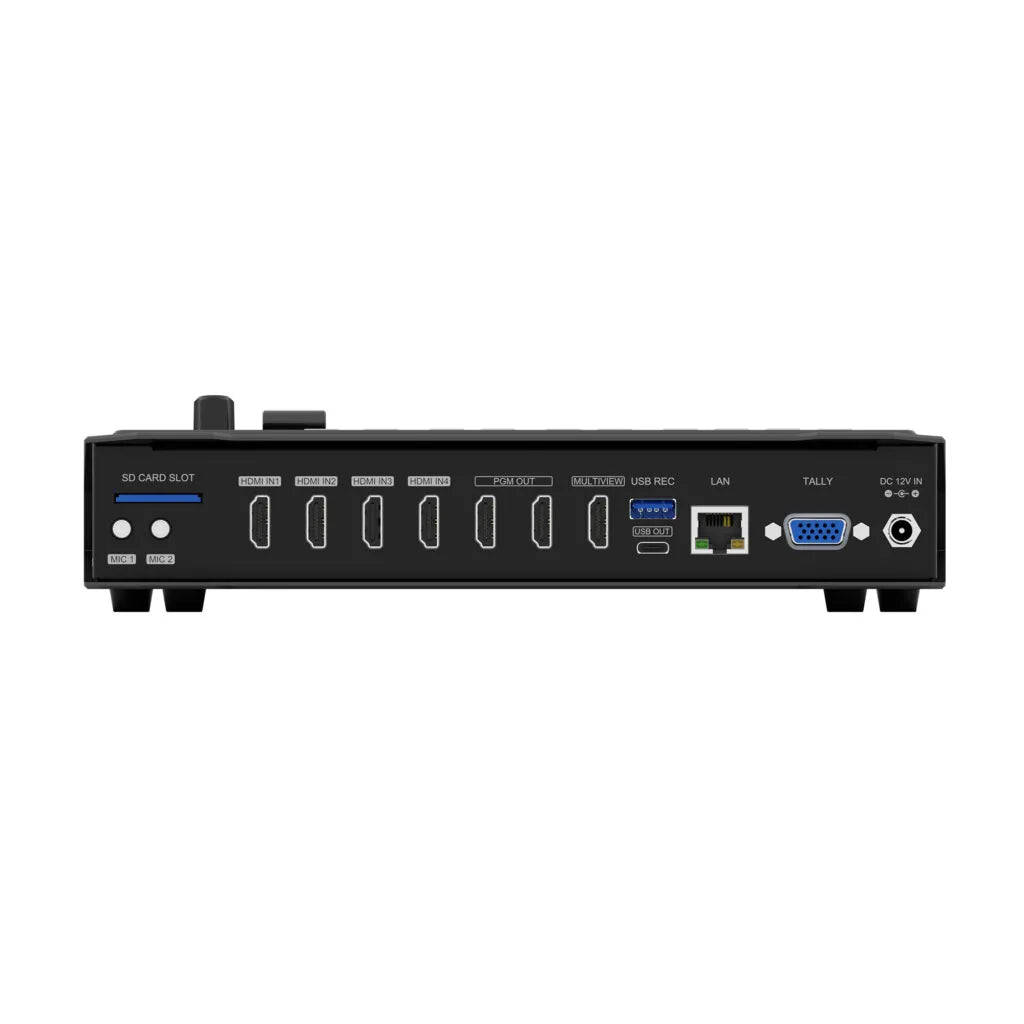

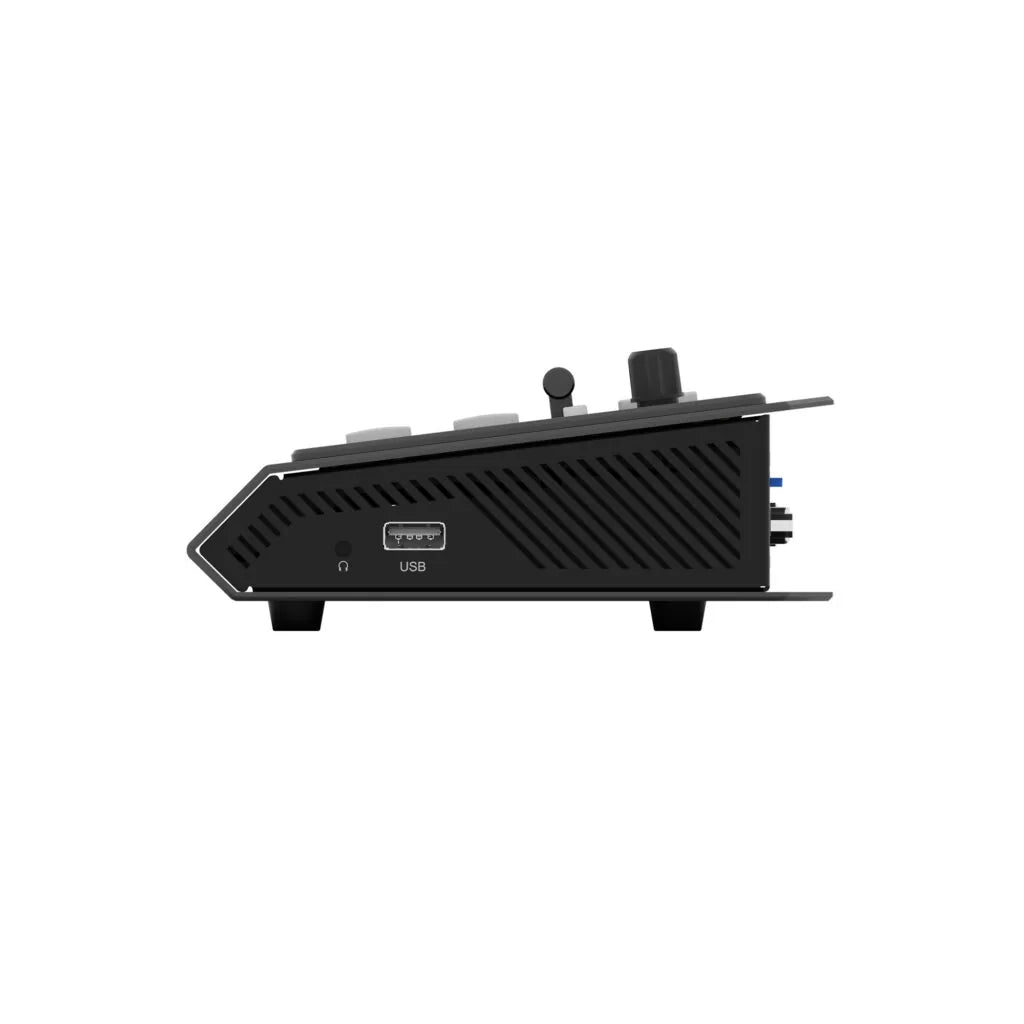

Other Interfaces

LAN ×1 (RJ45 Streaming), USB Type-C ×1 (Capture), USB-A ×1 & SD Card ×1 (Recording), USB-A ×1 (Image Import & Firmware Upgrade), Tally ×1 (DB-15 GPIO)

Audio I/O

2 × 3.5 mm MIC/Line Inputs, 1 × 3.5 mm Headphone Output

Encoding Bitrate

2 / 4 / 8 / 12 / 16 / 24 / 32 Mbps (CBR/VBR)

Streaming & Recording

Streaming Protocols

RTMP, RTMPS, SRT

Storage Media

USB Drive, SD Card (FAT32, exFAT, NTFS)

Recording File Format

MP4, TS

Recording File Segments

1 / 5 / 10 / 20 / 30 / 60 / 90 / 120 Minutes

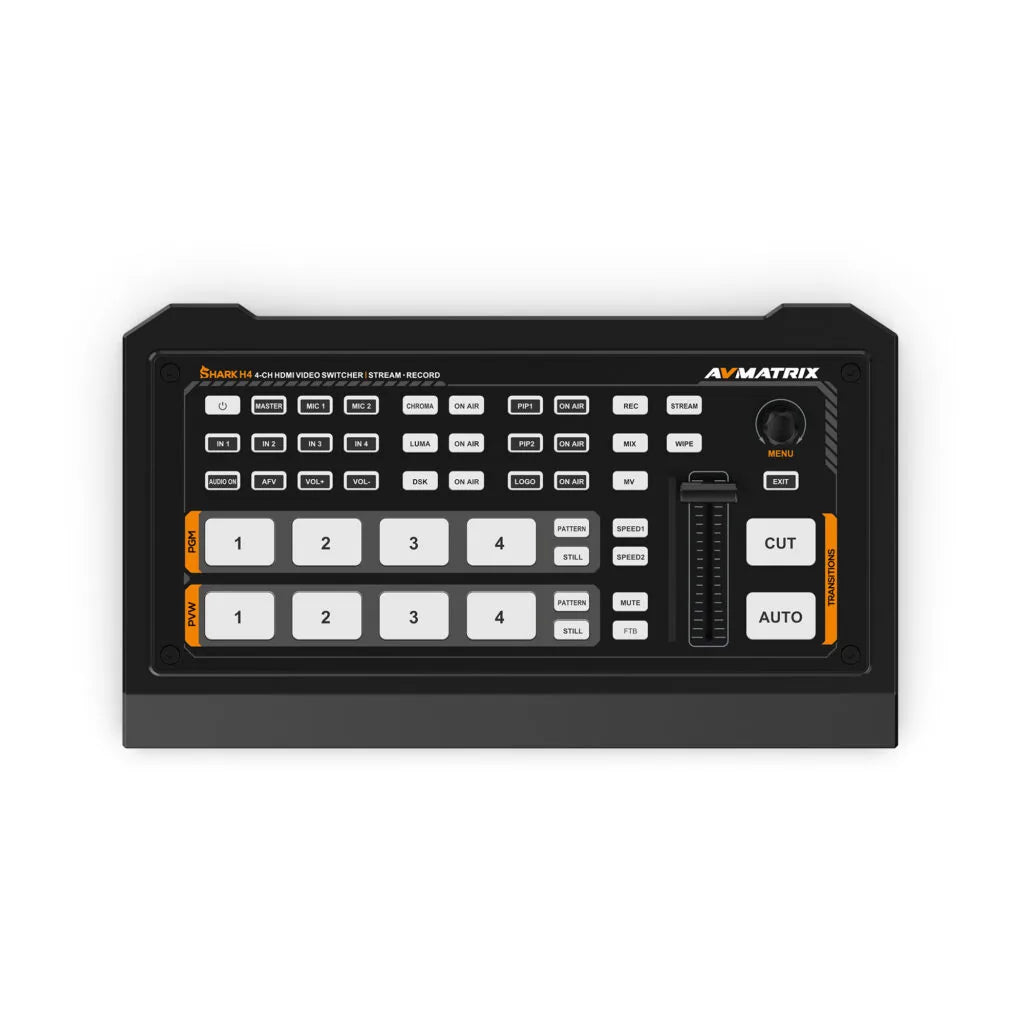

Functions

Transitions

T-Bar, AUTO, CUT

Effects

Wipe (11 × 3 Patterns), Mix, Dip, Still (Freeze), Pattern, Mute, FTB

Multiview Layouts

2 Styles (Landscape & Portrait)

Keys

Upstream: Luma Key ×1, Chroma Key ×1, PIP ×2, POP; Downstream: DSK ×1, Logo ×1

Media Format

39 Preset Images, Up to 16 Imported Images, Up to 16 Captured Images

Generators

Pattern Generator ×1, Color Generators ×2

Audio Mixer

4 Video Inputs, 2 MIC/Line Inputs

Audio Delay

0–500 ms

Video Standards

Input Format Support

Multi-format Auto Signal Detection, Up to 1080p60

Color Space

HDMI: RGB / YUV, SDI: YUV

HDMI PGM / Multiview Output

1080p60 / 59.94 / 50 / 48 / 47.95 / 30 / 29.97 / 25 / 24 / 23.98, 1080i60 / 59.94 / 50

USB Capture Output

Up to 1080p60

Power & Physical

Power Input

Wide Voltage 7–24 V DC

Power Consumption

15.6 W (12 V, 1.3 A)

Dimensions (L × W × D)

244.5 × 143.2 × 44.5 mm

Weight

Net: 1009.5 g, Gross: 1360 g

Operating Temperature

-20°C to 60°C
