Key Specifications

Mix Effects

M/E Layers

2 M/E

Effect Types

1 × Luma Key

Downstream Keys

1 × Chroma Key, 1 × Luma Key

Generators

1 × Pattern, 2 × Color

Audio Mixing

2-Channel Mixing

Processing

Switching Type

Pushbutton, Software, T-Bar

Processing Resolution

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps

Color Processing

RGB, YCbCr

Video Input

Number of Video Input Sources

4

Video Inputs

4 × HDMI Female

Input Video Format

HDMI: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps

Audio Inputs

2 × 3.5 mm TRS Stereo Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI: 2-Channel

Video Output

Video Output Channels

5

Video Outputs

2 × HDMI Female (Program), 1 × HDMI Female (Monitor), 1 × USB-C (USB Video) Female (Program), 1 × USB-A (USB Video) Female (Program)

Output Video Format

HDMI: 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps; USB-C: 1080p at 60 fps

Audio Outputs

1 × 3.5 mm TRS Stereo Analog Female (Loop Output)

Embedded Audio Output

HDMI, USB-C

Multiview Output

4-Way Multiview via HDMI

Monitor Output

1 × HDMI

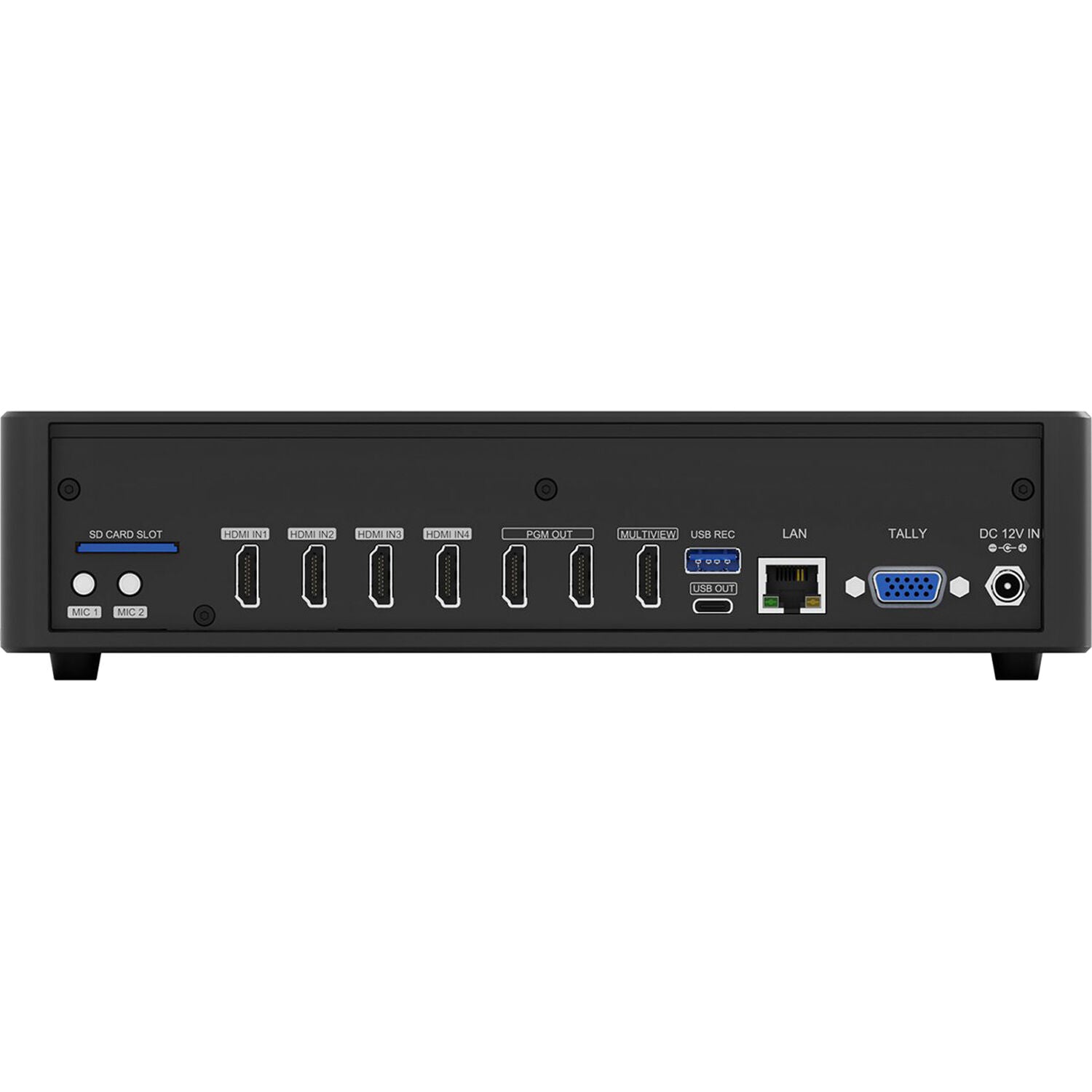

Connectivity

Other I/O

1 × RJ45 LAN Input, 1 × DE-15/DB-15 Tally Input/Output, 1 × USB-A Input

HDCP Support

No

IP Encoding/Decoding

IP Video

1920 × 1080 Encoding

Transport Protocols

RTMP, RTMPS, SRT

Simultaneous Streams

1 Stream

Internal Recording

Recording Media

1 × SD Card

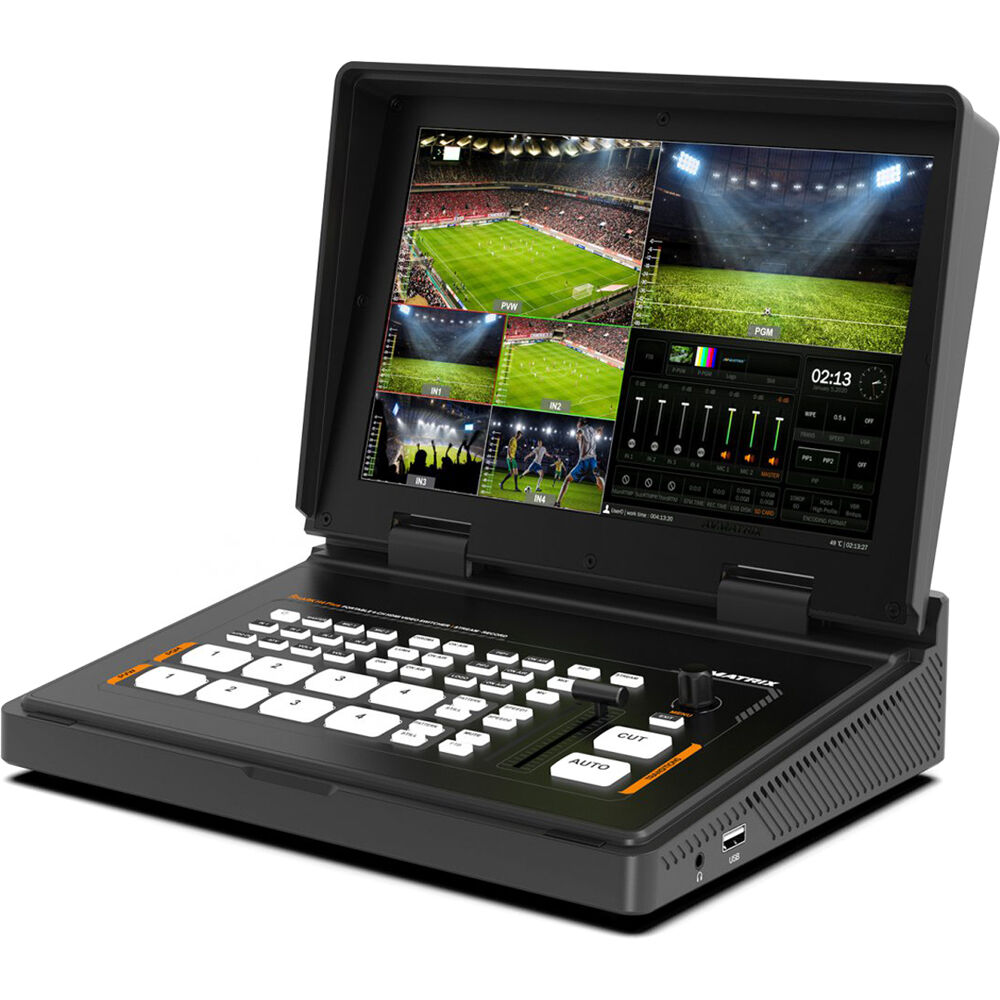

Display

Display Size

10.1"

Screen Resolution

1920 × 1080

Power

Power I/O

1 × Barrel Connector (12 VDC at 1.7 A)

Power Consumption

20.4 W

General

Wireless

Bluetooth / Wi-Fi

Operating Conditions

-20°C to 50°C (-4°F to 122°F)

Dimensions

10.29 × 7.63 × 2.3" / 26.14 × 19.39 × 5.8 cm

Weight

3.81 lb / 1.73 kg

Packaging Information

Package Weight

4.99 lb

Box Dimensions

12.3 × 10.6 × 4.6"
