Key Specifications

Mix Effects

Effect Types

1 × Graphic, Chroma Key

Downstream Keys

1 × DVE

Processing

Switching Type

Software, Touchscreen

Input

Number of Video Input Sources

6

Video Inputs

4 × BNC (3G-SDI) Female, 2 × HDMI Female

SDI Input Video Format

1080p at 23.98/24/25/29.97/30/50/59.94/60 fps; 1080PsF at 23.98/24/25/29.97/30 fps; 1080i at 50/59.94/60 fps; 720p at 23.98/24/25/29.97/30/50/59.94/60 fps; 576i / 625 lines at 50 fps; 480i / 525 lines at 59.94 fps

HDMI Input Video Format

WUXGA (1920 × 1200) at 30/50/60 fps; 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps; 1080i at 50/59.94/60 fps; 720p at 15/23.98/24/25/29.97/50/59.94/60 fps; 576i / 625 lines at 50 fps; 480i / 525 lines at 59.94 fps

Audio Inputs

2 × 3.5 mm TRS Analog Female

Input Audio Format

Analog

Embedded Audio Input

HDMI, SDI

Output

Video Output Channels

4

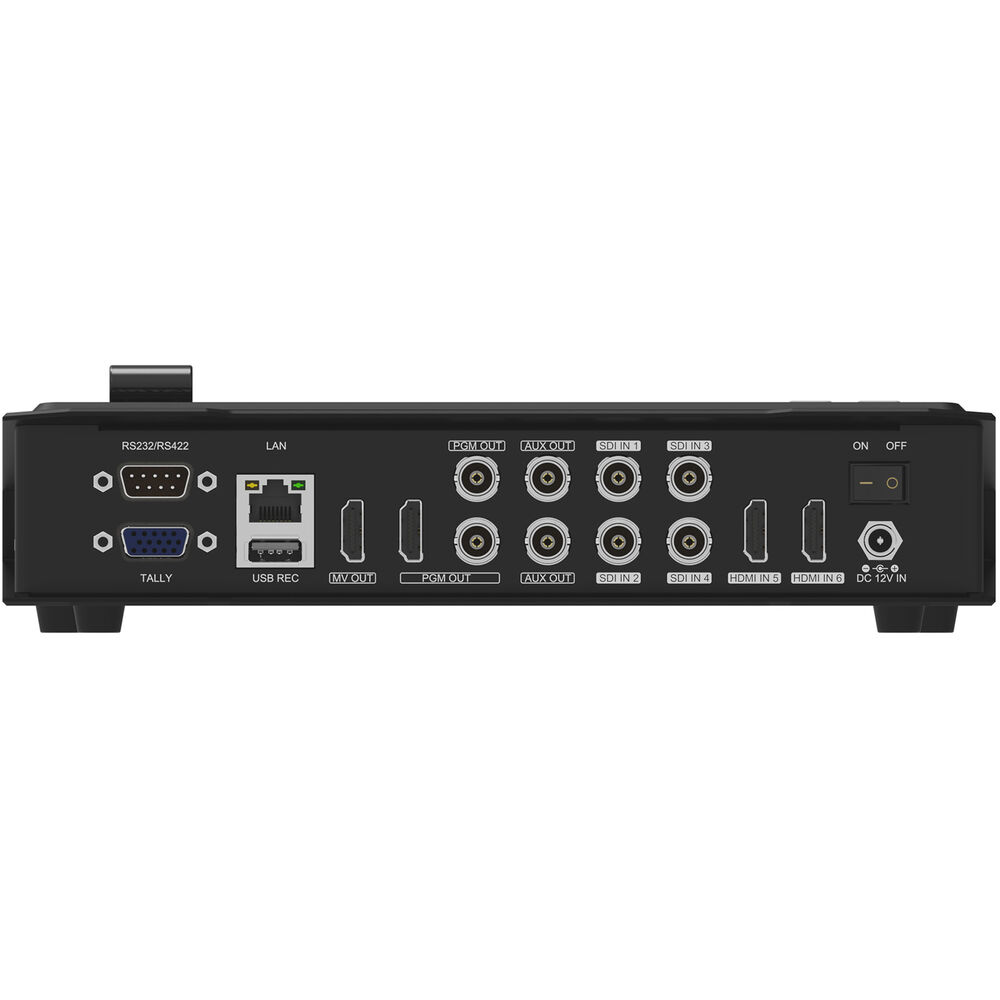

Video Outputs

3 × BNC (3G-SDI) Female, 1 × HDMI Female, 1 × USB-C (USB Video) Female (Program)

Output Video Format

HDMI: 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps

Audio Outputs

4 × 3.5 mm TRS Analog Female

Output Audio Format

Analog

Embedded Audio Output

HDMI, SDI, RJ45

Multiview Output

6-Way Multiview via HDMI

Monitor Output

1 × HDMI

Connectivity

Other I/O

1 × DE-9/DB-9 RS-232, RS-422, RS-485 Input/Output; 1 × DE-15/DB-15 Tally Input/Output; 1 × RJ45 LAN Input/Output; 1 × USB-A 2.0 Input/Output

Video Standard Compliance

SMPTE 259M / 292M / 424M

IP Encoding/Decoding

IP Video

MJPEG: 1920 × 1080 at 60p Encoding

Transport Protocols

RTMP, RTMPS, RTSP, SRT

Compatible Services

Facebook Live, Instagram, Livestream, Skype, Twitch, YouTube Live

Internal Recording

Recording Media

1 × USB-A 2.0 (External Drives)

Recording Modes

1920 × 1080p up to 60 fps

Display

Display Size

5"

Hardware

OS Compatibility

Windows 7 or Later, Linux 2.6 or Later, macOS 10.8 or Later

Processor

Not Specified by Manufacturer

Wireless

No

Power

Power I/O

1 × Barrel Connector (12 VDC at 1.5 A) Input

Power Consumption

18 W

General

Operating Conditions

-20°C to 60°C (-4°F to 140°F)

Storage Conditions

-30°C to 70°C (-22°F to 158°F)

Dimensions

9.4 × 6.6 × 1.9" / 238.5 × 168.2 × 47.5 mm

Weight

3.2 lb / 1.5 kg

Packaging Information

Package Weight

5.245 lb

Box Dimensions

12.8 × 9 × 3.3"
