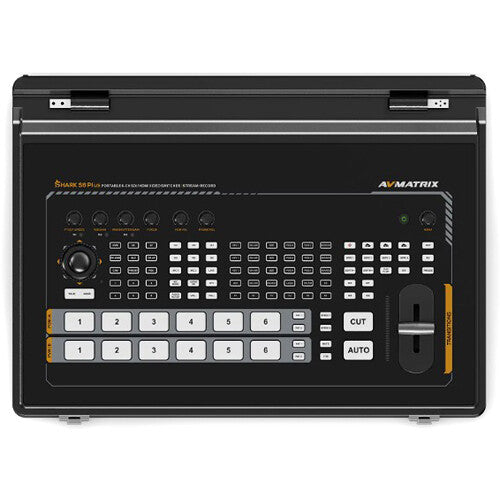

Key Specifications

Mix Effects

Available M/E Layers

6 M/E

Effect Types

1 × Graphic
1 × Chroma Key, Luma Key

Downstream Keys

1 × Chroma, Luma

Processing

Switching Type

Pushbutton

Processing Resolution

UHD 4K

Color Processing

10-Bit 4:2:2 YUV
10-Bit RGB

Video Input

Video Input Sources

6

Video Inputs

4 × BNC (3G-SDI)
2 × HDMI

SDI Input Formats

1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps

HDMI Input Formats

UHD 4K: 30/50/60 fps
DCI 2K: 30/50/60 fps
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps
1080PsF: 23.98/24/25/29.97/30 fps
720p: 23.98/24/25/29.97/30/50/59.94/60 fps

Audio Inputs

2 × Combo XLR-1/4" TRS Mic/Line
1 × 3.5 mm TRS Line

Embedded Audio Input

HDMI, SDI

Video Output

Video Output Channels

3

Video Outputs

2 × HDMI (Program)
4 × BNC (3G-SDI) Program
1 × USB-C (Program)

Output Video Formats

HDMI / SDI:
1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
1080i: 50/59.94/60 fps

Audio Outputs

2 × XLR 3-Pin Line
1 × 3.5 mm TRS Line

Embedded Audio Output

HDMI, SDI

Multiview Output

4-Way Multiview via HDMI

Monitor Output

1 × HDMI

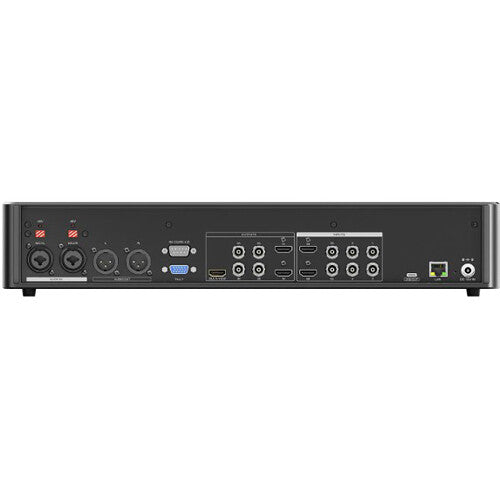

Connectivity

Other I/O

1 × BNC Reference Input
1 × BNC GPI Input
1 × DE-15/DB-15 Tally I/O
1 × DE-9/DB-9 Control, RS-232, RS-422 I/O

IP Encoding / Decoding

IP Video

1920 × 1080 at 60p (32 Mb/s) Encoding

Transport Protocols

HTTP, RTMP, RTMPS, RTSP, SRT

Simultaneous Streams

2 Streams

Internal Recording

Recording Media

1 × SD Card (Type Unspecified)
USB-A 2.0

Recording Mode

1920 × 1080p up to 60 fps
200 Mb/s MP4 (H.264/AVC)

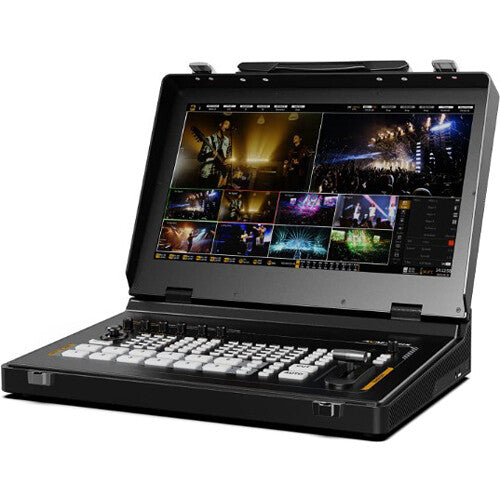

Display

Display Size

17.3"

Screen Resolution

1920 × 1080

Hardware

Processor

Not Specified by Manufacturer

Wireless

No

Power

Power Input

1 × Barrel (9 to 24 VDC)

Power Consumption

50 W

General

Operating Temperature

-4°F to 122°F (-20°C to 50°C)

Storage Temperature

-22°F to 158°F (-30°C to 70°C)

Dimensions

17.3 × 11.1 × 2.6" (440 × 281.5 × 65.1 mm)

Weight

8.11 lb (3.68 kg)

Packaging Information

Package Weight

23.39 lb

Box Dimensions (L × W × H)

21.4 × 19.4 × 7.3"
