Key Specifications

Speaker Configuration

1 × 2-Way Loudspeaker

Input Channels

6 (4 × Mono, 1 × Stereo)

Amplifier Power

400 W Peak (Class-D)

Enclosure Type

Bass-Reflex

HF Driver

1 × 1" (25.4 mm) Tweeter

LF Driver

1 × 8" (203.2 mm) Woofer

Signal Processing

Equalizer

HF Shelf, MF Peak, LF Shelf

Semi-Parametric EQ

No

Effects

Delay, Reverb

Filters

No

Dynamic Processing

Peak Limiter

Performance

Frequency Response

48 Hz – 20 kHz

Maximum SPL

122 dB

Coverage Angle

90° H × 60° V

Protection Circuits

Output Limiter, Power Supply, RMS, Thermal

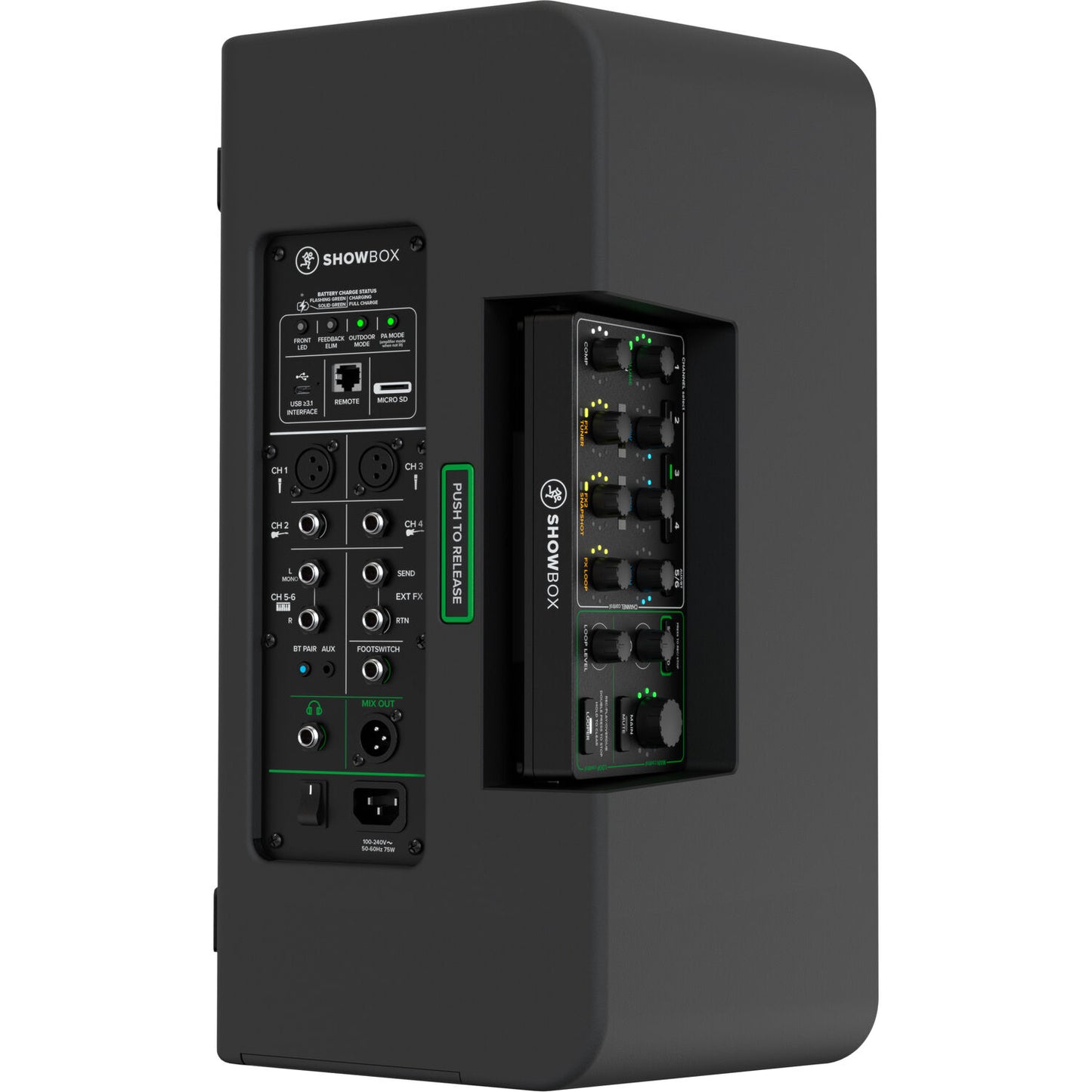

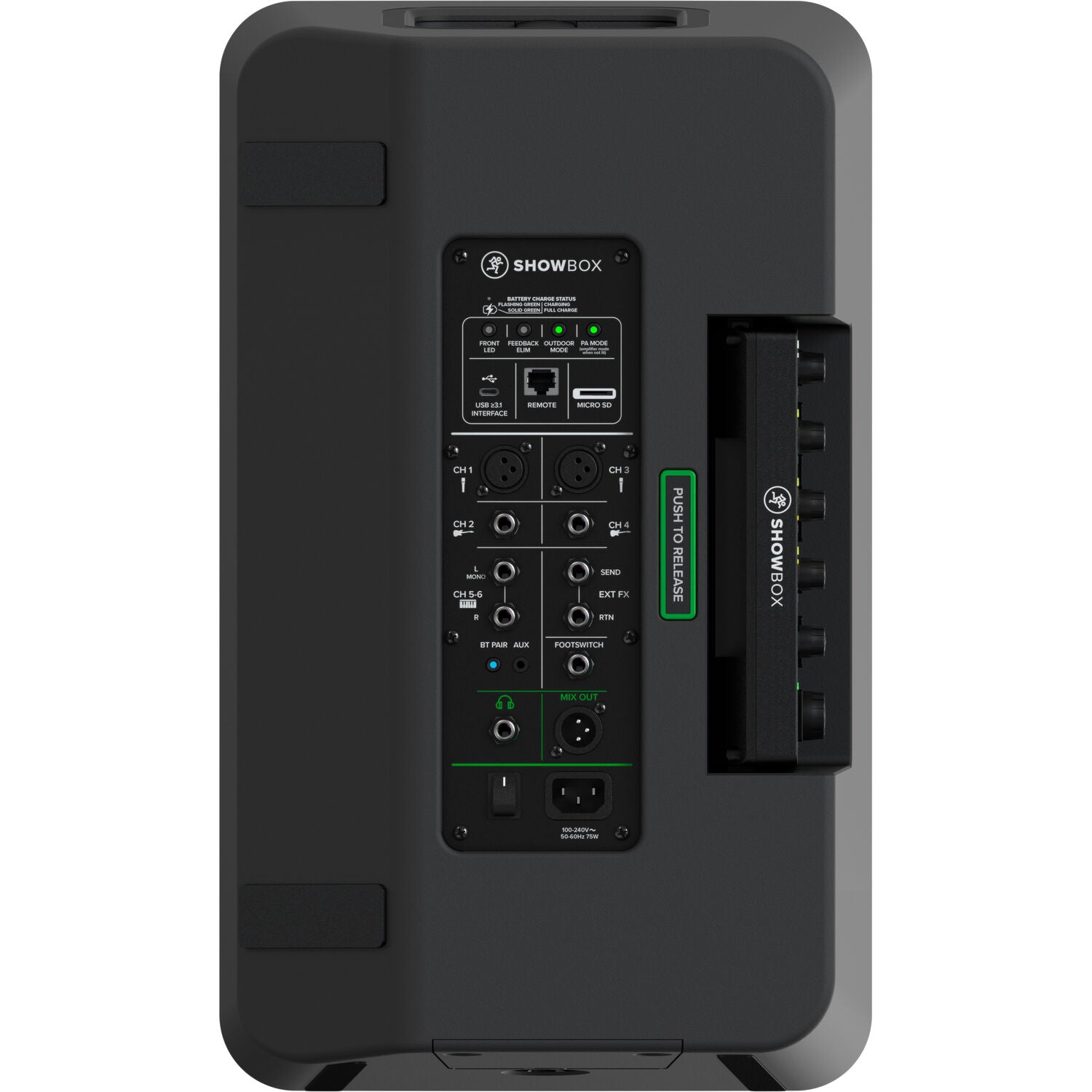

Connectivity

Microphone Inputs

2 × XLR 3-Pin Balanced

Hi-Z Inputs

2 × 1/4" TS Unbalanced

Line Inputs

2 × 1/4" TRS Balanced/Unbalanced (1 Stereo Pair)
1 × 3.5 mm TRS Unbalanced Stereo

Footswitch Input

1 × 1/4" TRS

Line Output

1 × XLR 3-Pin Balanced

Headphone Output

1 × 1/4" TRS

USB Interface

1 × USB-C (Audio Recording)

Media Playback

microSD Card

Wireless Connectivity

Bluetooth

Network Support

No

Mobile App Support

No

Power

Battery Type

Built-In Rechargeable Lithium-Ion

Battery Life

Up to 12 Hours

AC Input Power

100–240 VAC, 50 / 60 Hz

Power Consumption

75 W

AC Power Connector

1 × IEC Input

Physical Specifications

Transport Handle

1 × Top Handle

Mounting

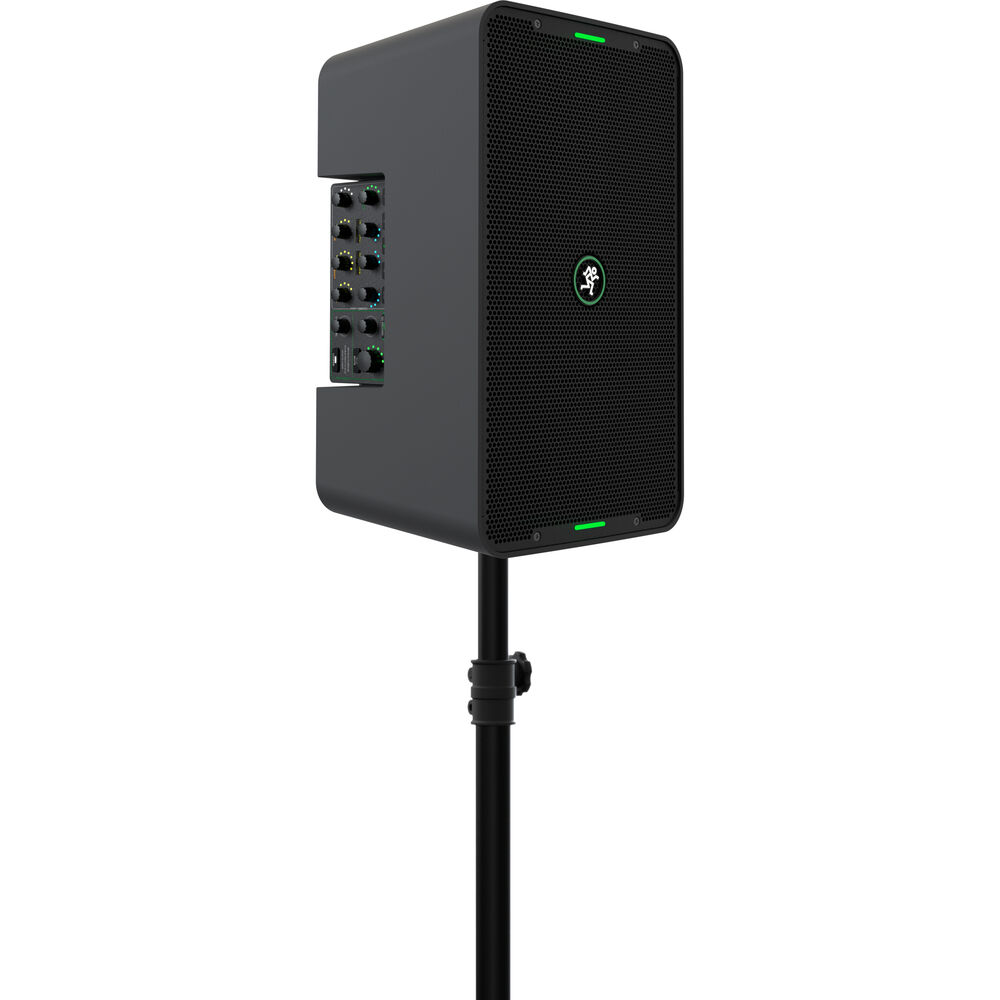

1 × Pole Socket (Bottom)

Dimensions

50 × 30 × 24.9 cm (19.7 × 11.8 × 9.8")

Weight

9.5 kg (21 lb)

Packaging Information

Package Weight

28.25 lb

Box Dimensions (L × W × H)

24.3 × 14.2 × 12.5"
