Key Specifications

Max I/O Capacity

32x Input / 32x Output

Number of Analog Input Channels

40

Number of Mic Preamps

32

Number of Analog Output Channels

32

Faders & Level Adjustment

24 Motorized Channel Fader, 1 Motorized Master Fader, 1 Motorized Bus/Subgroup Fader

Built-In Effects

Reverb, Delay, Ring Modulator

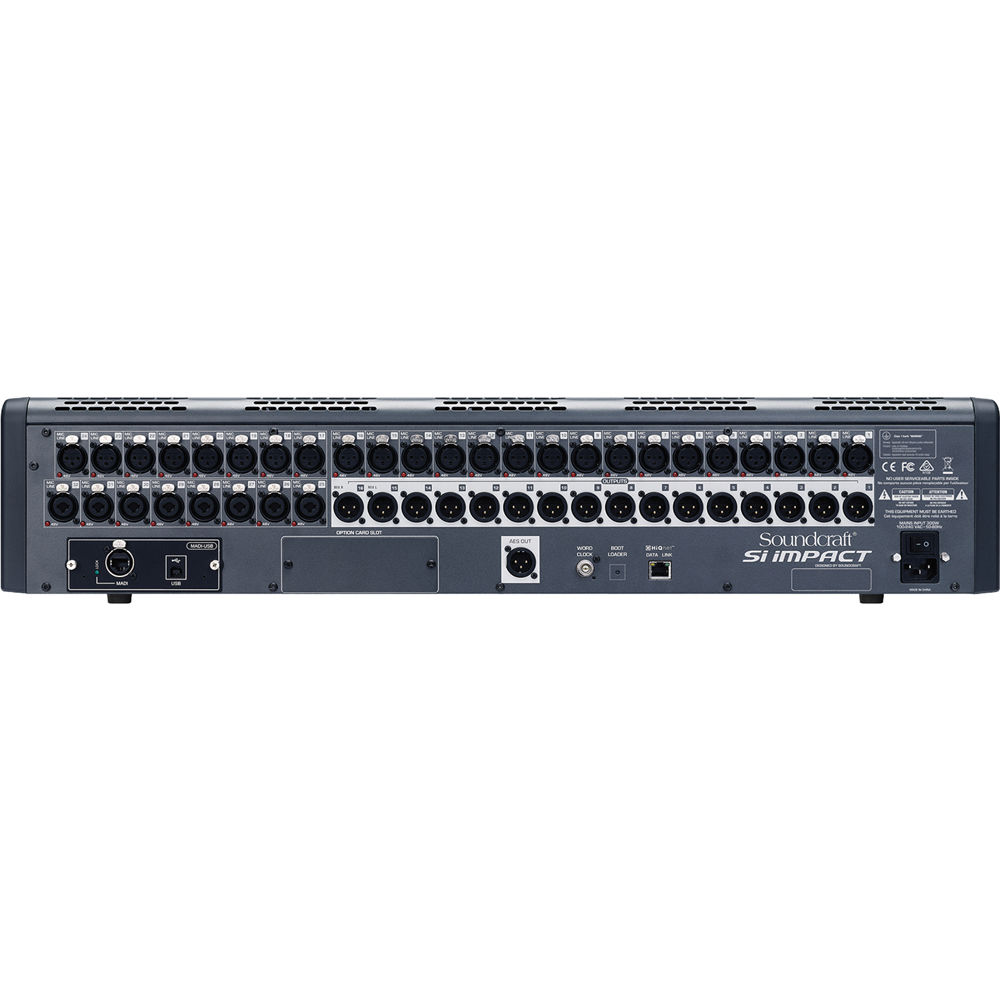

Analog Inputs

24x XLR 3-Pin Mic/Line Input, 8x Combo XLR-1/4" Mic/Line Input

Analog Outputs

16x XLR Main Output

Digital I/O

1x XLR AES3 Output, 1x RJ45 Optical MADI Input/Output

USB I/O

1x USB-B

Wireless

Wi-Fi

Rack Mountable

No

Mixer

Mix Routing

20x Bus, 4x Stereo Matrix

Groups

20x Subgroup

Presets

Yes

Display

5" Touchscreen

Signal Processing

Gain/Trim Range

Mic: -5 dB to 58 dB (in 1 dB Steps), Line: -10 dB to +16 dB

EQ

3-Band Graphic

EQ Parameters

HF Shelf: ±15 dB at 800 Hz to 20 kHz, MF Notch/Peak: ±15 dB at 22 Hz to 20 kHz, 6 to 0.3 Q, LF Shelf: ±15 dB at 20 Hz to 500 Hz

Graphic EQ

28-Band 1/3 Octave, 31 Hz to 16 kHz

Filters

High-Pass: 40 Hz to 1 kHz

Solo/Mute

Solo per Input Channel

Audio Delay

Adjustable Up to 500 ms

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

AD/DA Conversion: Up to 200 kHz

Bit Depth

AD/DA Conversion: 24-Bit

Word Clock Input

48 kHz ±7 Hz

Performance

Frequency Response

Mic/Line Input: 20 Hz to 20 kHz ±1.5 dB

Max Input Level

Mic Input: +22 dBu, Line Input: +22 dBu

Headphone Output Power

300 mW into 150 Ohms

I/O Impedance

Mic Input: 3 Kilohms, Line Input: 10 Kilohms, Output: 150 Ohms (Balanced) / 75 Ohms (Unbalanced)

Noise Floor

< -86 dBu (at Unity Gain)

THD

< 0.01%

Signal Generator

No

Connectivity

Phantom Power

+48 V

USB I/O Capacity

32x Input / 32x Output

Expansion Ports

1x I/O Card

External Display I/O

No

Recording & Compatibility

Max Multitrack Recording

80 Tracks

OS Compatibility

Computer: Windows 7 or Later / macOS 10.7 or Later, Mobile: iPadOS Only

Physical & Power

Input Power

88 to 264 VAC, 50 / 60 Hz

Operating Conditions

41 to 113°F / 5 to 45°C

Dimensions

6.3 x 29.5 x 19.7" / 160 x 750 x 500 mm

Weight

44.1 lb / 20 kg

Package Weight

53 lb

Box Dimensions (LxWxH)

35.5 x 26.5 x 12.5"
