Key Specifications

Active or Passive

Passive

System Type

Full-Range

Configuration

2-way

System Continuous Power

200 W

System Programme Power

400 W

System Peak Power

800 W

Max SPL @ 1m

126 dB

Freq Range (-10 dB)

60 Hz - 20 kHz

Freq Response (+/-3 dB)

65 Hz - 18 kHz

Bi-amp Mode Switch

No

Bluetooth

No

IP Certification

None

Driver Brand

Wharfedale Pro

LF Driver Size

10"

LF Voice Coil Size

1.5"

LF Rated Impedance

8 Ω

LF Power (RE:AES2-2012)

200 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

90° x 60°

Preset Library

Yes

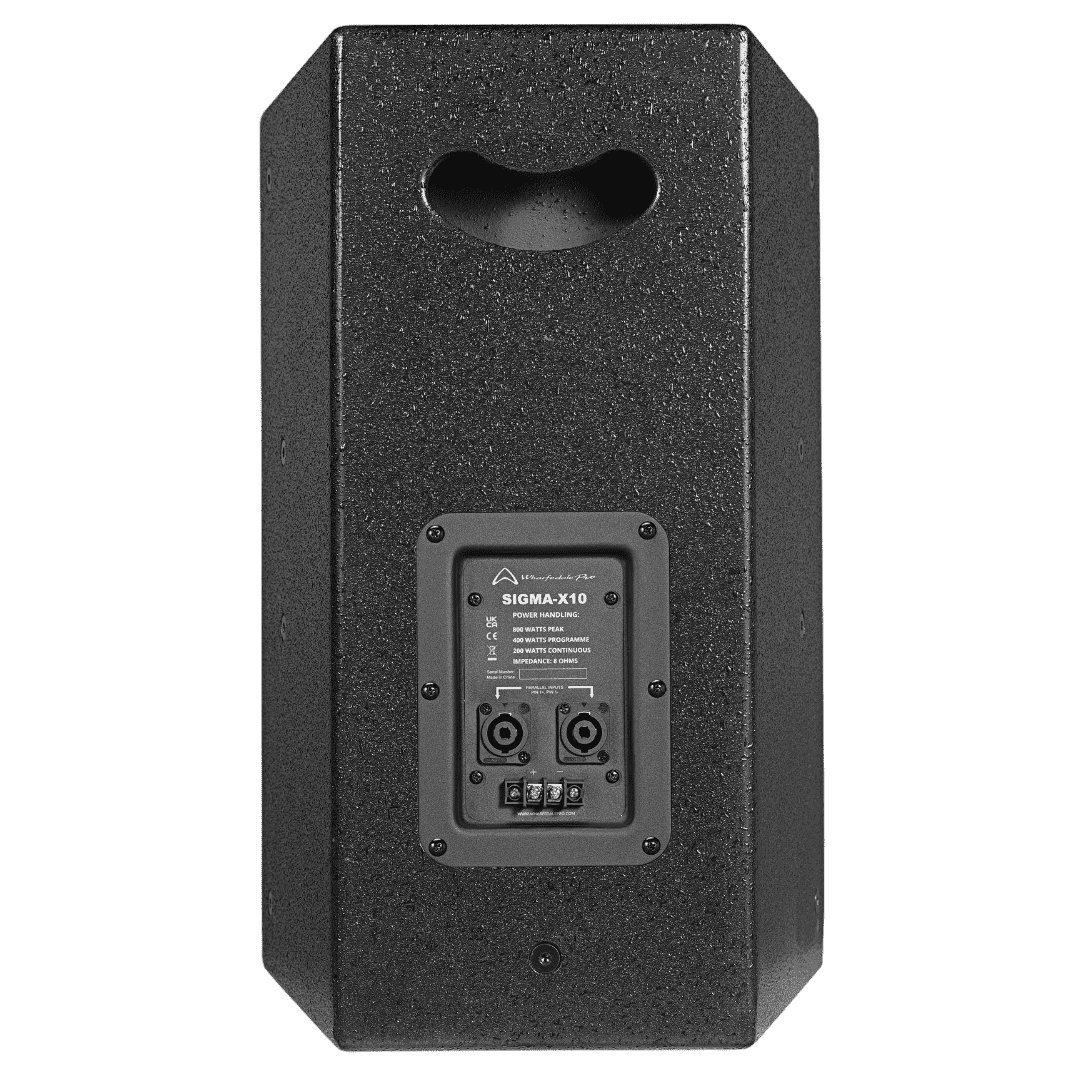

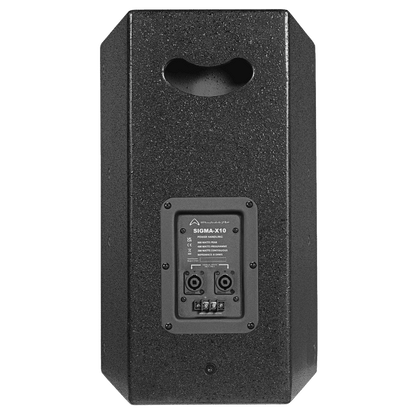

Input Connector

2 × 4 Pole Speaker Connector, 1 × Barrier Strip

Waveguide Type

Constant Directivity / Rotatable

Enclosure Material

MDF

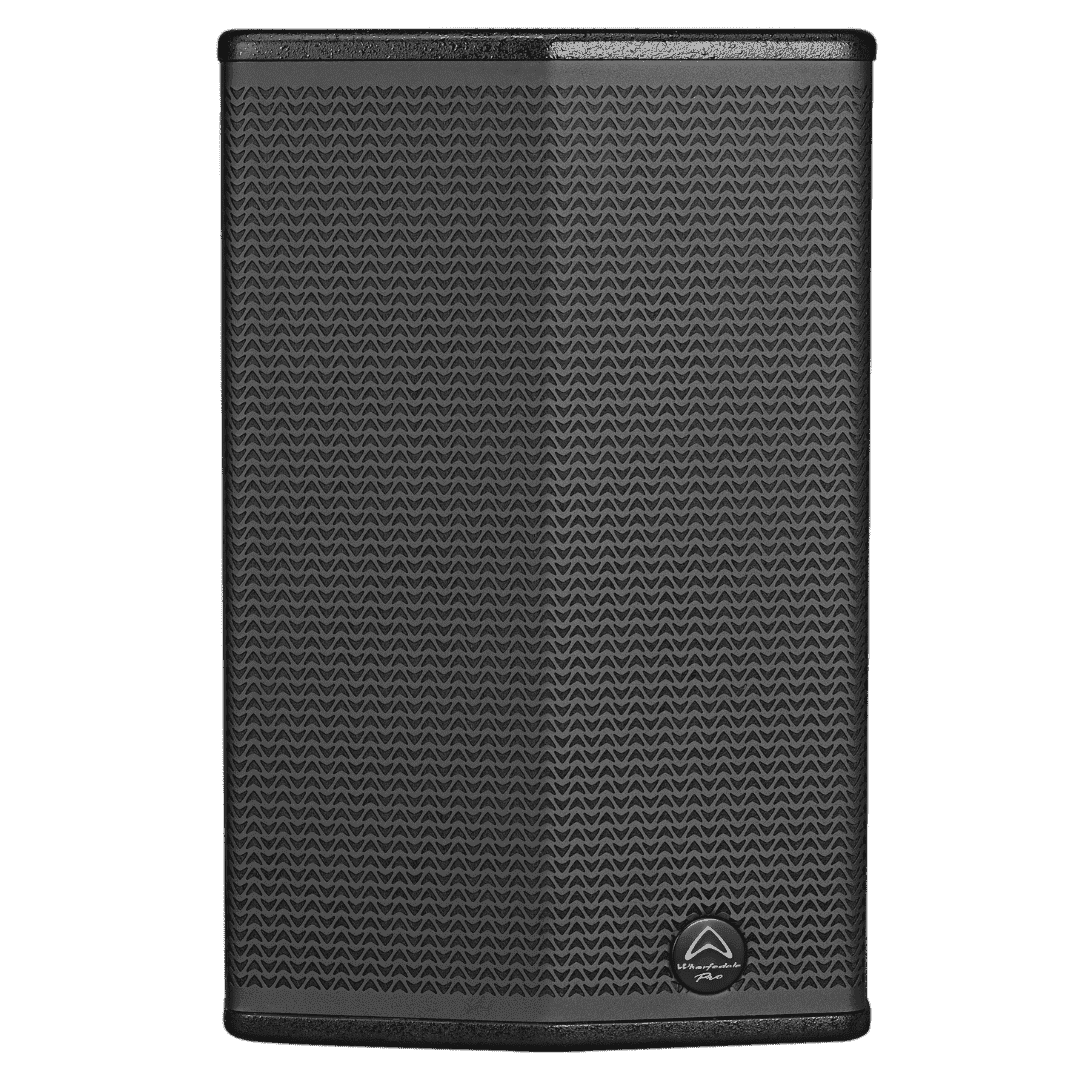

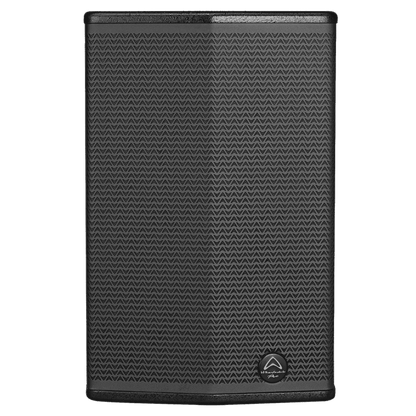

Grille Material and Finish

Steel Black or White

Finish

Black or White Tough-Tone Paint

Handles

1

Deployment

Flying, Pole, Wall Mount

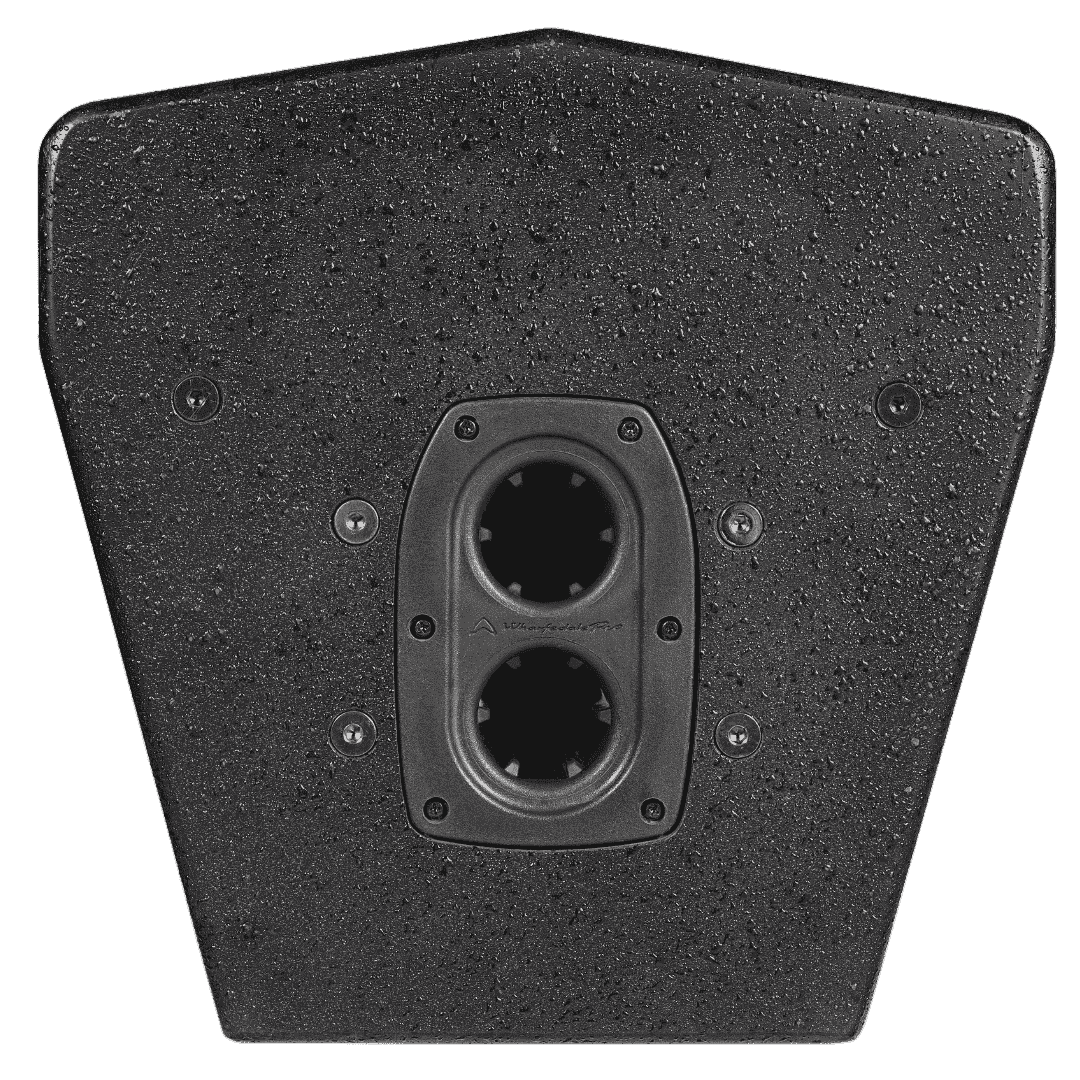

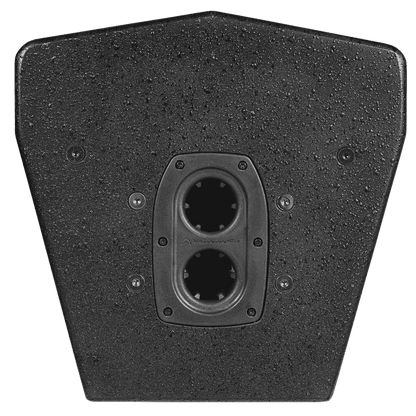

Pole Mount

Dual Angle (0° / 10°) 35 mm

Brackets Included

No

Rigging

Yes

M8

17

Sensitivity 2.83v / 1m

97 dB

System Rated Impedance

8 Ω

Crossover Frequency

2.4 kHz

Recommended HPF = BW 18 dB/OCT.

60 Hz

Included Accessory

Quick Start Guide

Unpacked - Height (mm)

520

Unpacked - Width Front (mm)

338

Unpacked - Width Rear (mm)

213

Unpacked - Depth (mm)

338

Packed - Height (mm)

585

Packed - Width Front (mm)

441

Packed - Width Rear (mm)

251

Packed - Depth (mm)

389

Weight - Nett (kg)

17.1

Weight - Gross (kg)

18.8
