Key Specifications

Active or Passive

Passive

System Type

Full-Range

Configuration

2-way

System Continuous Power

150 W

System Programme Power

300 W

System Peak Power

600 W

Max SPL @ 1m

124 dB

Freq Range (-10 dB)

65 Hz - 20 kHz

Freq Response (+/-3 dB)

70 Hz - 18 kHz

Bi-amp Mode Switch

No

Bluetooth

No

IP Certification

None

Driver Brand

Wharfedale Pro

LF Driver Size

8"

LF Voice Coil Size

1.5"

LF Rated Impedance

8 Ω

LF Power (RE:AES2-2012)

150 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

20 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

90° x 60°

Preset Library

Yes

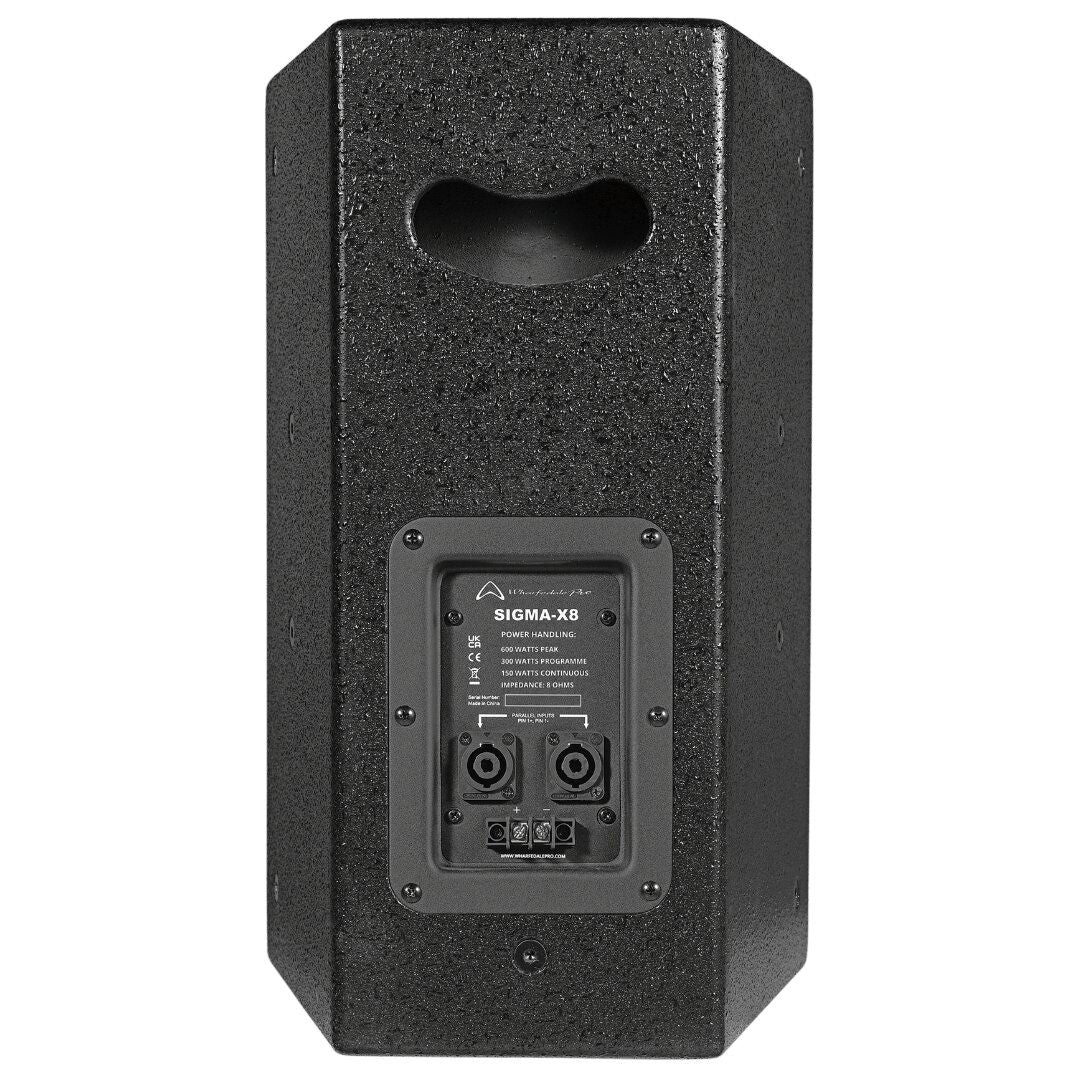

Input Connector

2 × 4 Pole Speaker Connector, 1 × Barrier Strip

Waveguide Type

Constant Directivity / Rotatable

Enclosure Material

MDF

Grille Material and Finish

Steel Black or White

Finish

Black or White Tough-Tone Paint

Handles

1

Deployment

Flying, Pole, Wall Mount

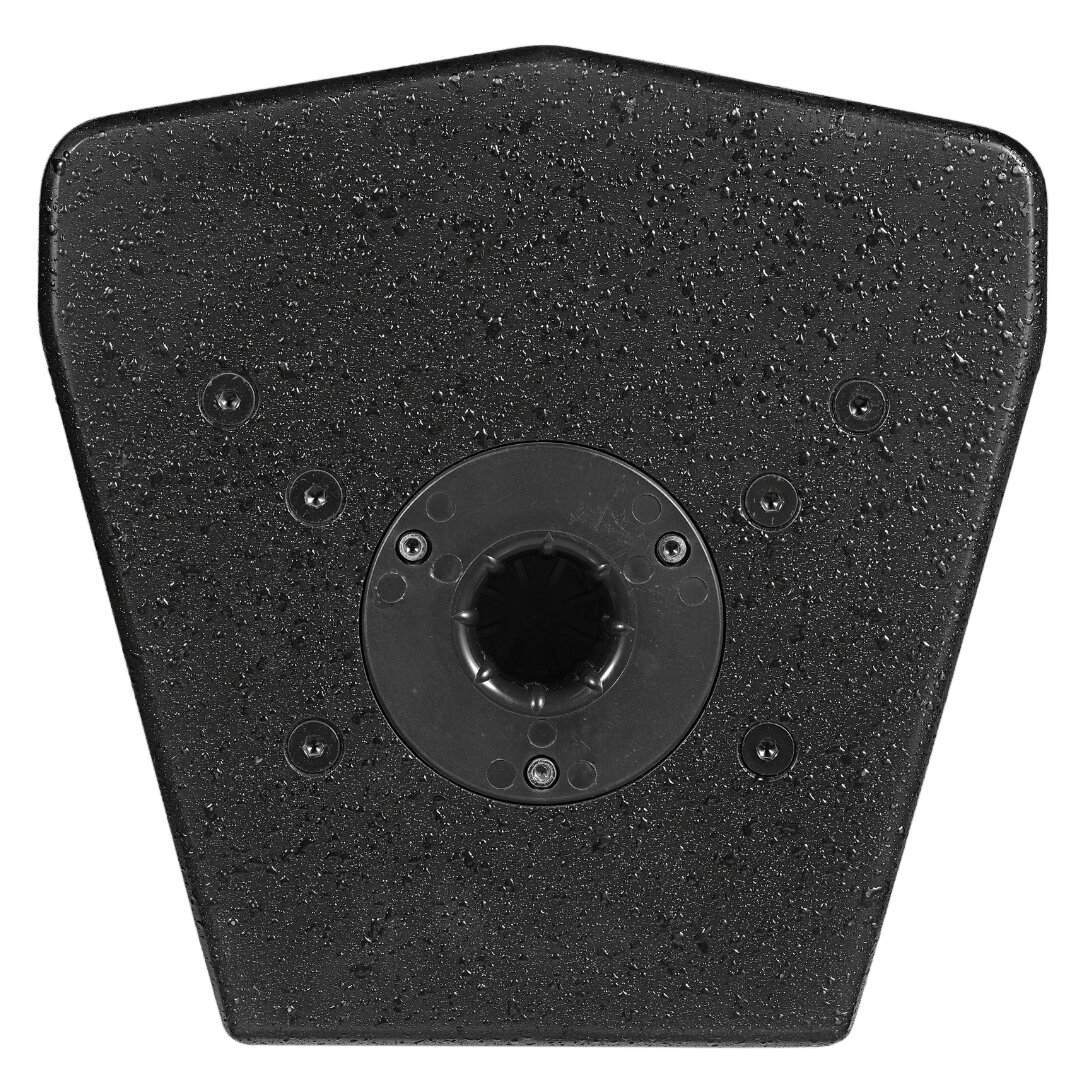

Pole Mount

35 mm

Brackets Included

No

Rigging

Yes

M8

17

Sensitivity 2.83v / 1m

96 dB

System Rated Impedance

8 Ω

Crossover Frequency

2.8 kHz

Recommended HPF = BW 18 dB/OCT.

65 Hz

Included Accessory

Quick Start Guide

Unpacked - Height (mm)

465

Unpacked - Width Front (mm)

284

Unpacked - Width Rear (mm)

176

Unpacked - Depth (mm)

283

Packed - Height (mm)

505

Packed - Width Front (mm)

364

Packed - Width Rear (mm)

214.4

Packed - Depth (mm)

333

Weight - Nett (kg)

12.2

Weight - Gross (kg)

13.5
