Key Specifications

Total Channels

8 Channels

Mic Preamps

4 x Studio-Grade (High Headroom)

Phantom Power

Yes (Studio Grade +48V)

Inputs

4 x XLR (Balanced), 8 x 6.3 mm Jack

Outputs

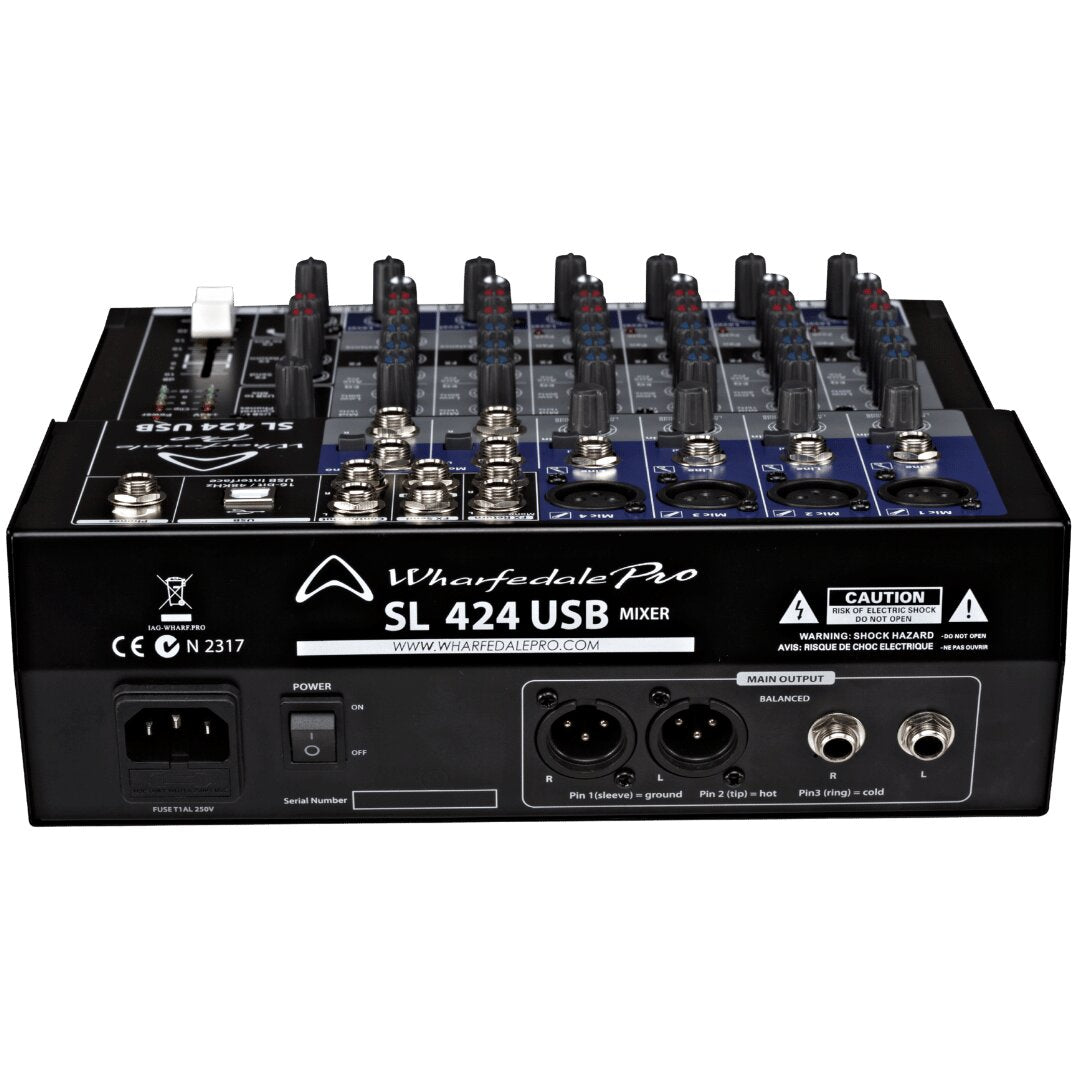

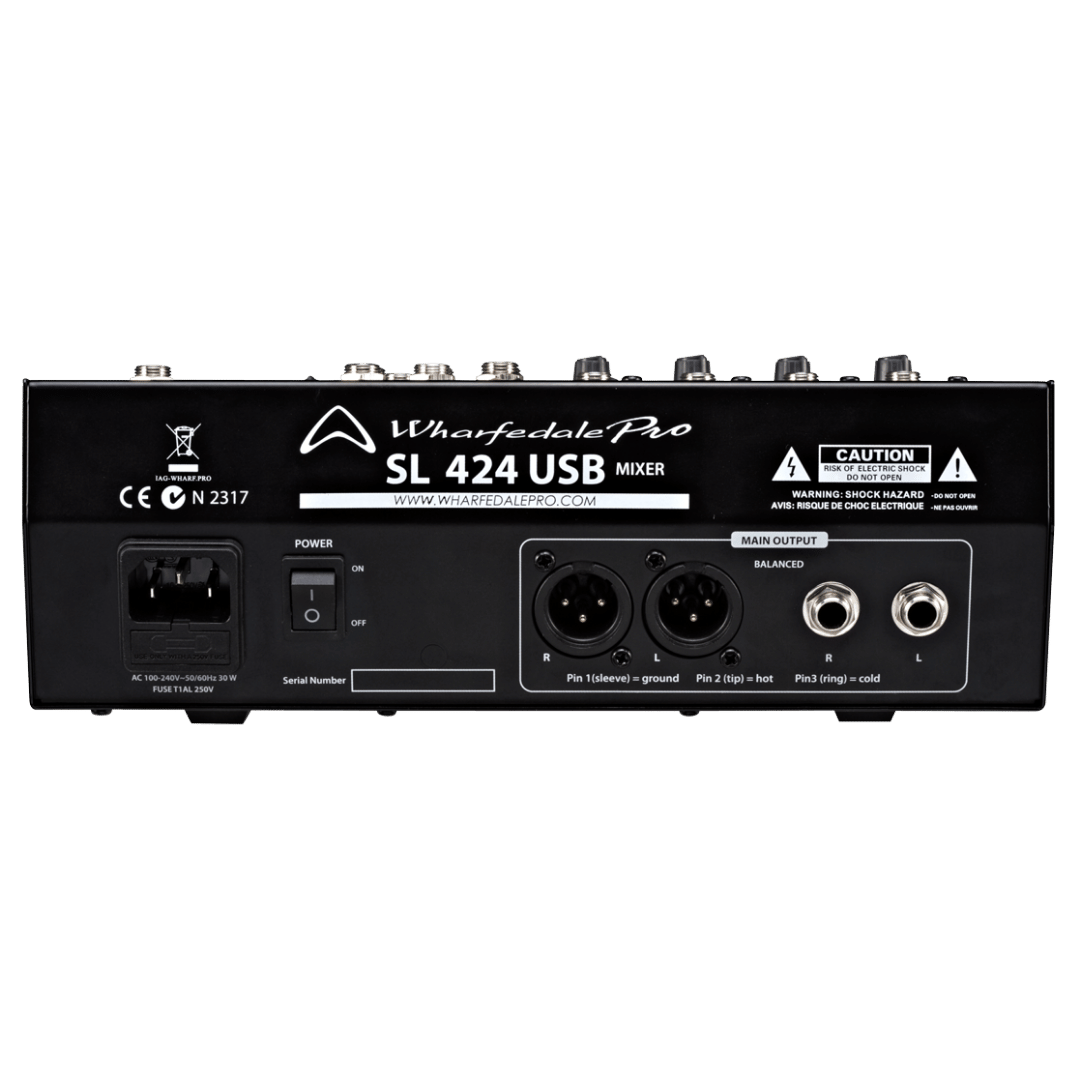

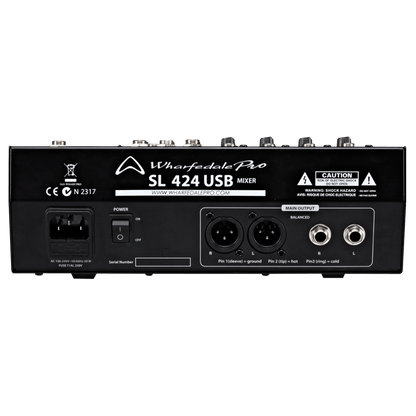

2 x XLR (Balanced), 2 x 6.3 mm Jack, Control Room Out

USB Interface

16-bit / 48 kHz (Plug and Play)

EQ Section

3-Band Musical EQ (All Channels)

Technical Performance

Equivalent Input Noise (EIN)

-127 dBu ±5 dBu (Mic Pre)

Frequency Response

20 Hz – 20 kHz (±2 dB)

Auxiliary

1 x Aux Send, 6.3 mm Headphone Out

Physical Specifications

Dimensions (H x W x D)

76 x 248 x 262 mm

Net Weight

2.7 kg
