Key Specifications

System Performance

Wireless Technology

Digital UHF (True Diversity)

RF Frequency Band

H55: 514 to 558 MHz

Max Operating Range

328' / 100 m (Line of Sight)

Latency / Dynamic Range

3.2 ms / 118 dBA

Max Transmitters per Band

Up to 32

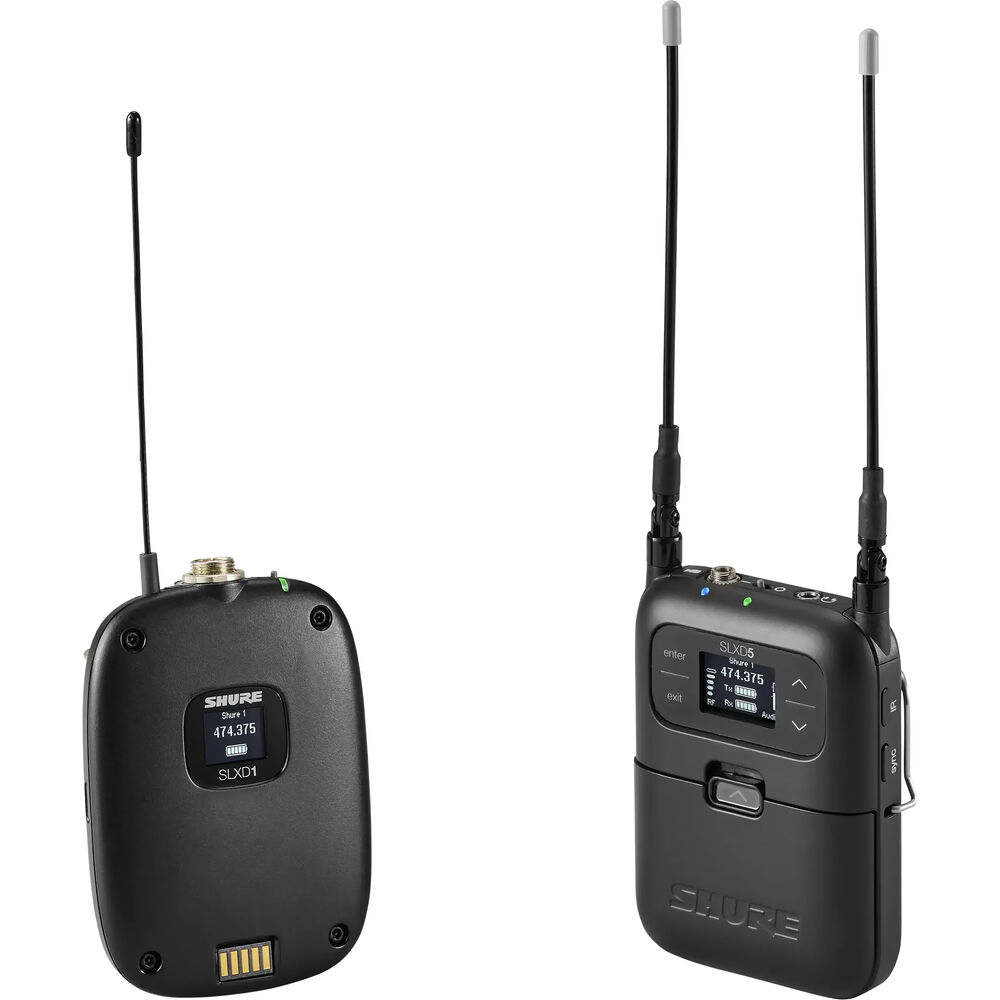

SLXD5 Portable Receiver

Receiver Type

Camera-Mount (Cold Shoe Hardware Included)

Audio Outputs

1/8" (3.5mm) Balanced & Headphone Out

Power Sources

2x AA, SB903 Li-ion, or USB-C Bus Power

SLXD1 Bodypack Transmitter

RF Output Power

Selectable 1 mW / 10 mW

Input Connector

TA4M (Mini-XLR 4-Pin)

Battery Life

Up to 8 Hours (SB903)

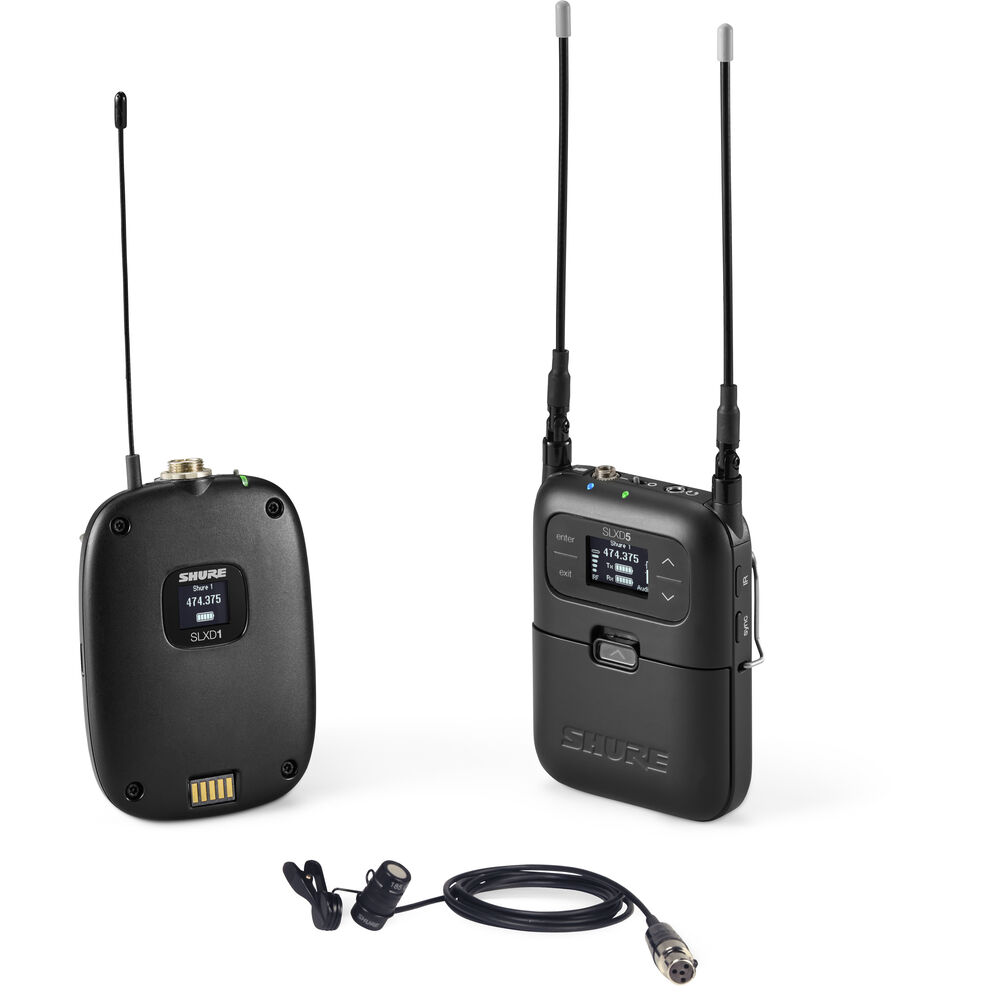

WL185 Lavalier Microphone

Polar Pattern

Cardioid

Frequency Response

50 Hz to 17 kHz

Maximum SPL

130.5 dB
