Key Specifications

System Performance

Wireless Technology

Digital UHF (True Digital Diversity)

RF Frequency Band

H55: 514 to 558 MHz

Max Operating Range

328' / 100 m (Line of Sight)

Latency / Encryption

3.2 ms / No

Audio Frequency Response

20 Hz to 20 kHz (Flat)

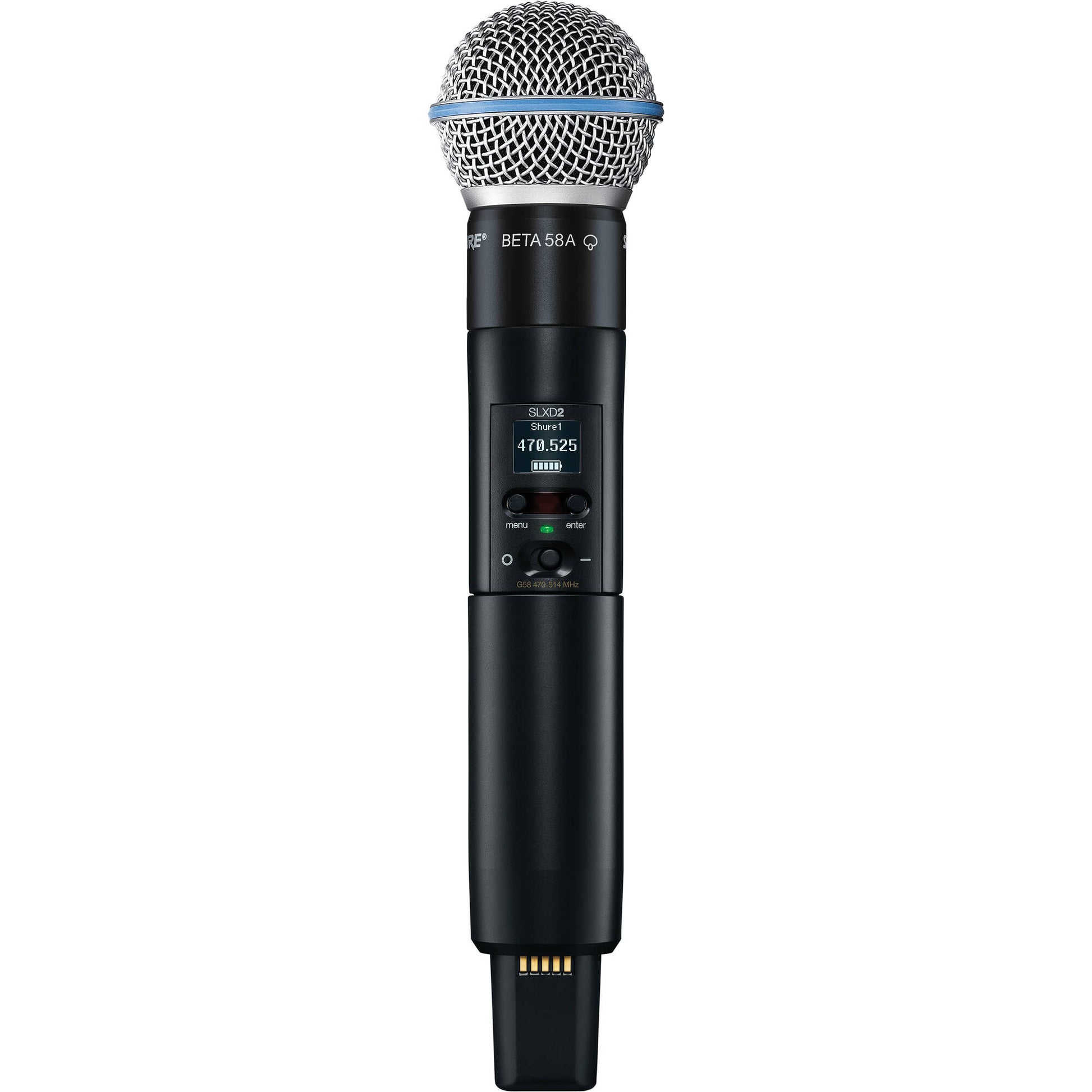

Transmitter (SLXD2) Design

RF Output Power

Selectable 1 mW or 10 mW

Display

High-Contrast OLED

Gain Range

0 to +21 dB

Sync Method

Infrared (IR)

Microphone Capsule (Beta 58A)

Type / Polar Pattern

Dynamic / Supercardioid

Capsule Frequency Response

50 Hz to 16 kHz

Maximum SPL

147 dB

Power & Physical

Battery Type

2x AA (Included) or Shure SB903 Li-ion

Battery Life

Up to 8 Hours (Alkaline or Lithium)

Housing Material

Machined Aluminum

Weight / Dimensions

147 g (5.2 oz) / 176 x 51.1 mm
