Key Specifications

Wireless Technology

Digital UHF (Diversity)

RF Frequency Band

470 to 608 MHz

RF Channel Frequencies

5520

Max Operating Range

328.1' / 100 m

Max Transmitters per Band

14

Dynamic Range / Latency

118 dB / 2.8 ms

Encryption

AES 256

App Compatibility

Yes (Android & iOS)

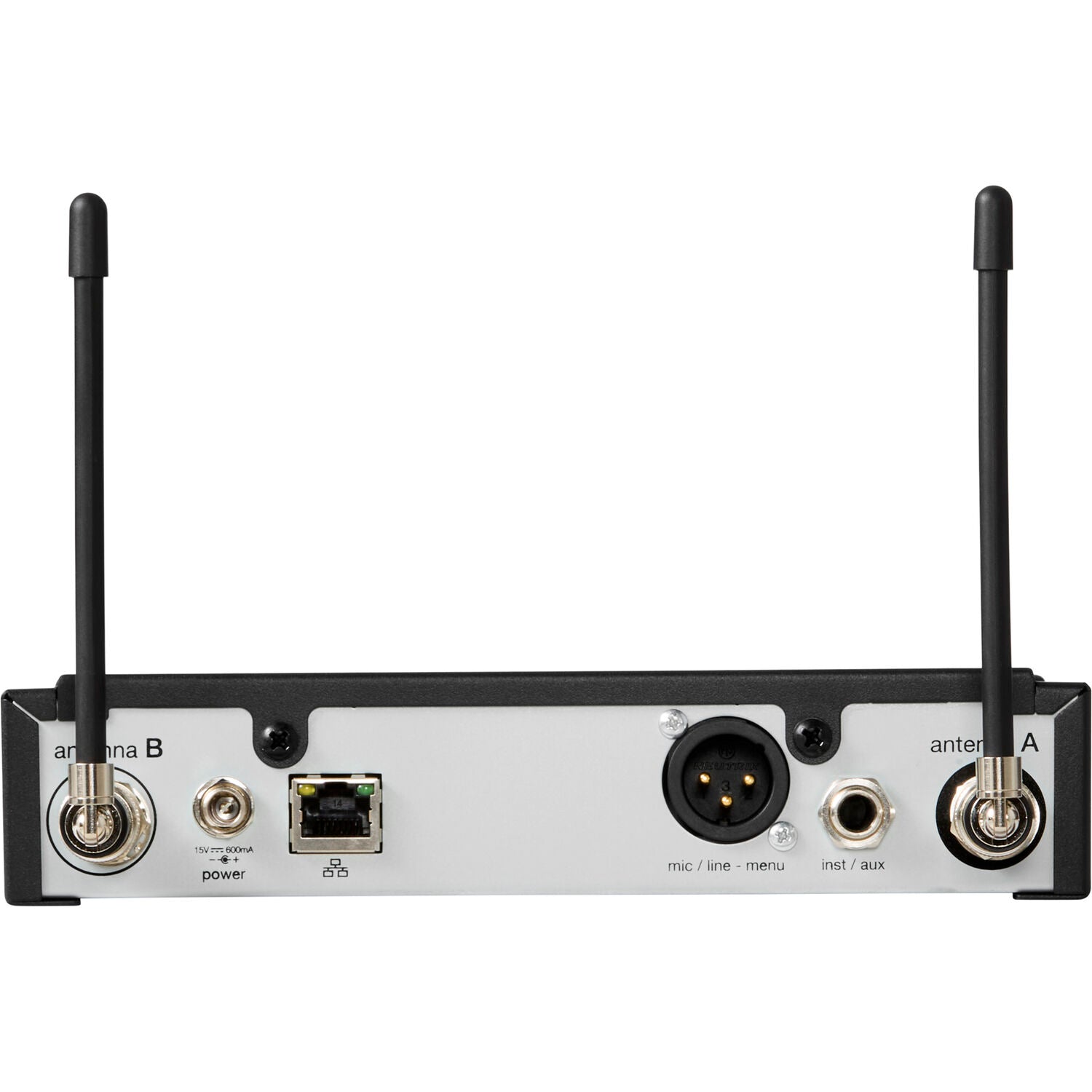

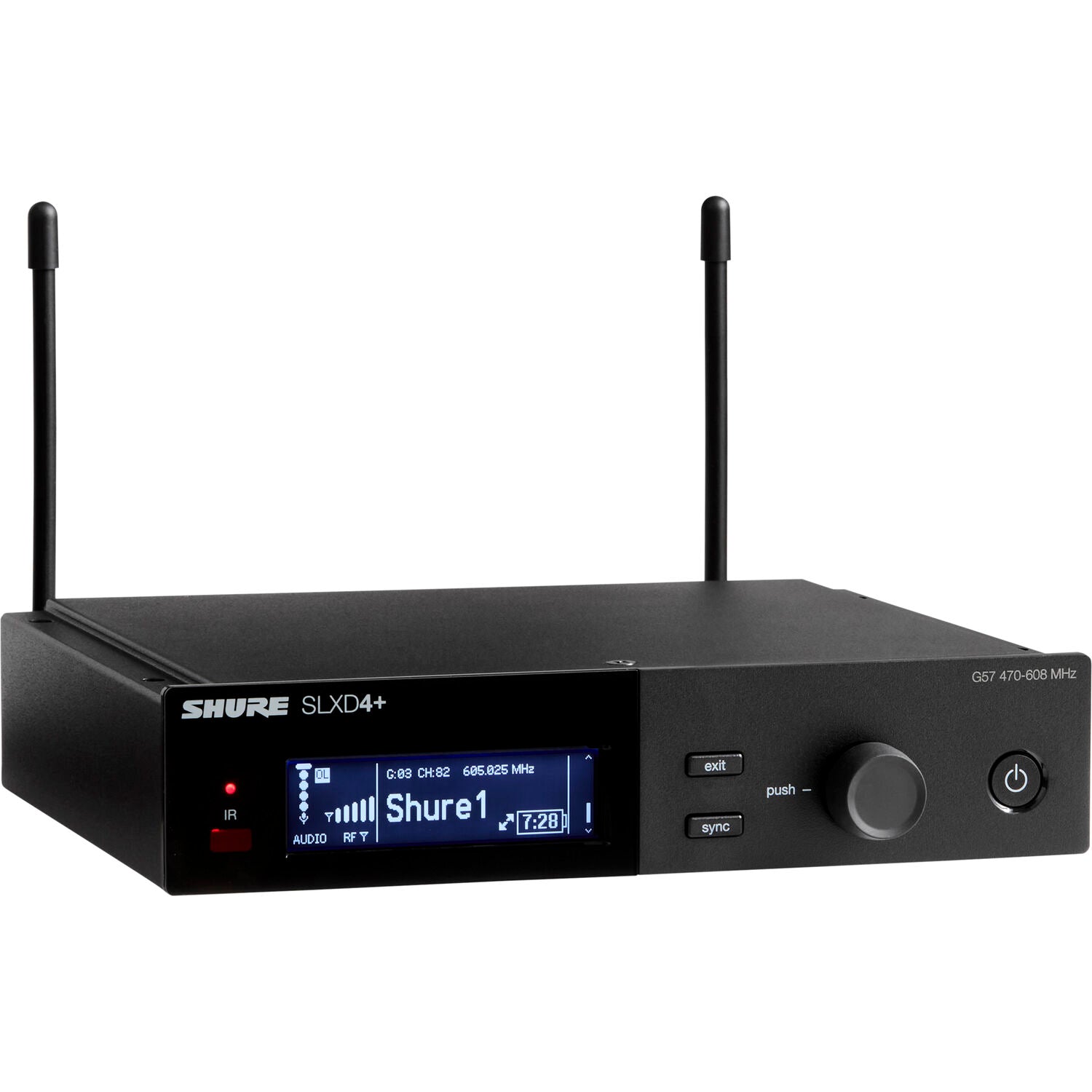

Receiver (SLXD4)

Type / Mounting

Tabletop / Rackmount (1 U Half-Rack)

Antennas

2x Removable

Audio Channels

1

Audio Outputs

1x XLR (Balanced), 1x 1/4" TS (Unbalanced)

Network I/O

1x RJ45

Gain Range

-18 to +42 dB

Display / Power

Backlit LCD / 15 VDC (Adapter Included)

Housing

Steel

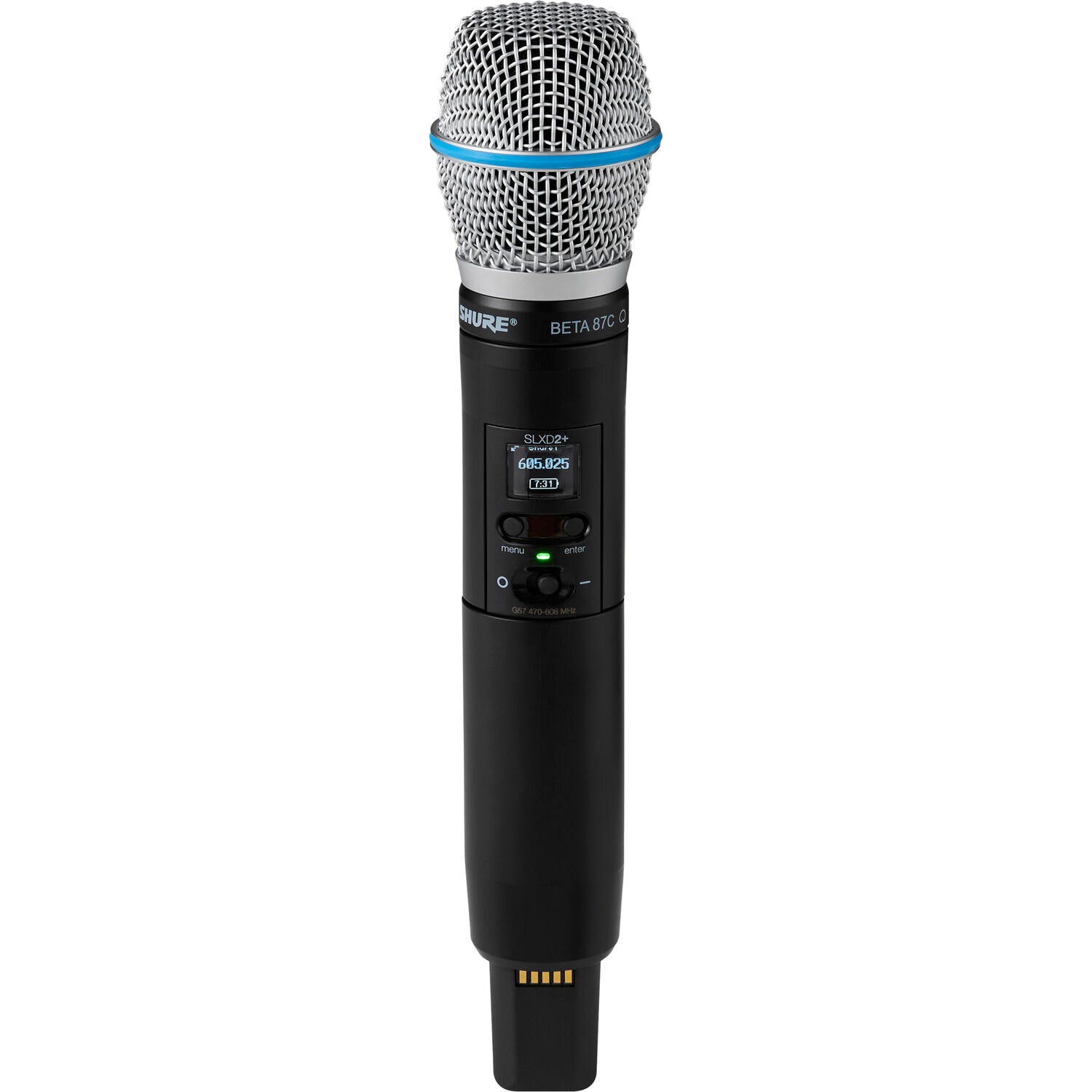

Transmitter (SLXD2)

RF Output Power

1 / 10 mW

Sync Method / Muting

IR Sync / On-Off Switch

Battery Type

2x AA (Included) or Shure SB903

Battery Life

8 Hours

Housing

Aluminum

Microphone Capsule

Capsule Type

Handheld (Interchangeable)

Polar Pattern

Supercardioid

Max SPL / Sensitivity

140.5 dB / -52.5 dBV/Pa

Dimensions & Weight

Receiver Size

7.8 x 6 x 1.7" (197 x 152 x 42 mm)

Receiver Weight

2 lb (900 g)

Transmitter Size

6.9 x 1.5" (176 x 37.1 mm)

Transmitter Weight

5.1 oz (144 g)

Packaging Info

Package Weight

7.215 lb

Box Dimensions

17.9 x 14.3 x 4.4"
