SLXD4Q+A=-G66
SLXD4Q+A=-G66
SHURE
UNIT: PIECE/S
Product Code: SKU:SHUR-SLXD4Q+/G-CHN-628
Key Features
SHURE SLXD4Q+A=-G66
SHURE SLXD4Q+A=-G66
|
Key Specifications |
|
|
System Performance |
|
|
Wireless Technology |
Digital UHF (True Digital Diversity) |
|
RF Frequency Band |
G57: 470 to 608 MHz (5520 Frequencies) |
|
Max Operating Range |
328' / 100 m (Line of Sight) |
|
Audio Latency |
3.2 ms |
|
Frequency Response |
20 Hz to 20 kHz (Flat) |
|
Receiver (SLXD4Q) Architecture |
|
|
Number of Channels |
4-Channel (Quad) |
|
Form Factor |
1U Rack-Mountable (Metal Housing) |
|

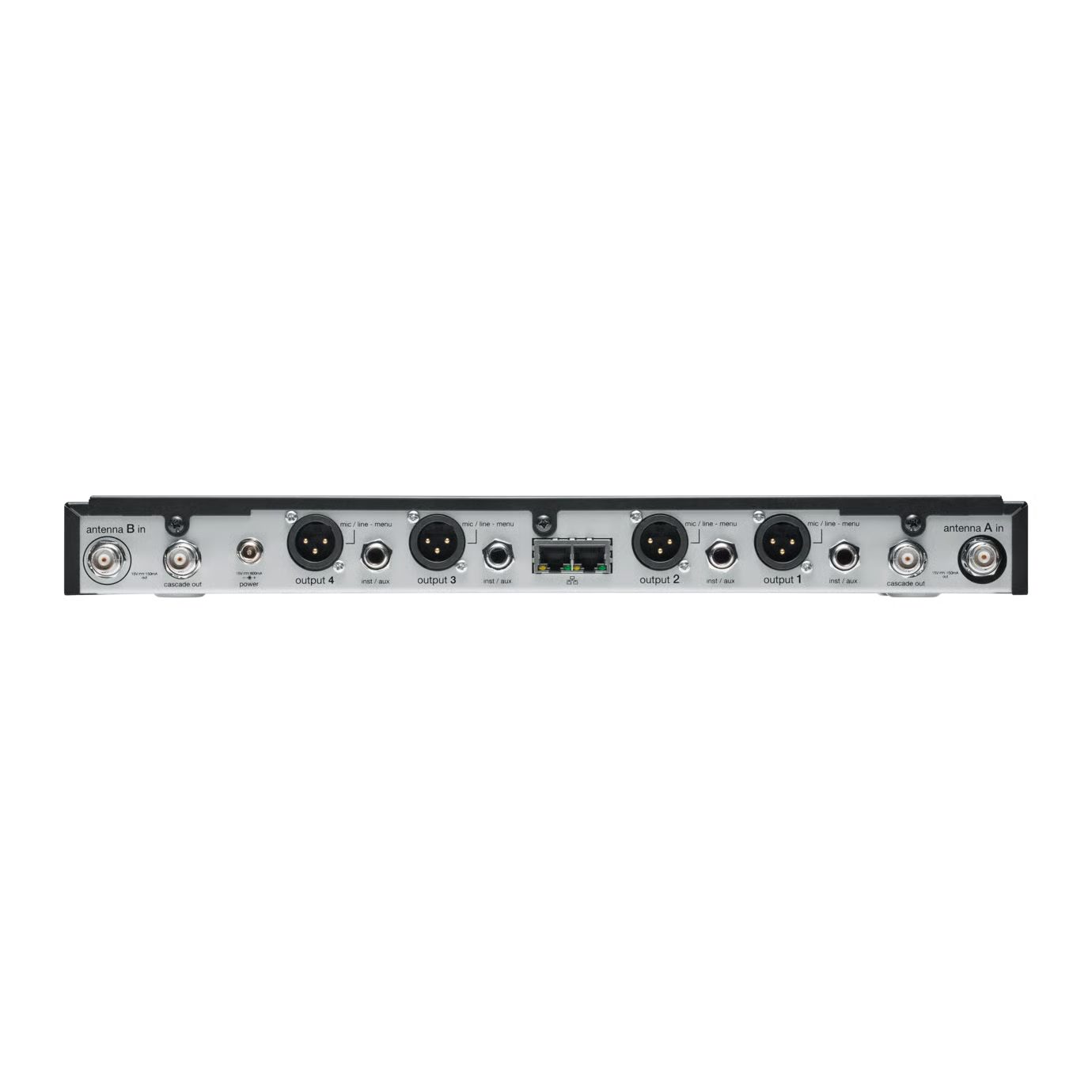

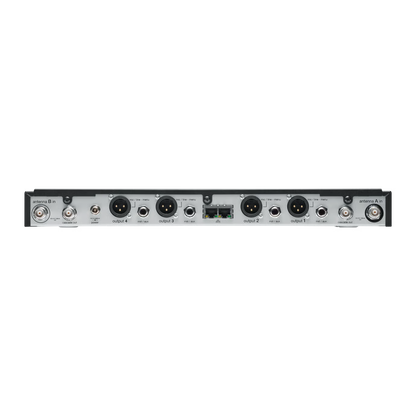

Audio Output I/O |
4x XLR (Mic/Line Balanced); 4x 1/4" TRS Balanced |
|
Network I/O |
2x RJ45 (Dual Ethernet Ports) |
|
Gain Range |
-18 to +42 dB (1 dB Steps) |
|
Power & Physical |
|
|
Power Requirements |
15 VDC @ 0.9 A (AC Adapter Included) |
|
Dimensions / Weight |
393 x 152 x 42 mm (15.5 x 6 x 1.7") / 1.75 kg (3.9 lb) |
|
Package Weight |
8.72 lb |
|
Included Hardware |
Rackmount Kit, 2x 1/4 Wave BNC Antennas |
SHURE SLXD4Q+A=-G66 Accessories
- No accessories available.
