Key Specifications

Processing

• Switching Type: Pushbutton, Software
• Processing Resolution: DCI 4K at 60 fps
• Color Processing: 8-Bit 4:2:2, 10-Bit 4:2:2, 12-Bit 4:4:4
• Audio Processing: 48 kHz / 24-Bit

Input & Output

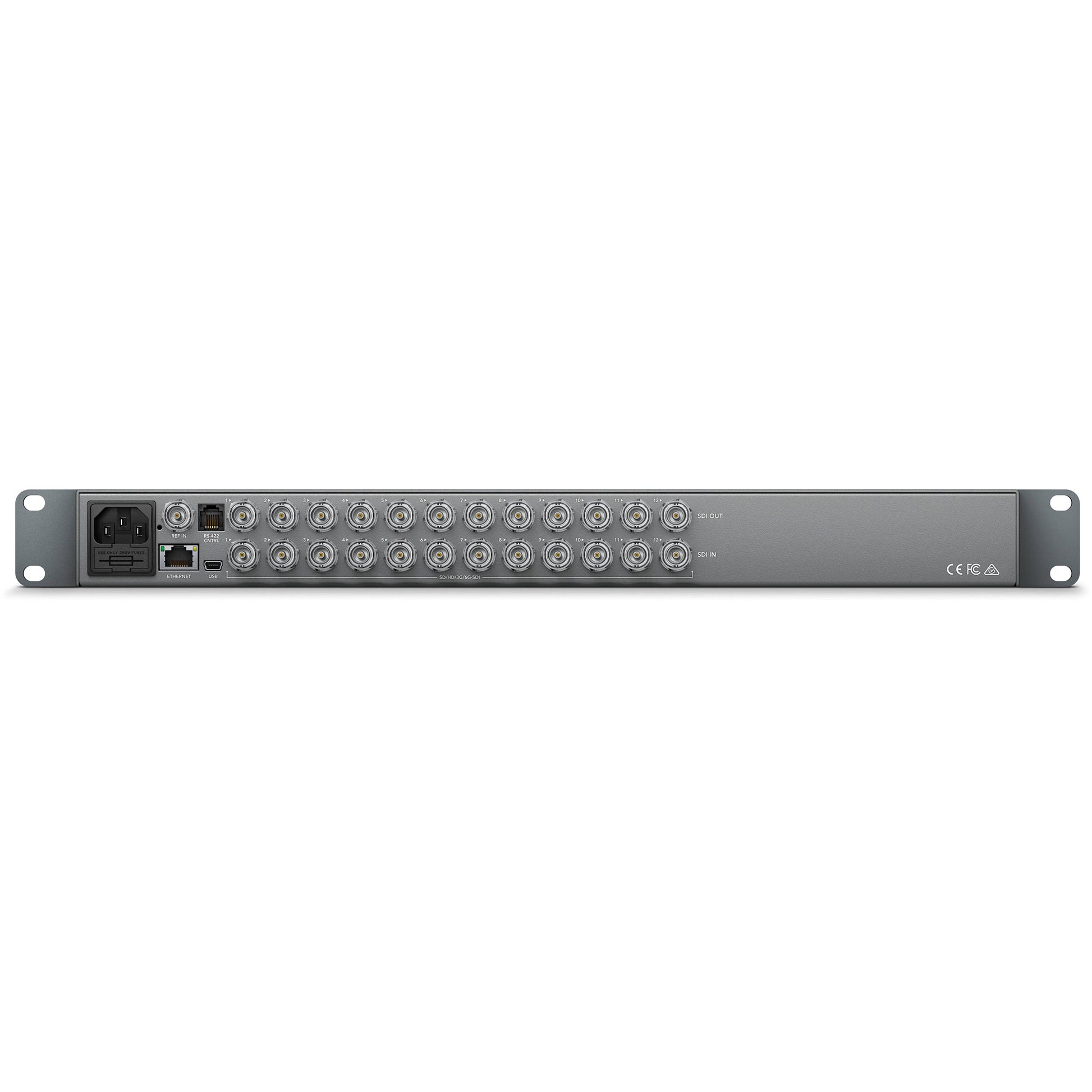

• Video: 12x BNC (6G-SDI) Inputs and 12x BNC (6G-SDI) Outputs
• Embedded Audio: SDI Input and Output
• Supported Video Formats:
  • DCI 4K up to 60 fps, UHD 4K up to 60 fps
  • DCI 2K up to 60 fps, DCI 2KPsF up to 30 fps
  • 1080p/PsF/i up to 60 fps
  • 720p at 50/59.94/60 fps
  • 480i/576i SD

Connectivity

• Other I/O: 1x BNC Reference, 1x RJ11 RS-422, 1x RJ45 LAN, 1x Micro-USB RS-232
• Video Standard Compliance: SMPTE 259M/292M/296M/310M/425M-B, ITU-R BT.601/BT.656
• HDCP/HDR Support: Yes

Hardware & General

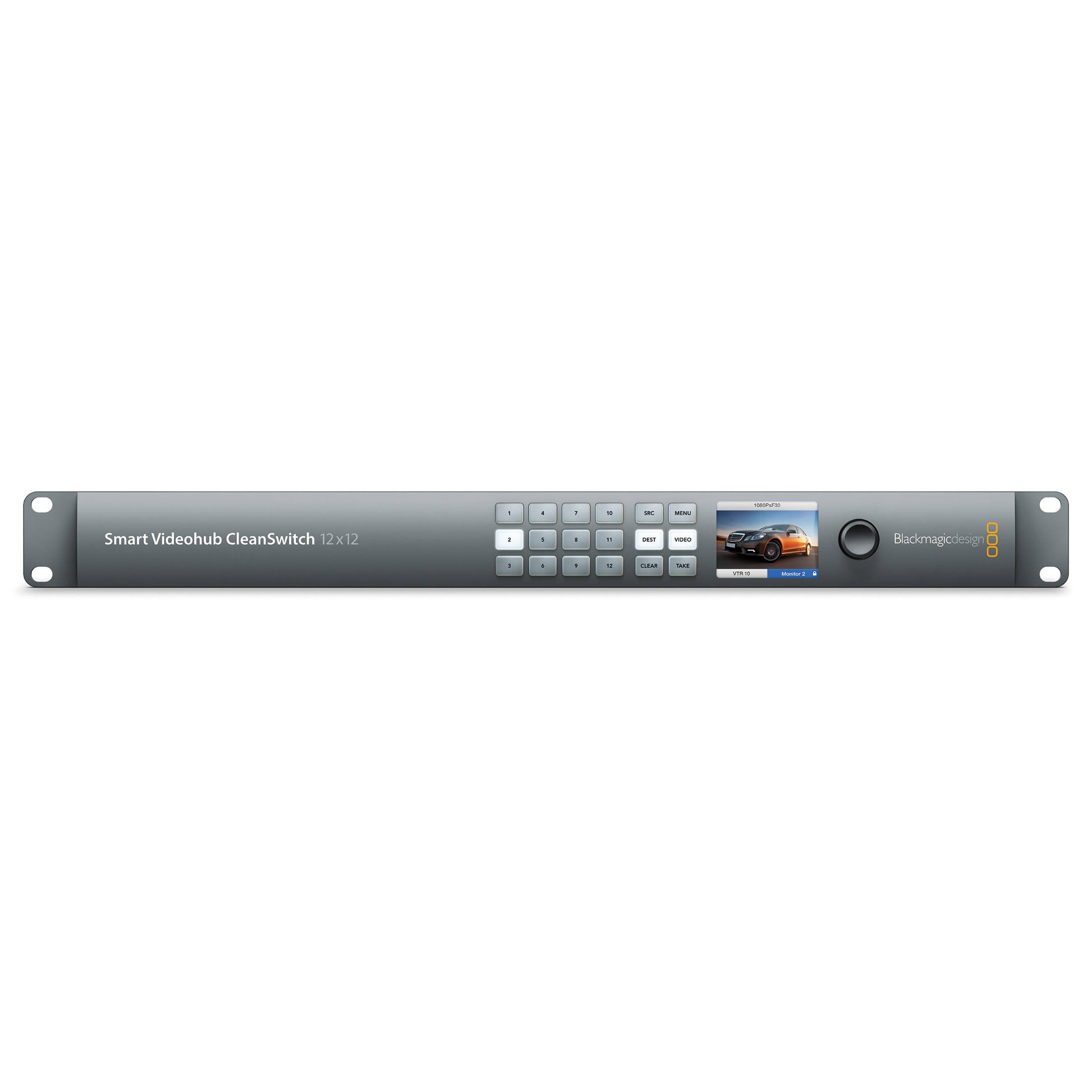

• Display: 2.2"
• OS Compatibility: macOS, Windows
• Rack Form Factor: 1 RU
• Dimensions: 19 x 6.3 x 1.73" / 48.3 x 16 x 4.39 cm
• Weight: 4.14 lb / 1.88 kg
• Power: 1x IEC C14 (100 to 240 VAC)

Operating Conditions

• Operating: 32 to 72°F / 0 to 40°C, up to 90% Humidity
• Storage: -4 to 113°F / -20 to 45°C
