Key Specifications

System Capacity

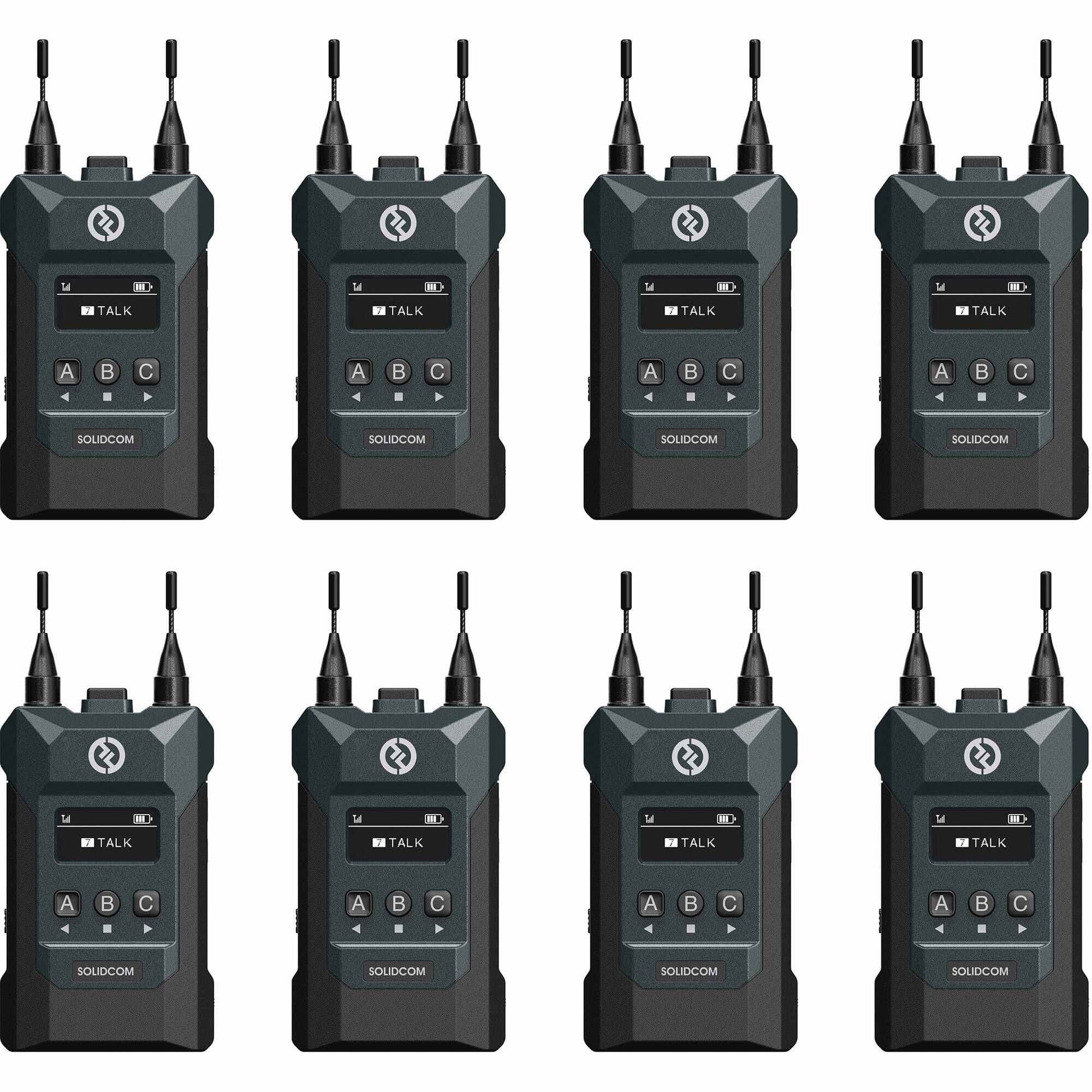

• Users: 8 per system (Expandable via Cascade)
• Groups: Up to 3 independent groups
• Technology: Digital DECT 6.0 (1.9 GHz)
• Range: 1476' / 450 m (Line of Sight)

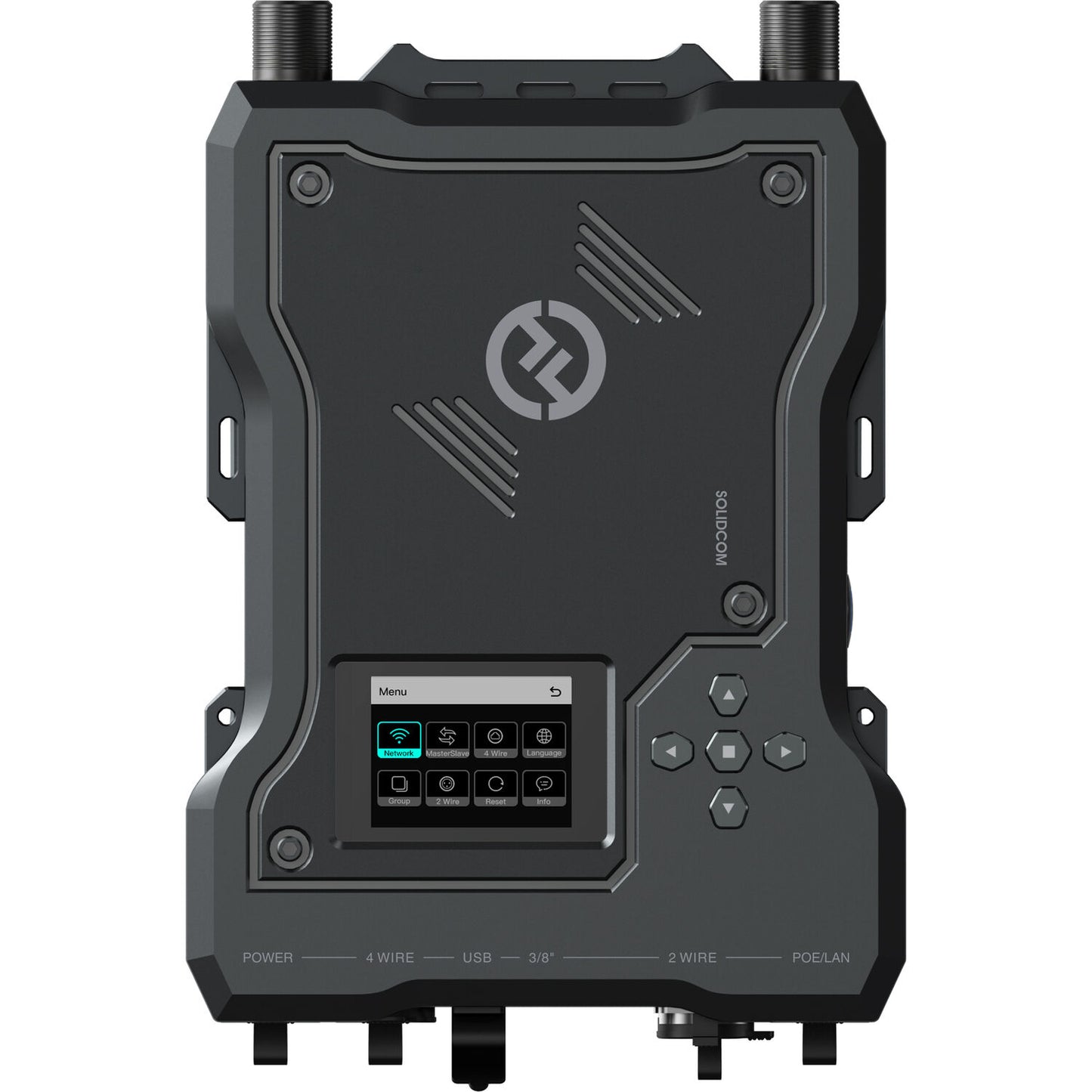

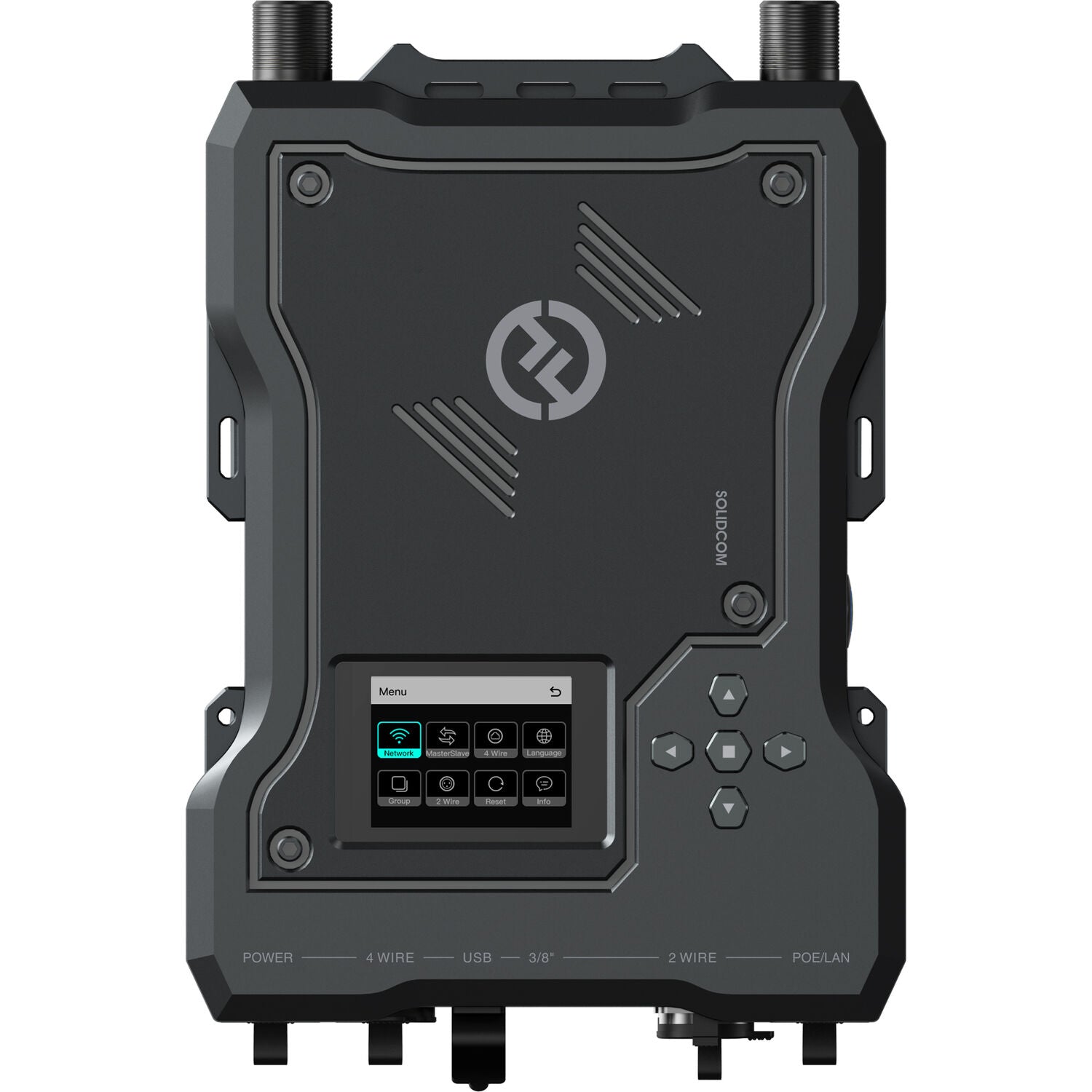

Base Station Connectivity

Interfaces & I/O

• 4-Wire: 1x RJ45 Audio Input/Output
• 2-Wire: 1x XLR Interface
• Network: 1x POE Interface (RJ45)
• Cascade: 1x Power Supply/Data (RJ45)

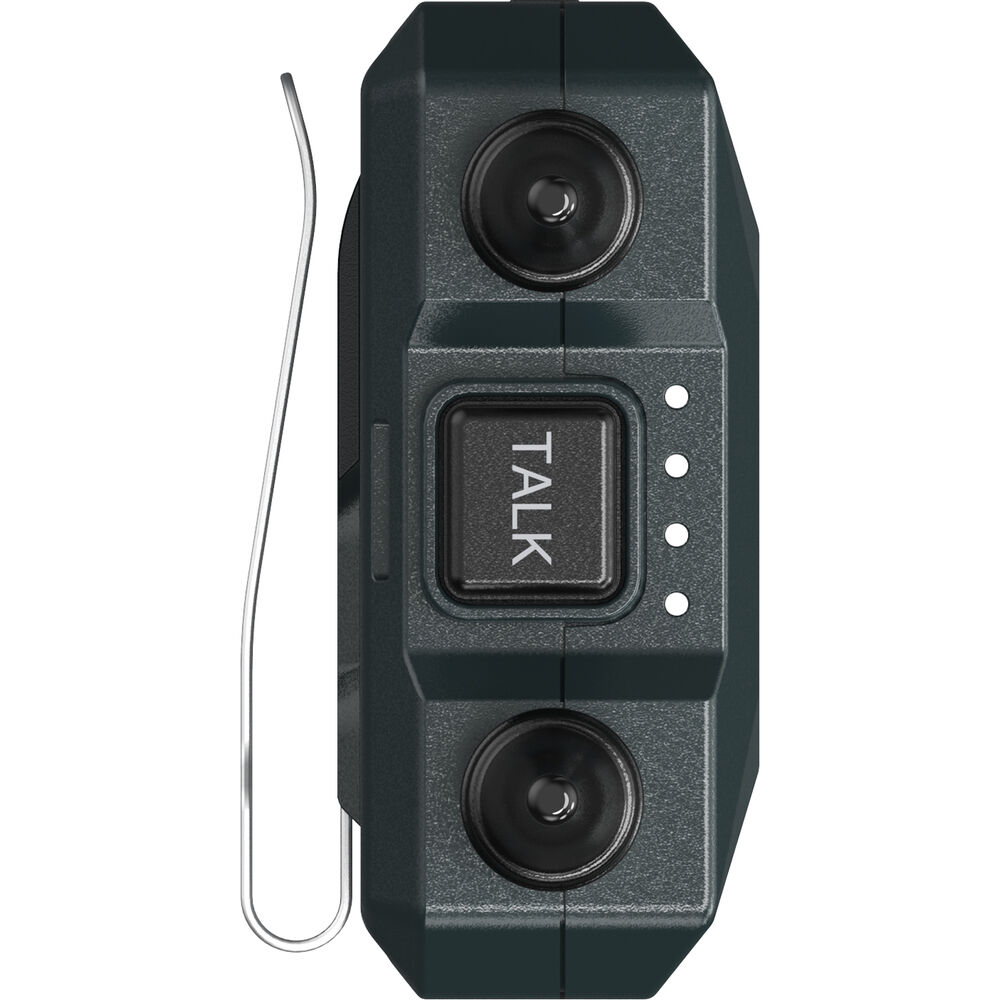

Beltpack & Audio Performance

Audio Details

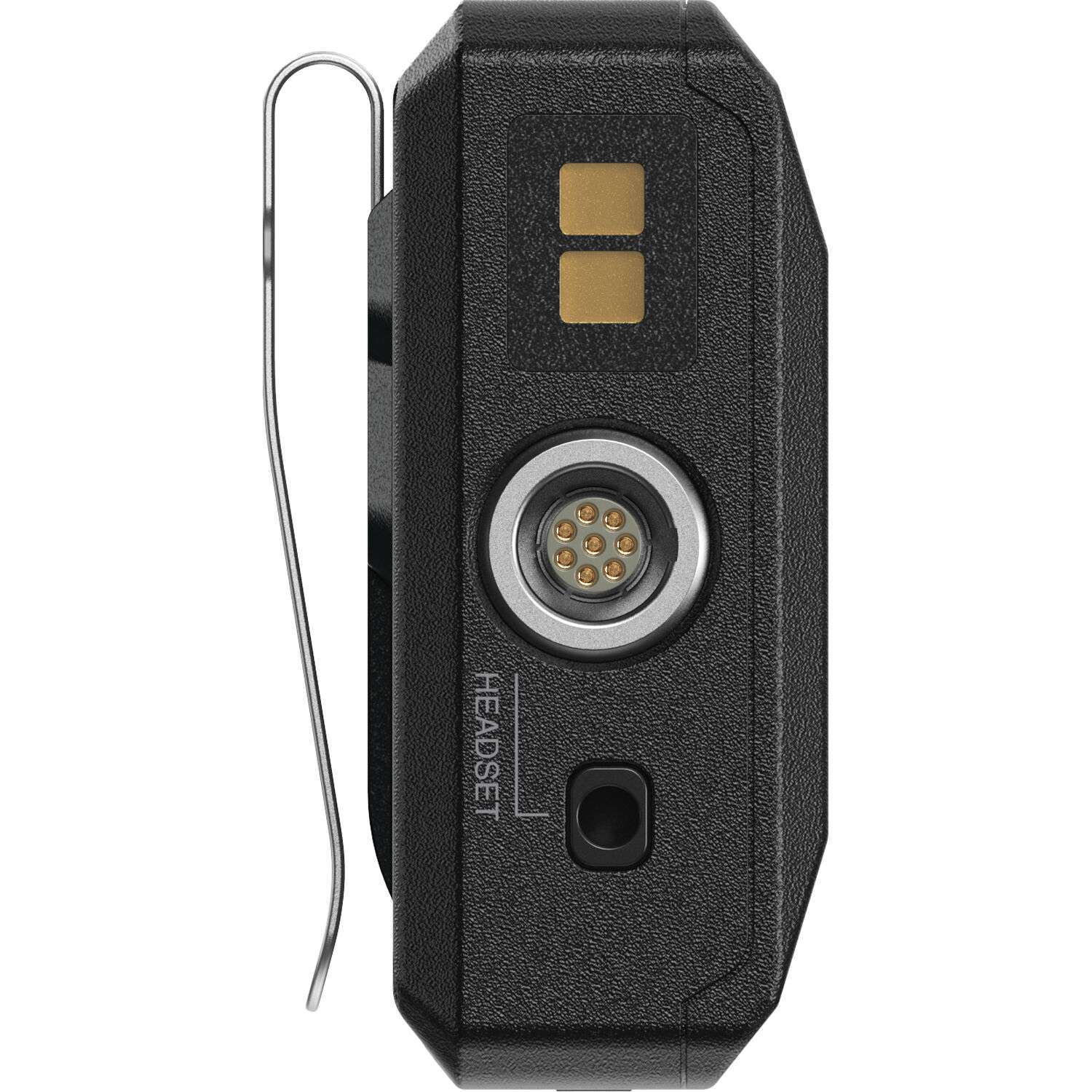

• Connectors: 1x LEMO (8-Pin), 1x 1/8" (3.5 mm)
• Frequency Response: 200 Hz to 7 kHz
• Sidetone: Adjustable levels

Battery (Beltpack)

• Type: 1500 mAh LiPo (Removable)
• Runtime: 6 Hours per charge
• Recharge Time: 2.5 Hours

Power & Physical

Base Station Power

• Primary: POE or Included AC Adapter

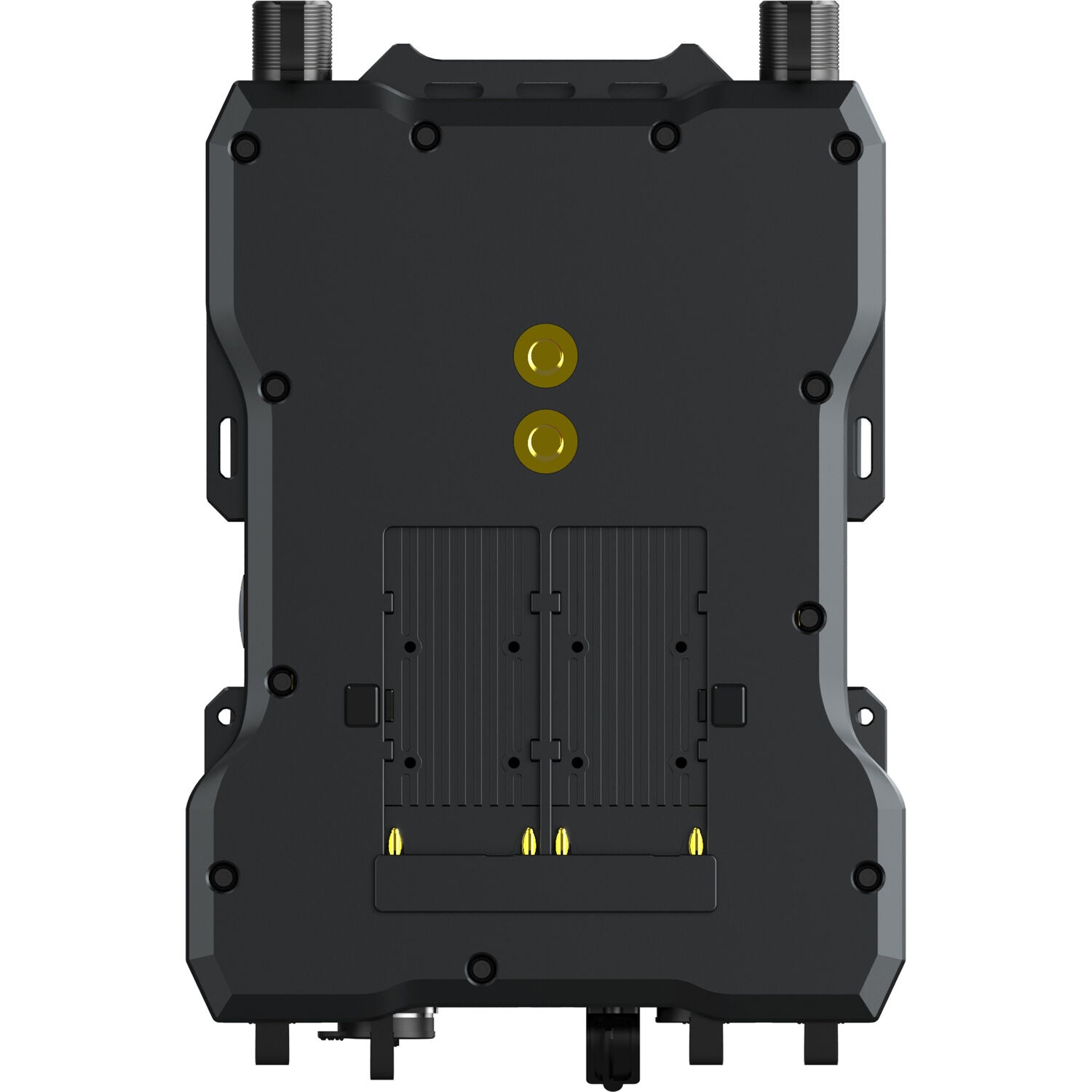

• Backup: Dual NP-F Battery Plate
• Consumption: 3 W

Build

• Base Weight: 3.4 lb / 1560 g
• Beltpack Weight: 7.1 oz / 200 g
