Key Specifications

Users per System

8

Wireless Technology

Digital 1.9 GHz

Operating Range

1312.3' / 400 m

Encryption

No

Inputs/Outputs

No

Earpiece Design

Over-Ear (Circumaural)

Number of Earpieces

Single Earpiece (Left or Right Side)

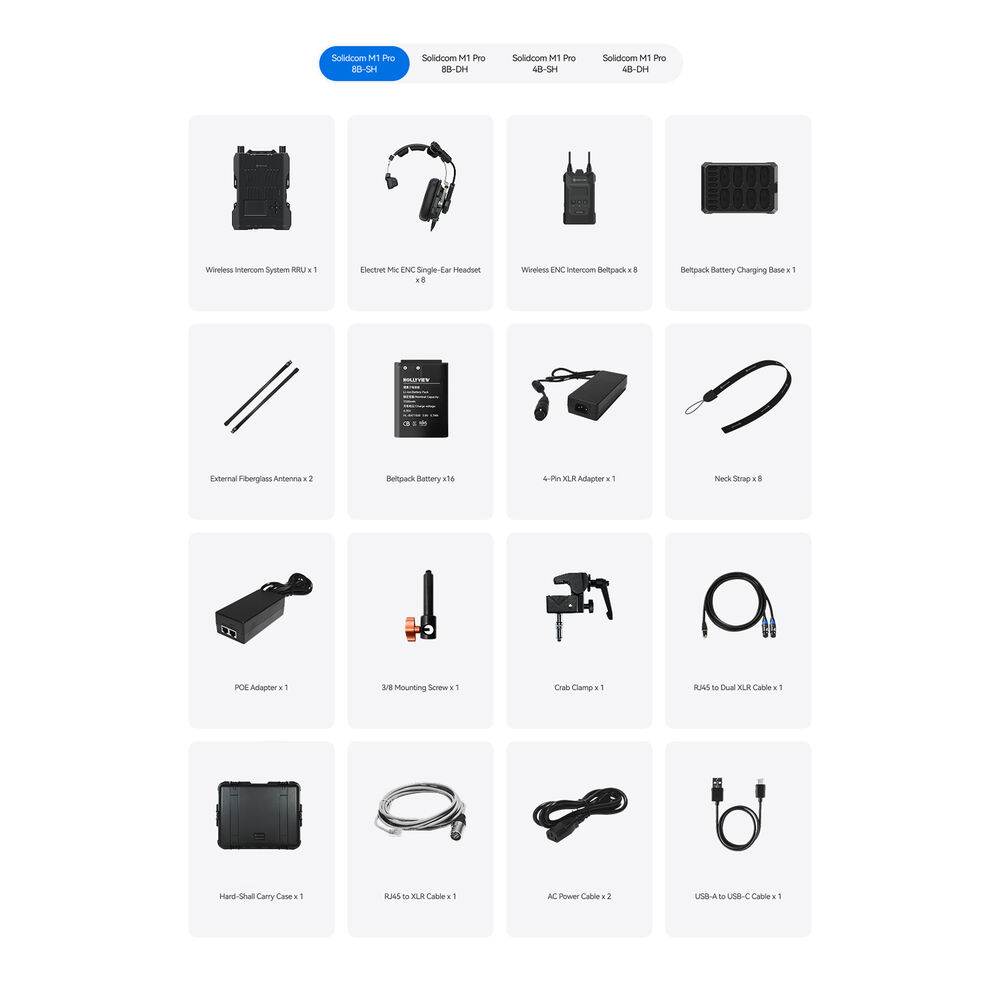

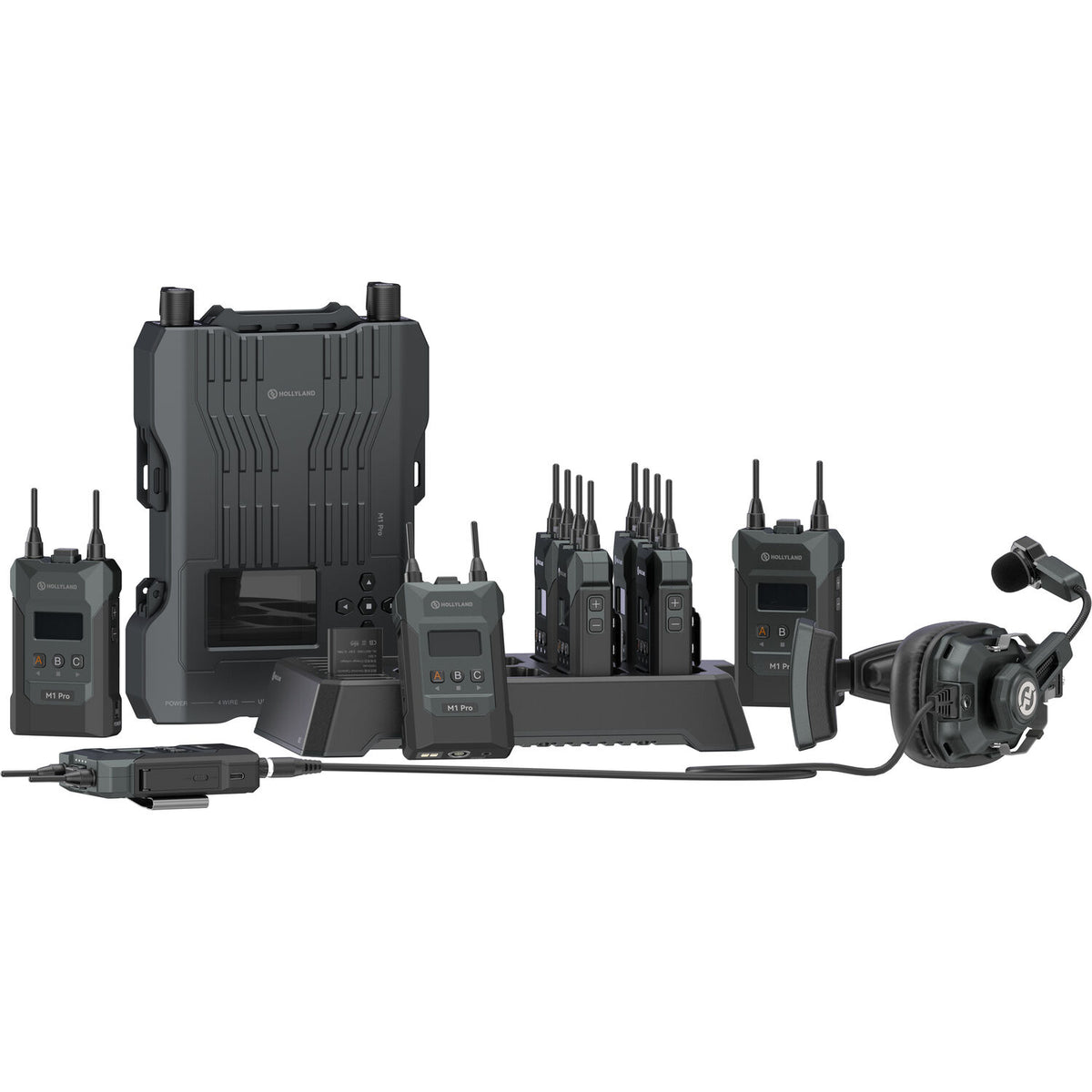

System

Number of Included Headsets

8x Single-Sided Headset

Number of Included Transceivers

1x Base Station

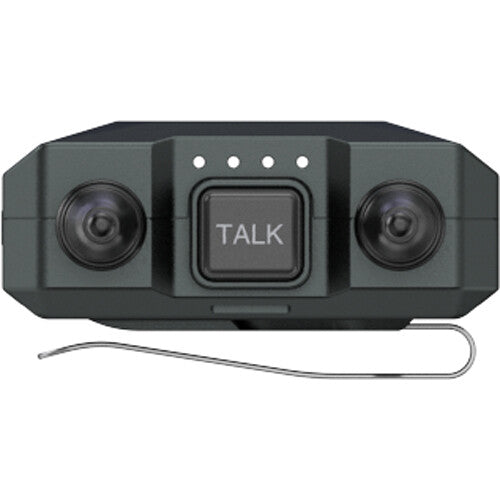

8x Beltpack

Users per System

8

Wireless Connectivity

Wireless Technology

Digital 1.9 GHz

Operating Range

1312.3' / 400 m

RF Bandwidth

1.72 MHz

Max Transceivers per Band

8

Wireless Modulation

GFSK

Duplex Mode

Full-Duplex (FDX)

Approximate RF Sensitivity

-93 dBm

Encryption

No

Mobile App Compatible

No

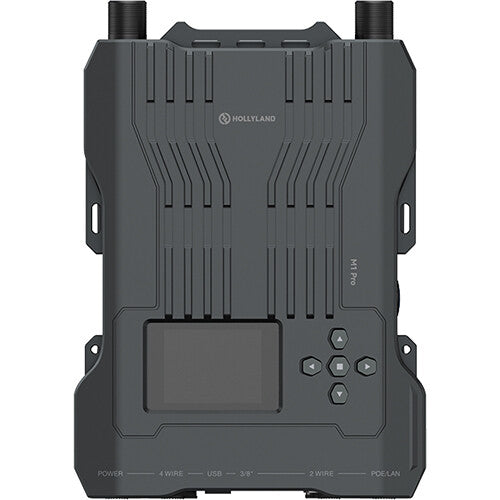

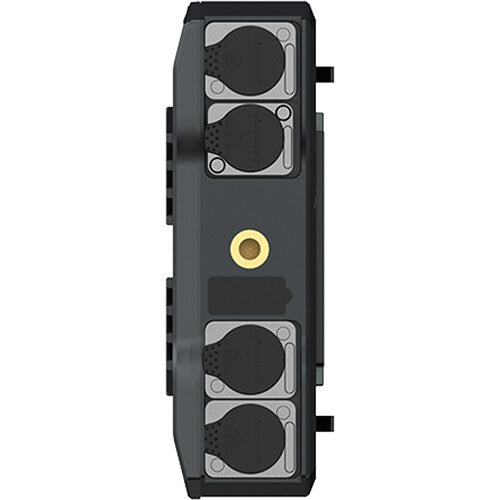

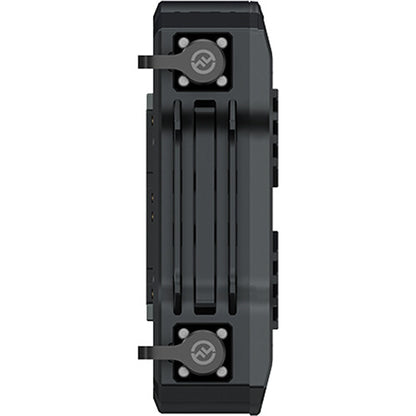

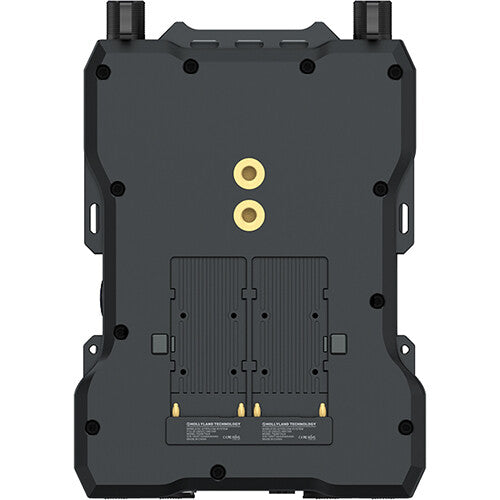

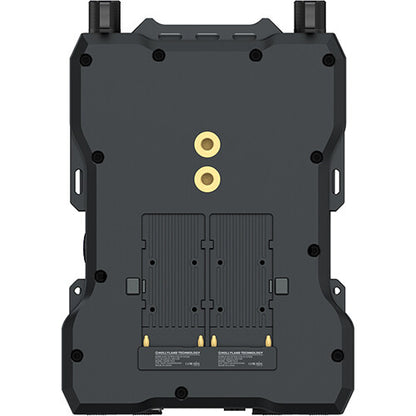

Base Station

Inputs/Outputs

No

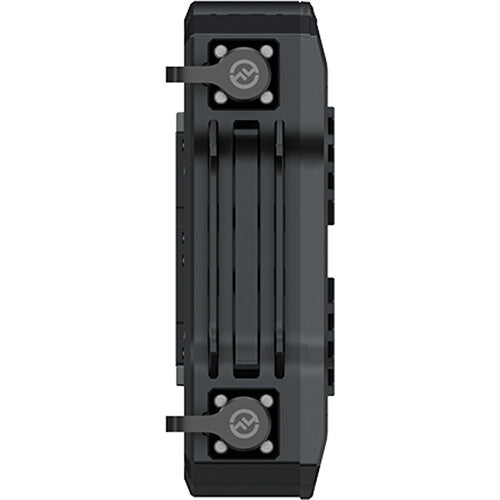

Antenna

Base Station:
1x Internal
Base Station:
2x External, Detachable

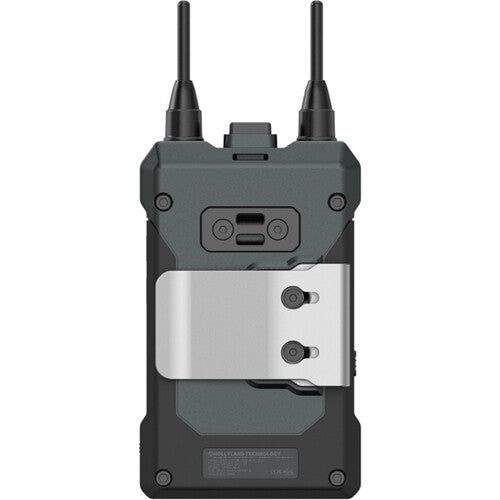

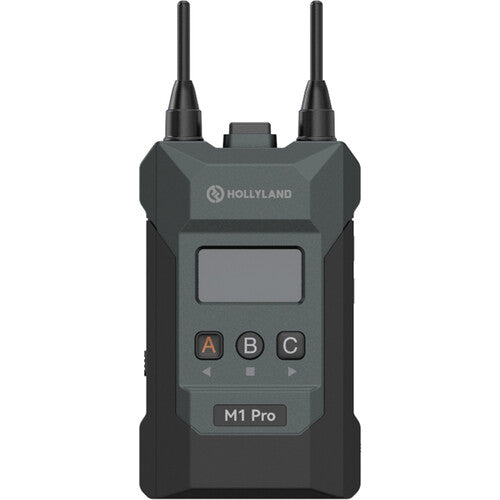

Beltpack:
2x External, Fixed

Number of Charging Ports

1

AC/DC Power Adapter

Included

Power Consumption

3 W

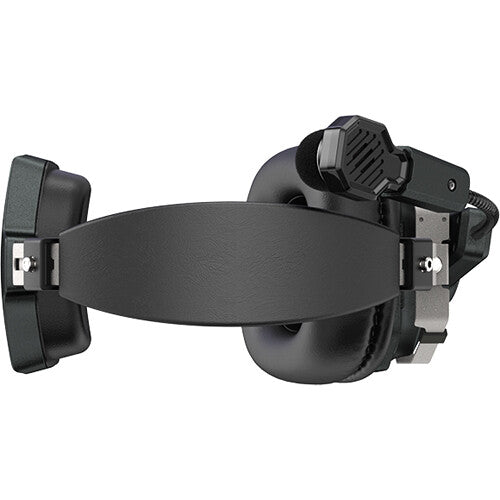

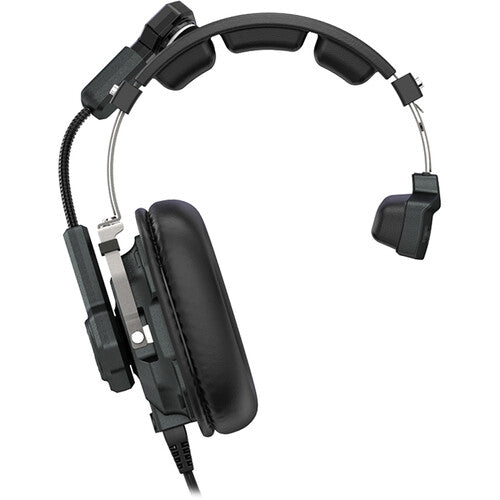

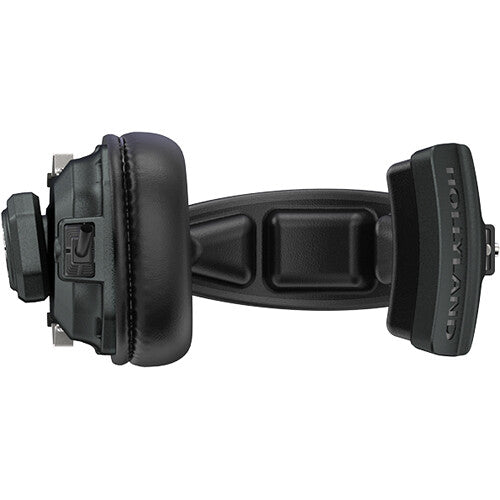

Headphone

Earpiece Design

Over-Ear (Circumaural)

Earpiece Connection / Wearing Style

Headband

Number of Earpieces

Single Earpiece (Left or Right Side)

Sound Field

Mono

Controls/Microphone Location

Controls: Bodypack
Microphone: Adjustable Boom

Frequency Response

200 Hz to 7 kHz

Microphone

Type

Electret Condenser

Mic Boom Location

Interchangeable (Left or Right Side)

Noise Cancelling

Yes

Wired Connectivity

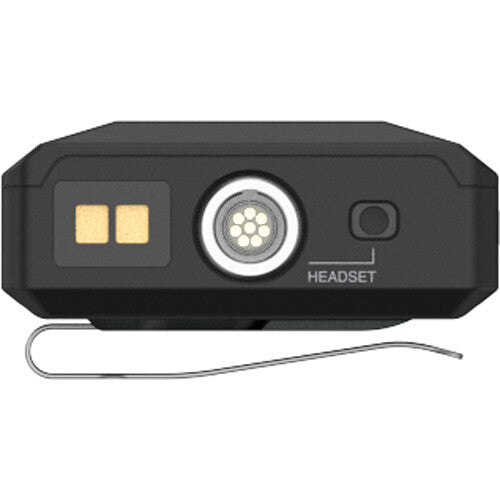

Wired Audio Connector

1x 1/8" / 3.5 mm
1x LEMO (Unspecified Type)

Battery

Battery Type

Base Station:
1 x Built-In Rechargeable Battery
Beltpack:
2 x Built-In Rechargeable Battery

Battery Chemistry

Lithium-Ion

Capacity (mAh)

1500 mAh

Physical

Operating Conditions

32 to 113°F / 0 to 45°C

Storage Conditions

-4 to 140°F / -20 to 60°C

Dimensions

Base Station:
10.1 × 7.1 × 1.9" / 255.5 × 180.4 × 48.5 mm
Beltpack:
4.1 × 2.6 × 0.9" / 105 × 65 × 22.4 mm (Each)

Weight

Base Station:
3.4 lb / 1560 g
Beltpack:
7.1 oz / 200 g (Each)

Packaging Info

Package Weight

42.12 lb

Box Dimensions (LxWxH)

25.3 × 20.7 × 14.7"
