Key Specifications

Max I/O Capacity

48x Input / 36x Output

Number of Analog Input Channels

No

Number of Mic Preamps

24

Number of Analog Output Channels

16

Faders & Level Adjustment

25x 3.9" / 100 mm Fader

Built-In Effects

Reverb, Stereo Delay (Tap), Gated Reverb, ADT, 2x Chorus, Flanger, Phaser

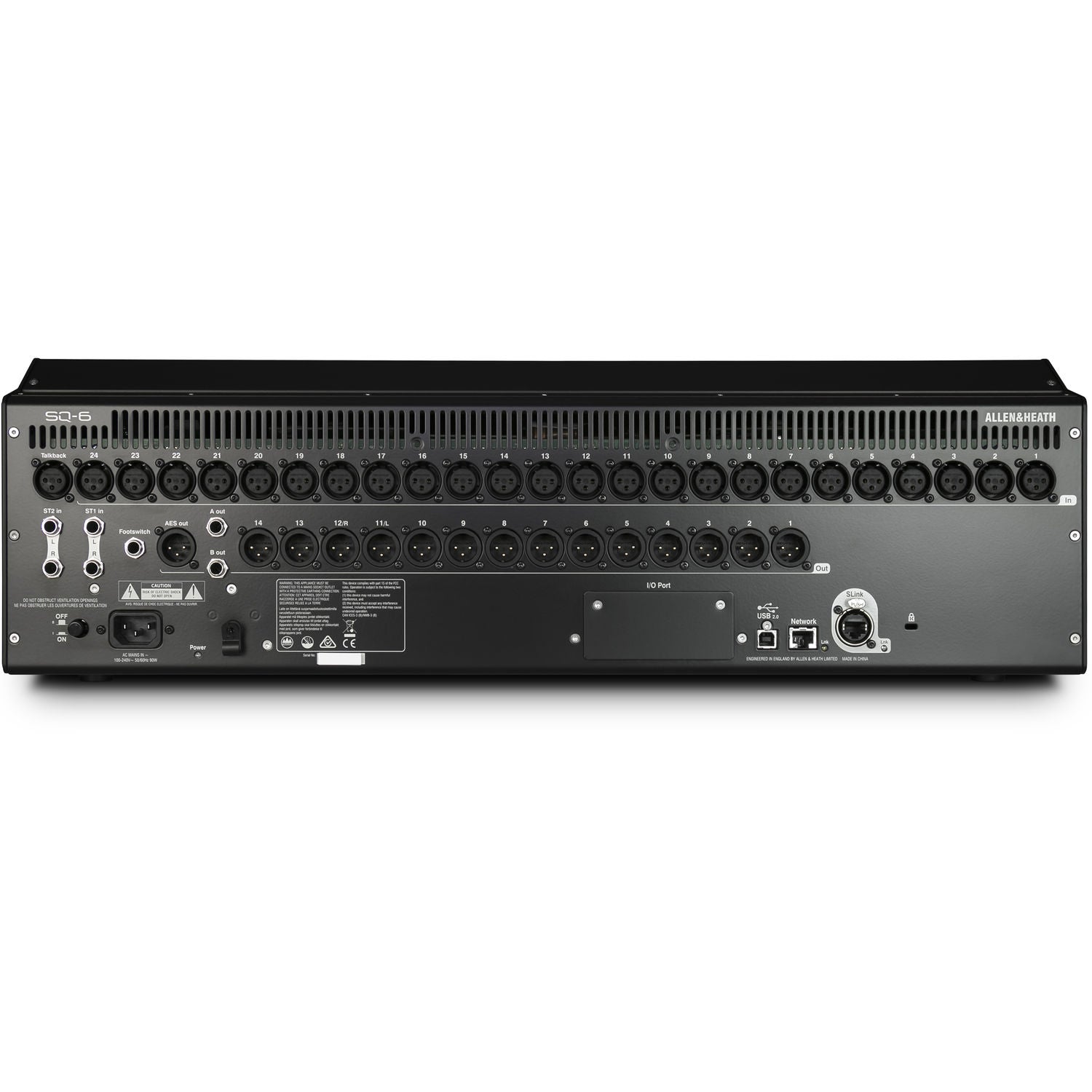

Connectivity

Analog Inputs

1x XLR Talkback Input
24x XLR Balanced Mic/Line Input
4x 1/4" TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled)
1x 1/8" / 3.5 mm Unbalanced Aux Input

Analog Outputs

14x XLR Balanced Output
2x 1/4" TRS Balanced Output

Digital I/O

1x RJ45 (Network)
1x XLR AES3 Output
1x etherCON (I/O)

USB I/O

1x USB-A 2.0 (External Memory)
1x USB-B 2.0 (Audio Streaming)

Wireless

No

Rack Mountable

No

Mixer

Mix Routing

8x Stereo FX Return

Groups

8x Mute Group, 8x DCA Group

Presets

Yes

Display

7" Touchscreen

Meters

Main: 2x 12-Segment LED
Channel: Single LED

Signal Processing

Gain/Trim Range

Line: ±24 dB (Stereo)
Line/Mic: 0 to +60 dB (1 dB Steps)

Input Pad

-20 dB

EQ

4-Band Parametric
HF Shelf, 2x MF Peak/Notch, LF Shelf

Filters

High-Pass: 20 Hz to 2 kHz, 12 dB/Oct

Dynamic Processing

Compressor, Gate (Inputs), Limiter (Master)

Graphic EQ

28-Band 1/3 Octave, ±12 dB (31 Hz–16 kHz)

Audio Delay

Adjustable Up to 682 ms

Automatic Mic Mixing

Yes

Digital Audio

Sample Rate

96 kHz (Supports 44.1 / 48 / 88.2 / 96 kHz AES3)

Bit Depth

Up to 96-Bit
Stereo Record: 24-Bit
Stereo Playback: 16 / 24-Bit

Performance

Frequency Response

20 Hz – 20 kHz (+0/-0.5 dB)

Max Input Level

Mic/Line: +30 dBu
Aux Input: +22 dBu (+4 dBu) / +18 dBu (0 dBu)

Analog Dynamic Range

112 dB

THD+N

0.006% at Unity Gain
0.002% Mic/Line Input to AES3 Output
0.003% at +30 dB Gain

Compatibility

OS Compatibility

Windows 10 (64-bit), macOS 10.14–11, Android, iOS

App Compatibility

SQ MixPad (Android/iOS) — Remote Control, Setup, Firmware Update

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

No

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions (W × D × H)

25.1 × 20.3 × 7.8 in / 63.8 × 51.6 × 19.8 cm

Weight

29.3 lb / 13.3 kg

Package Weight

40.3 lb

Box Dimensions (L × W × H)

32.5 × 27 × 14.5 in
