Key Specifications

Mixer

• Max I/O Capacity: 48x Input / 36x Output
• Number of Analog Input Channels: No
• Number of Mic Preamps: 16
• Number of Analog Output Channels: 14
• Mix Routing: 8x Stereo FX Return
• Groups: 8x Mute Group, 8x DCA Group
• Presets: Yes
• Display: 7" Touchscreen
• Faders & Level Adjustment: 17x 3.9" / 100 mm Fader
• Meters: Main Meter: 2x 12-Segment LED, Channel Meter: Single LED

Signal Processing

• Gain/Trim Range: Line: ±24 dB (Stereo Channels), Line/Mic: 0 dB to +60 dB (in 1 dB Steps)
• Input Pad: -20 dB
• Input Polarity: Normal/Reverse
• Dynamic Processing: Input Channels: Compressor, Gate, Master: Compressor, Limiter
• EQ: FX Returns: 4-Band Parametric
• EQ Parameters: 1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable), 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz, 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
• Graphic EQ: 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
• Filters: High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
• Solo/Mute: Mute, PFL per Input Channel, Bus, Master
• Built-In Effects: Reverb, Stereo Delay (Tap), Reverb (Gated), ADT, 2x Chorus, Flanger, Phaser
• Audio Delay: Adjustable Up to 682 ms
• Automatic Mic Mixing: Yes

Digital Audio

• Sample Rates: 96 kHz, AES3 Output: 44.1 / 48 / 88.2 / 96 kHz, Stereo Record: 96 kHz, Stereo Playback: 44.1 / 48 / 96 kHz, Multitrack Playback/Multitrack Record: 96 kHz
• Bit Depth: Up to 96-Bit, Stereo Record: 24-Bit, Stereo Playback: 16 / 24-Bit, Multitrack Playback, Multitrack Record: 24-Bit

Performance

• Frequency Response: 20 Hz to 20 kHz +0/-0.5 dB
• Max Input Level: Mic/Line Input: +30 dBu, Aux Input: +22 dBu (+4 dBu) / +18 dBu (0 dBu)
• Analog Dynamic Range: 112 dB
• I/O Impedance: 1/4", XLR Output: < 75 Ohms, AES3 Output: 110 Ohms, Aux Input: > 7 Kilohms, Line/Mic Input: > 5 Kilohms
• Noise Floor: -90 dBu (with Inputs Muted)
• THD+N: 0.006% at Unity Gain, Mic/Line Input to AES3 Output: 0.002% at Unity Gain, 0.003% at +30 dB Gain
• Signal Generator: Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

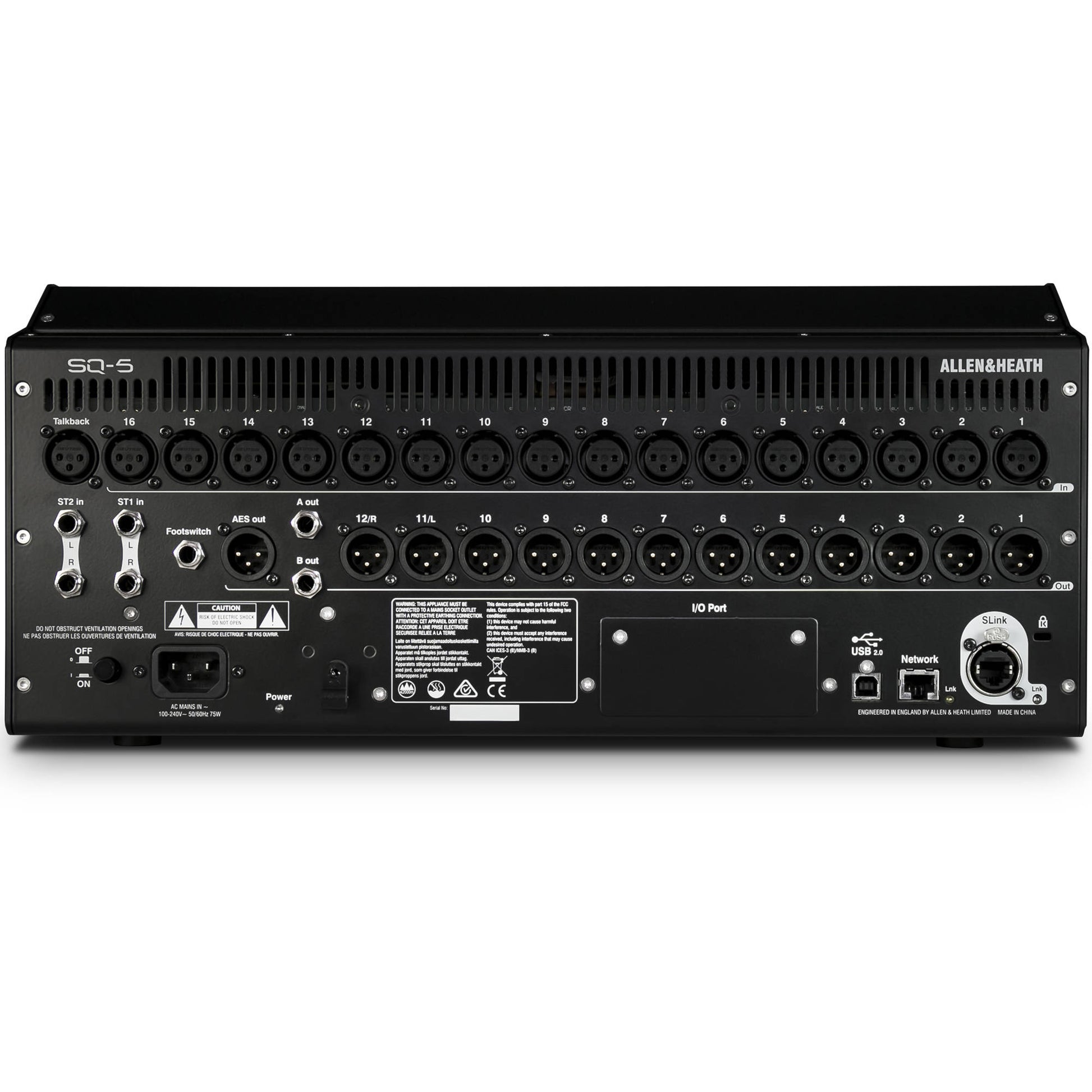

Connectivity

• Analog Inputs: 1x XLR Talkback Input, 16x XLR Balanced Mic/Line Input, 4x 1/4" TRS Balanced Aux Input (2 Stereo Pair, Half-Normalled), 1x 1/8" / 3.5 mm Unbalanced Aux Input
• Analog Outputs: 12x XLR Balanced Output, 2x 1/4" TRS Balanced Output
• Phantom Power: +48 V
• Digital I/O: 1x RJ45 (Network), 1x XLR AES3 Output, 1x etherCON (I/O)
• MIDI I/O: No
• USB I/O: 1x USB-A 2.0 (External Memory), 1x USB-B 2.0 (Audio Streaming)
• Expansion Ports: 1x I/O Card
• Wireless: No

Mobile App

• Compatible: Yes: Android & iOS
• App Name: SQ MixPad
• Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup

Recording

• Max Multitrack Recording: 16 Tracks
• Media Support: USB Drive
• File Format Support: WAV

Compatibility

• OS Compatibility: Computer: Windows 10 or Later / macOS 10.14 to 11, Mobile: Android/iOS
• OS Compatibility: Windows 10 (64-Bit Only), macOS 10.14 to 11 (64-Bit Only)
• Mobile Device Compatibility: Android Smartphone, Android Tablet, iPad, iPhone

Power

• Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

• Rack Mountable: Yes
• Operating Conditions: 32 to 104°F / 0 to 40°C
• Dimensions: 17.3 x 20.3 x 7.8" / 43.9 x 51.6 x 19.8 cm
• Weight: 23.1 lb / 10.5 kg

Packaging Info

• Package Weight: 30.3 lb
• Box Dimensions (L x W x H): 27 x 24 x 14.5"
