Key Specifications

Maximum I/O Capacity

48 Inputs / 36 Outputs

Number of Analog Input Channels

No

Number of Mic Preamps

16

Number of Analog Output Channels

14

Mix Routing

8× Stereo FX Return

Groups

8× Mute Group, 8× DCA Group

Presets

Yes

Display

9" Touchscreen

Faders & Level Adjustment

17× 3.9" (100 mm) Fader

Meters

Main Meter: 2× 12-Segment LED
Channel Meter: Single LED

Signal Processing

Gain / Trim Range

Line: ±24 dB (Stereo Channels)
Line/Mic: up to +60 dB (1 dB Steps)

Input Pad

-20 dB

Input Polarity

Normal / Reverse

Dynamic Processing

Input Channels: Compressor, Gate
Master: Compressor, Limiter

EQ

FX Returns: 4-Band Parametric

EQ Parameters

HF Shelf: ±15 dB at 20 Hz–20 kHz (Shelf/Bell)
2× MF Notch/Peak: ±15 dB at 20 Hz–20 kHz
LF Shelf: ±15 dB at 20 Hz–20 kHz (Shelf/Bell)

Graphic EQ

28-Band 1/3 Octave, ±12 dB, 31 Hz–16 kHz

Filters

High-Pass: 20 Hz–2 kHz, 12 dB/Octave

Solo / Mute

Mute, PFL per Input Channel, Bus, Master

Built-In Effects

Reverb, Stereo Delay (Tap), Gated Reverb, ADT, 2× Chorus, Flanger, Phaser

Audio Delay

Adjustable up to 682 ms

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

96 kHz
AES3 Output: 44.1 / 48 / 88.2 / 96 kHz
Stereo Record: 96 kHz
Stereo Playback: 44.1 / 48 / 96 kHz
Multitrack Playback / Recording: 96 kHz

Bit Depth

Up to 96-Bit
Stereo Record: 24-Bit
Stereo Playback: 16 / 24-Bit
Multitrack Playback / Recording: 24-Bit

Performance

Frequency Response

20 Hz–20 kHz ±0.5 dB

Maximum Input Level

Mic/Line Input: +30 dBu (Pad Engaged)
Aux Input: +22 dBu (+4 dBu), +18 dBu (0 dBu)

Analog Dynamic Range

112 dB

I/O Impedance

1/4", XLR Output: <75 Ohms
AES3 Output: 110 Ohms
Aux Input: >7 Kilohms
Mic Input: >4 Kilohms
Line Input: >6 Kilohms

Noise Floor

-90 dBu (Inputs Muted)

THD+N

0.006% at Unity Gain
Mic/Line to AES3: 0.0015% at Unity Gain (0 dBu, -96 dB, 20 Hz–20 kHz)
0.003% at +30 dB Gain (20 Hz–20 kHz, +30 dBu Input, 1 kHz)

Signal Generator

Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

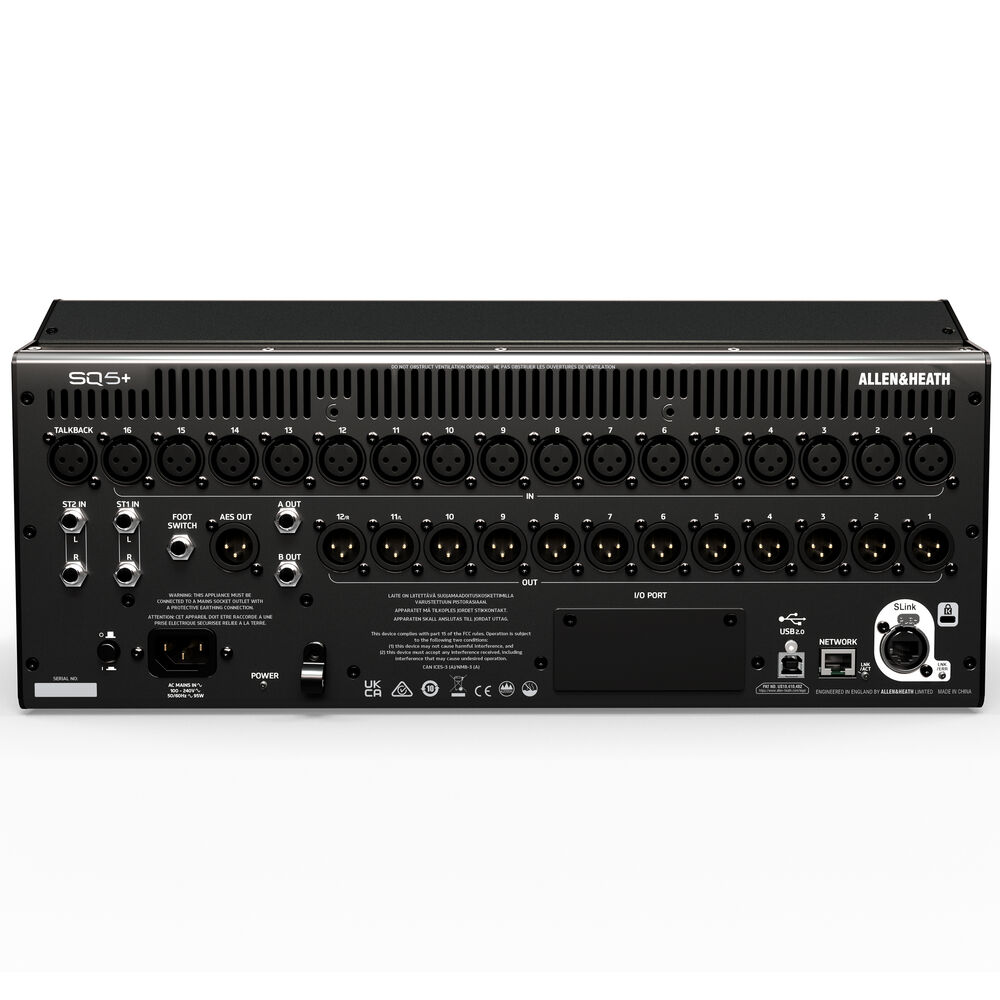

Connectivity

Analog Inputs

1× XLR Talkback Input
16× XLR Balanced Mic/Line Inputs
4× 1/4" TRS Balanced Aux Inputs (2 Stereo Pair, Half-Normalled)
1× 1/8" (3.5 mm) Unbalanced Aux Input

Analog Outputs

12× XLR Balanced Outputs
2× 1/4" TRS Balanced Outputs

Phantom Power

+48 V

Digital I/O

1× RJ45 (Network)
1× XLR AES3 Output
1× etherCON (I/O)

MIDI I/O

No

USB I/O

1× USB-A 2.0 (External Memory)
1× USB-B 2.0 (Audio Streaming)

Expansion Ports

1× I/O Card

Wireless

No

Recording

Maximum Multitrack Recording

16 Tracks

Media Support

USB Drive

File Format Support

WAV

Compatibility

OS Compatibility

Windows 10 or Later
macOS 10.14 to 11
Android
iOS

Mobile Device Compatibility

Android Smartphone
Android Tablet
iPad
iPhone

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

Yes

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

17.3 × 20.3 × 7.8" / 43.9 × 51.6 × 19.8 cm

Weight

24.7 lb / 11.2 kg
