Key Specifications
|
|
Mixer
|
- Max I/O Capacity: 48x Input / 18x Output
- Number of Analog Input Channels: 48
- Number of Mic Preamps: 32
- Number of Analog Output Channels: 18
- Mix Routing: 8x Stereo FX Return
- Groups: 8x Mute Group, 8x DCA Group
- Presets: 8x Preset (User)
- Display: 7" Touchscreen
- Faders & Level Adjustment: 32x 3.9" / 100 mm Motorized Fader, 8 FX Knob
- Meters: Main Meter: 2x 12-Segment LED, Channel Meter: Single LED
|
|
Signal Processing
|
- Gain/Trim Range: Line: ±24 dB (Stereo Channels), Line/Mic: -5 dB to +60 dB (in 1 dB Steps)
- Input Pad: -20 dB
- Input Polarity: Normal/Reverse
- EQ: FX Returns: 4-Band Parametric
- EQ Parameters: 1x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable), 2x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz, 1x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
- Graphic EQ: 28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
- Filters: High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
- Solo/Mute: Mute per Input Channel
- Built-In Effects: Reverb, Stereo Delay (Tap), Reverb (Gated), ADT, 2x Chorus, Flanger, Phaser
- Audio Delay: Adjustable Up to 682 ms
- Automatic Mic Mixing: Yes
|
|
Digital Audio
|
- Sample Rates: 96 kHz, AES3 Output: 44.1 / 48 / 88.2 / 96 kHz, Stereo Record: 96 kHz, Stereo Playback: 44.1 / 48 / 96 kHz, Multitrack Playback/Multitrack Record: 96 kHz
- Bit Depth: Up to 96-Bit, Stereo Record: 24-Bit, Stereo Playback: 16 / 24-Bit, Multitrack Playback, Multitrack Record: 24-Bit
|
|
Performance
|
- Frequency Response: 20 Hz to 20 kHz +0/-0.5 dB
- Max Input Level: Mic/Line Input: +30 dBu, Aux Input: +22 dBu (+4 dBu) / +18 dBu (0 dBu)
- Analog Dynamic Range: 112 dB
- I/O Impedance: 1/4", XLR Output: < 75 Ohms, AES3 Output: 110 Ohms, Aux Input: > 7 Kilohms, Line/Mic Input: > 5 Kilohms
- Noise Floor: -90 dBu (with Inputs Muted)
- THD+N: 0.006% at Unity Gain, Mic/Line Input to AES3 Output: 0.002% at Unity Gain, 0.003% at +30 dB Gain
- Signal Generator: Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)
|
|

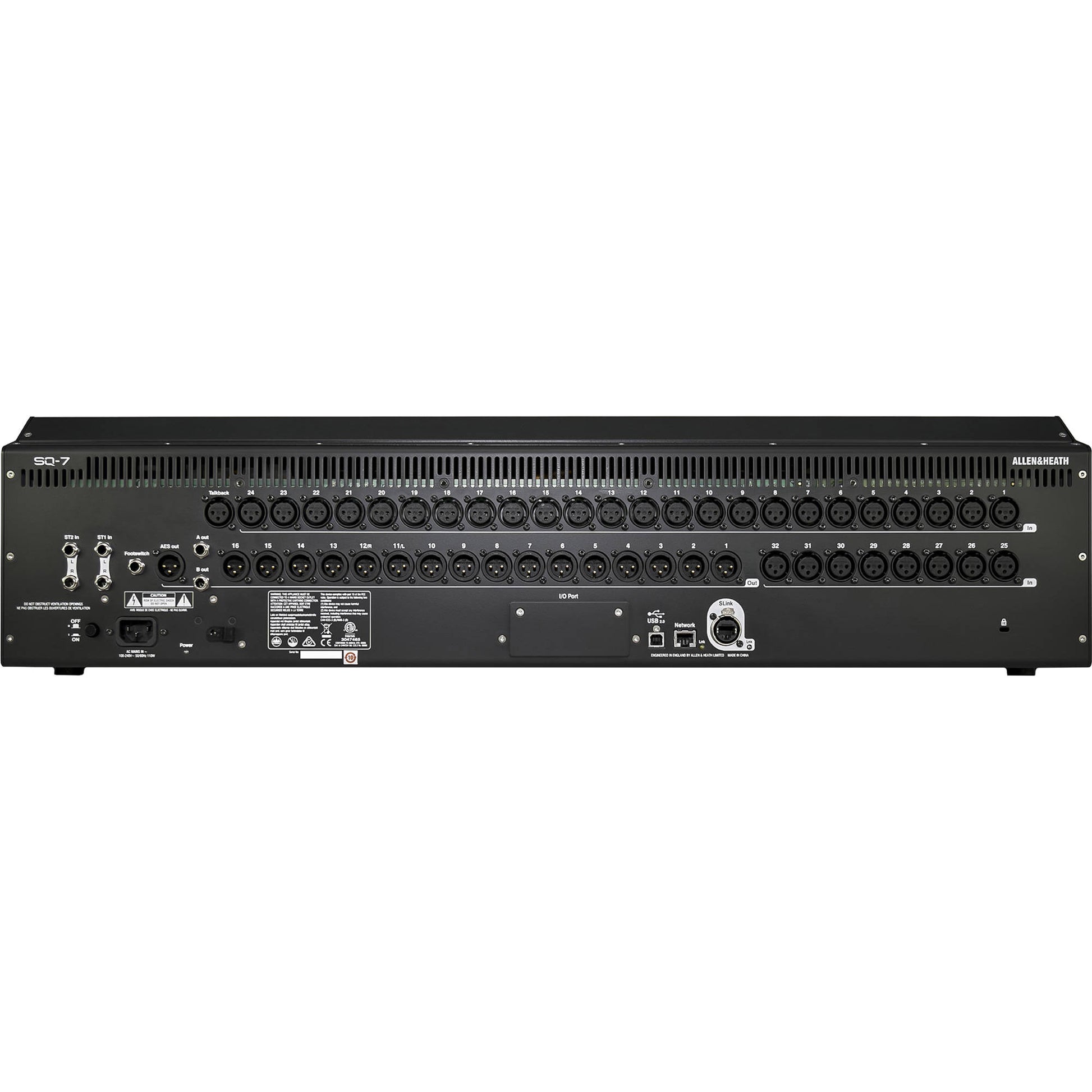

Connectivity
|
- Analog Inputs: 1x XLR Talkback Input, 32x XLR Balanced Mic/Line Input, 4x 1/4" TRS Balanced Aux Input (2 Stereo Pairs, Half-Normalled), 1x 1/8" / 3.5 mm Unbalanced Aux Input
- Analog Outputs: 16x XLR Balanced Output, 2x 1/4" TRS Balanced Output
- Phantom Power: +48 V
- Digital I/O: 1x RJ45 (Network), 1x XLR AES3 Output, 1x etherCON (I/O)
- MIDI I/O: No
- USB I/O: 1x USB-A (External Memory), 1x USB-B 2.0 (Audio Streaming)
- Expansion Ports: 1x I/O Card
- Wireless: No
|
|
Recording
|
- Max Multitrack Recording: 16 Tracks
- File Format Support: WAV
|
|
Compatibility
|
- OS Compatibility: Windows / macOS
|
|
Power
|
- Input Power: 100 to 240 VAC, 50 / 60 Hz
|
|
Physical
|
- Rack Mountable: No
- Operating Conditions: 32 to 104°F / 0 to 40°C
- Dimensions: 31.7 x 20.3 x 7.8" / 805 x 516 x 198 mm
- Weight: 39.3 lb / 17.8 kg
|
|
Packaging Info
|
- Package Weight: 48.5 lb
- Box Dimensions (L x W x H): 38.25 x 27.3 x 14"
|
