Key Specifications

Maximum I/O Capacity

48 Inputs / 18 Outputs

Number of Analog Input Channels

48

Number of Mic Preamps

32

Number of Analog Output Channels

18

Mix Routing

8× Stereo FX Return

Groups

8× Mute Group, 8× DCA Group

Presets

8× User Presets

Display

9" Touchscreen

Faders & Level Adjustment

32× 3.9" / 100 mm Motorized Channel Faders
1× 3.9" / 100 mm Motorized Master Fader
8× FX Knobs

Meters

Main Meter: 2× 12-Segment LED
Channel Meter: Single LED

Signal Processing

Gain / Trim Range

Line: ±24 dB (Stereo Channels)
Line/Mic: -5 dB to +60 dB (1 dB Steps)

Input Pad

-20 dB

Input Polarity

Normal / Reverse

EQ

FX Returns: 4-Band Parametric

EQ Parameters

HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
2× MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz
LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)

Graphic EQ

28-Band 1/3 Octave, ±12 dB, 31 Hz to 16 kHz

Filters

High-Pass: 20 Hz to 2 kHz, 12 dB/Octave

Solo / Mute

Mute per Input Channel

Built-In Effects

Reverb, Stereo Delay (Tap), Gated Reverb, ADT, 2× Chorus, Flanger, Phaser

Audio Delay

Adjustable up to 682 ms

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

96 kHz
AES3 Output: 44.1 / 48 / 88.2 / 96 kHz
Stereo Record: 96 kHz
Stereo Playback: 44.1 / 48 / 96 kHz
Multitrack Playback / Record: 96 kHz

Bit Depth

Up to 96-Bit
Stereo Record: 24-Bit
Stereo Playback: 16 / 24-Bit
Multitrack Playback / Record: 24-Bit

Performance

Frequency Response

20 Hz to 20 kHz (±0.5 dB)

Maximum Input Level

Mic/Line Input: +30 dBu
Aux Input: +22 dBu (+4 dBu), +18 dBu (0 dBu)

Analog Dynamic Range

112 dB

I/O Impedance

1/4", XLR Output: <75 Ohms
AES3 Output: 110 Ohms
Aux Input: >7 Kilohms
Line/Mic Input: >5 Kilohms

Noise Floor

-90 dBu (Inputs Muted)

THD+N

0.006% at Unity Gain
Mic/Line Input to AES3 Output: 0.0015% at Unity Gain (0 dBu, 20 Hz to 20 kHz, AES Direct Out, 1 kHz)
0.003% at +30 dB Gain (20 Hz to 20 kHz, AES Direct Out, +30 dBu Input, 1 kHz)

Signal Generator

Sine, White, Pink, or Band-Pass Noise (Assignable to Any Mix)

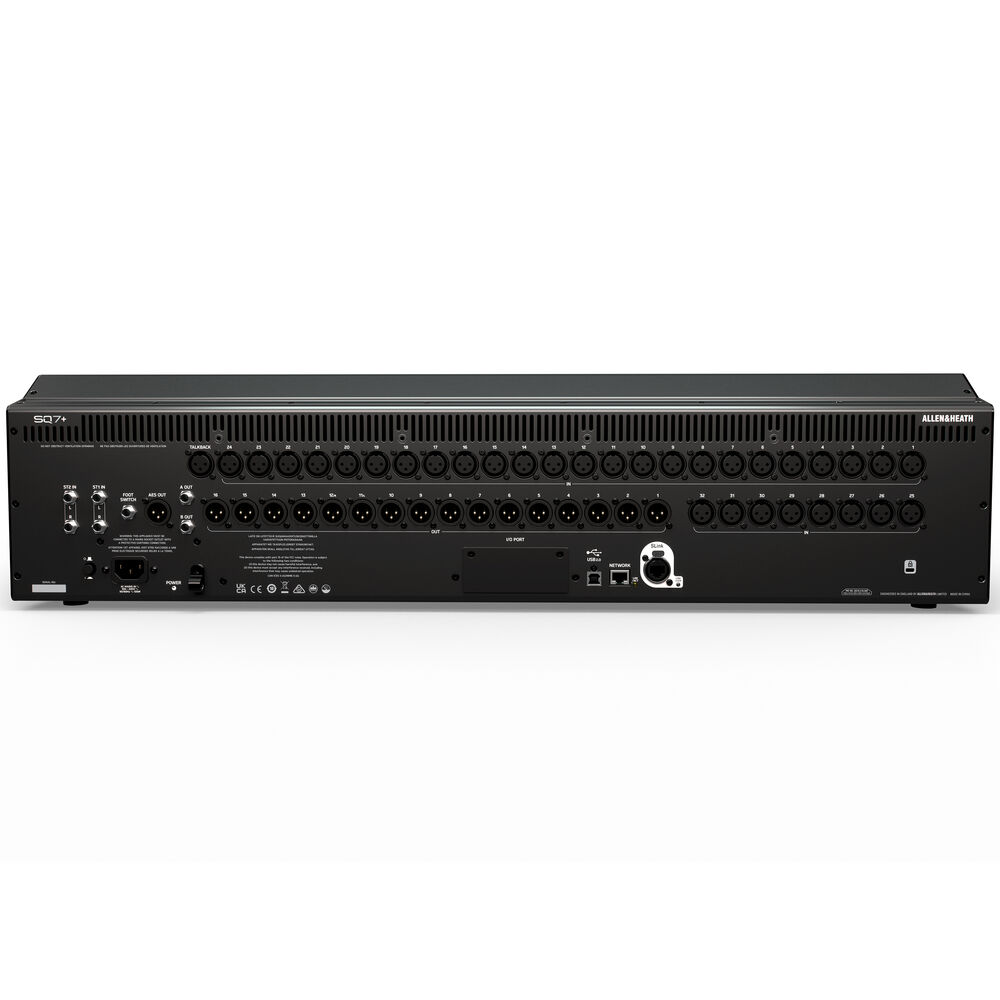

Connectivity

Analog Inputs

1× XLR Talkback Input
32× XLR Balanced Mic/Line Inputs
4× 1/4" TRS Balanced Aux Inputs (2 Stereo Pairs, Half-Normalled)
1× 1/8" (3.5 mm) Unbalanced Aux Input

Analog Outputs

16× XLR Balanced Outputs
2× 1/4" TRS Balanced Outputs

Phantom Power

+48 V

Digital I/O

1× RJ45 (Network)
1× XLR AES3 Output
1× etherCON (I/O)

MIDI I/O

No

USB I/O

1× USB-A (External Memory)
1× USB-B 2.0 (Audio Streaming)

Expansion Ports

1× I/O Card

Wireless

No

Recording

Maximum Multitrack Recording

16 Tracks

File Format Support

WAV

Compatibility

OS Compatibility

Windows / macOS

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

No

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

31.7 × 20.3 × 7.8" / 805 × 516 × 198 mm

Weight

40.6 lb / 18.4 kg
